Capacity: (depending on material) 30– 70 m³/h
Drive: electrical (connected load 16A) optional with petrol or diesel aggregate
Single trommel: Screening surface: 10 m², Outer diameter: 1200 mm, Trommel length: 3000 mm
Screen aperture: interchangeable, meshes from 2 to 120 mm
Application areas: Soil, Sand, Gravel, Stones, Compost, Woodchips, Green cuttings, Construction waste, Substitute fuels ,Slag, Coal, Glass,etc.
WTS1234 Mobile Compost Trommel Screen View All Compost Screening Equipment

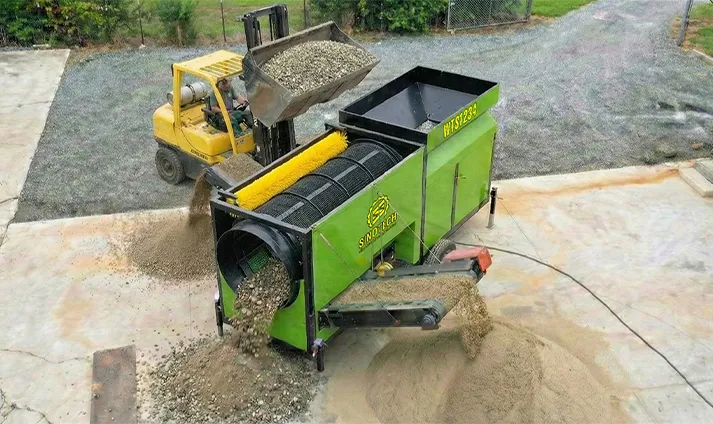

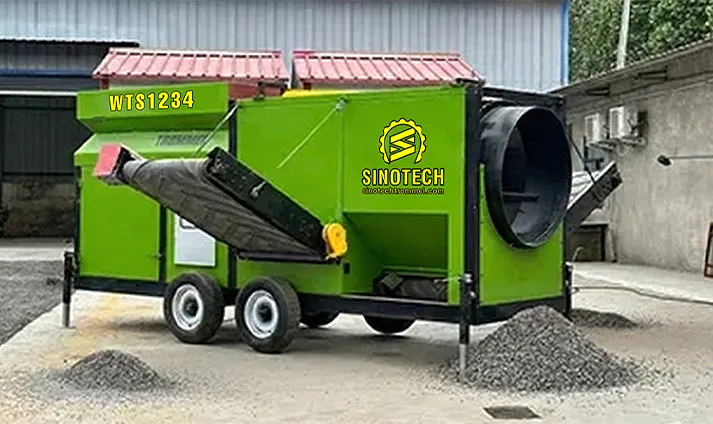

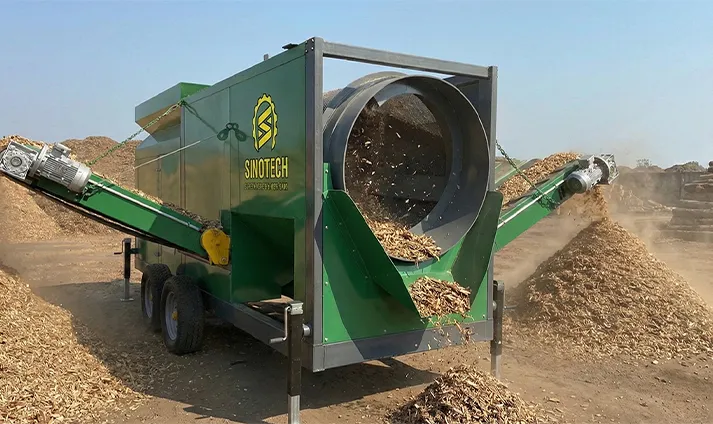

The WTS1234 compost trommel screen is a wheel-mounted, self-contained, portable screening plant designed to efficiently process topsoil, compost, and green waste. It features a rotating drum that is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the drum—undersized material passes through the screen apertures, while oversized material exits at the opposite end.
This model boasts a compact, unique construction that includes foldable belt conveyors for easy transport and handling. With the option to equip an onboard diesel generator set, the WTS1234 can seamlessly integrate into a mobile recycling line.
The WTS1234 comes standard with a fines conveyor and wheel-mounted mobility. SPIRAL DRUM OPTION: If you prefer a spiral-style drum over the traditional wire mesh design, SINOTECH has you covered with customizable configurations.
It is an excellent solution for screening topsoil, waste, compost, and especially moist or sticky materials. The rotational function of the screen drum aggressively agitates the raw material, making it highly effective at removing fines. Oversized debris falls out of the drum, while fines drop onto a transport conveyor for easy stockpiling.
The WTS1234 compost trommel screen is ideal for material classification and washing operations. This equipment offers numerous advantages, including simple installation and maintenance, easy operation, a low installation angle, clog-resistant design, minimal space requirements, low noise, reduced dust pollution, and highly stable screening efficiency.
Every machine is backed by our comprehensive warranty, lifetime online technical guidance, and worldwide spare parts ready to ship.
