Price: $3,000-5,000 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: 5-20m³/h
Diesel or Electric Power
Screening surface: 3.57m²
Weight: max. 1085kg
Application areas: Soil, Sand, Gravel, Stones, Compost, Woodchips, Green cuttings, Construction waste, Substitute fuels ,Slag, Coal, Glass, etc.
Factory Direct Shipping to Oceania, EU, and the US, Globally
Innovative Bottom Discharge Design for Simplified Material Flow & Compact Footprint.

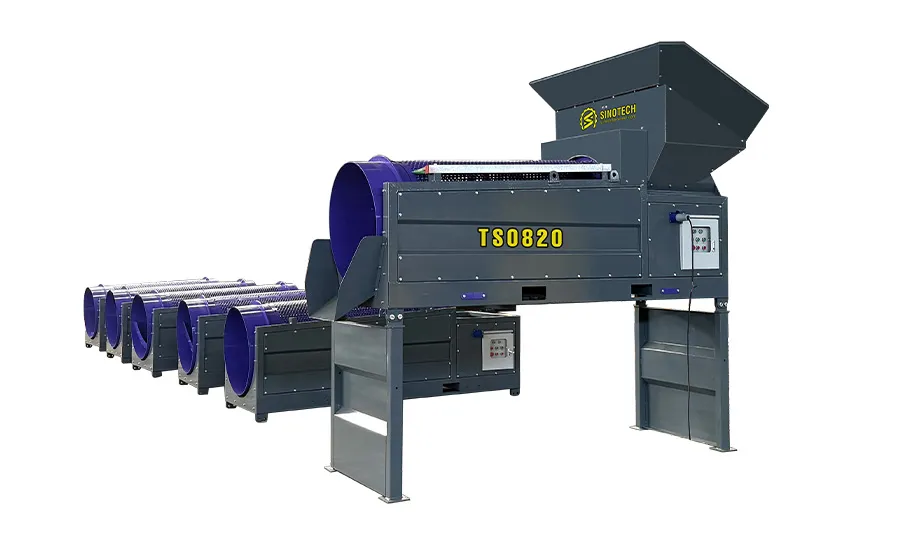

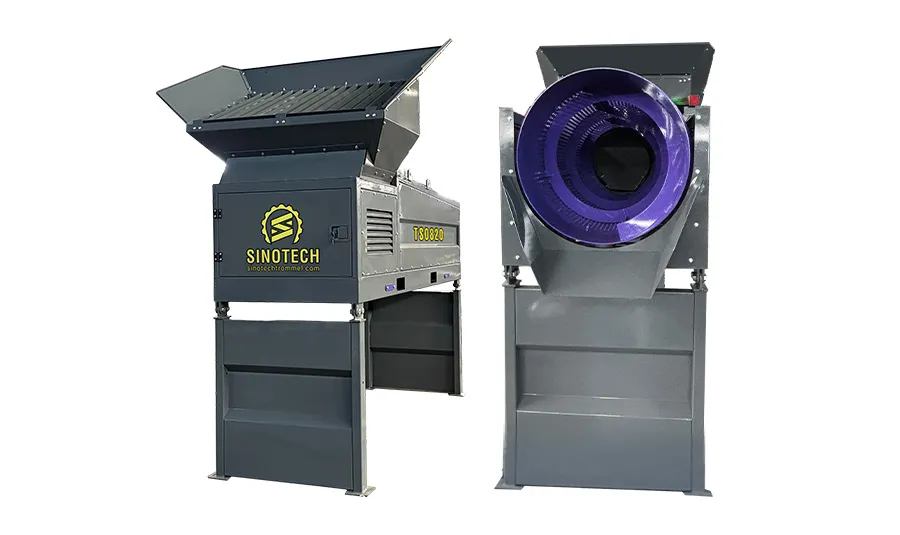

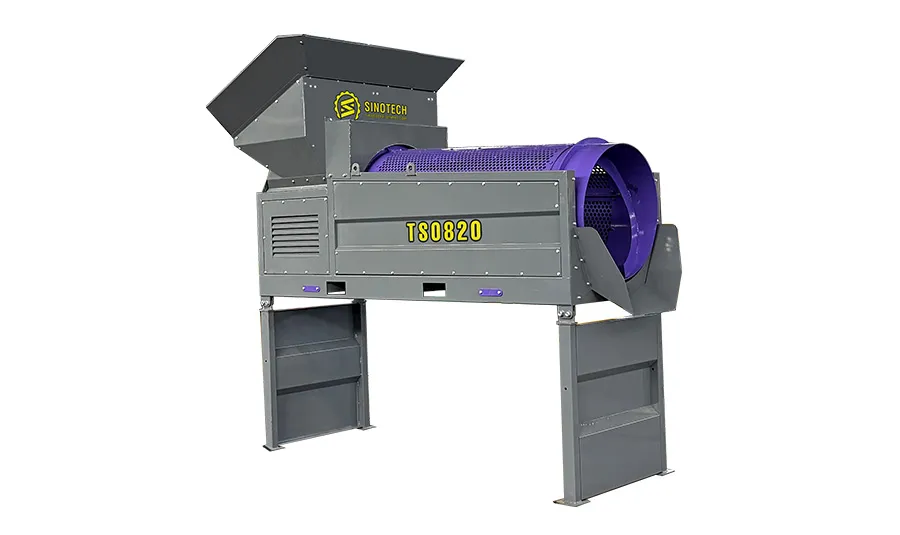

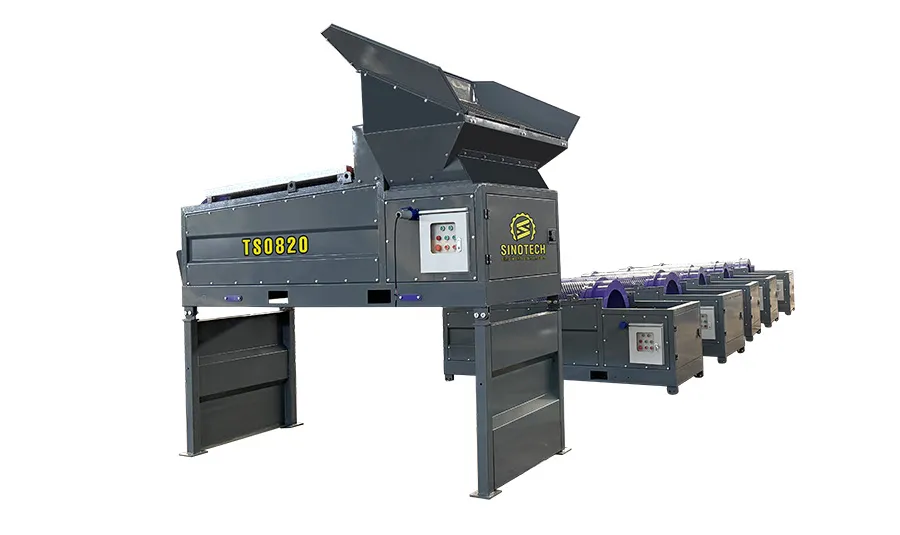

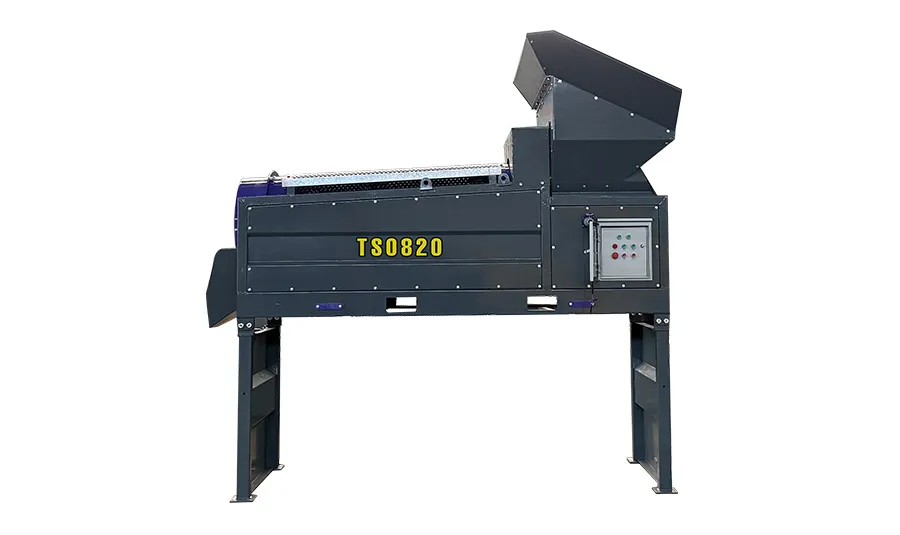

The Static Trommel Screen TS0820 is the smallest machine in this series, primarily composed of a hopper, drum, and base frame. A key feature is the integrated forklift mount, ensuring hassle-free transportation and positioning on site.
Its core advantage lies in its innovative bottom discharge design. By routing the fines directly out from beneath the drum, it simplifies material flow and minimizes the footprint. This design allows for easy integration with existing conveyors or receptacles and is perfect for processing wet, sticky materials that might clog traditional belts.
As a static alternative to the Wheeled 0820, the trommel is identically constructed but focuses on cost-efficiency. Its low weight and compact design make it quick to deploy for landscapers, construction companies, and municipalities seeking a reliable, low-maintenance solution.

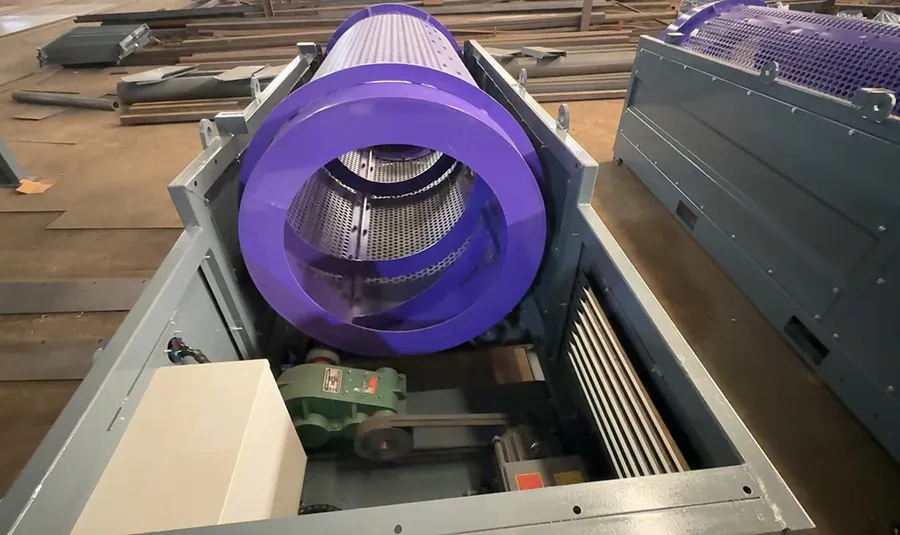

The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 5-20 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 800 | |
| Trommel length (mm) | 2000 | |
| Screening area approximately (m²) | ≈3.57 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 1680 |
| Feed hopper width (mm) | 880 | |
| Volume (m³) | ≈0.25 | |
| Transportation dimensions | Transportation status length (mm) | 2720 |
| Transportation status width (mm) | 1300 | |
| Transportation status height (mm) | 1350 | |
| Weight (kg) | ≈1085 | |
Space-Saving Efficiency: Compact design streamlines material flow for high output.
Lightweight & Portable: Easy to transport and position, ideal for direct loading or collecting material underneath.
Cost-Effective Solution: Low investment, perfect for small-scale projects requiring direct discharge.
Versatile Small-Scale Use: Ideal for screening soil, compost, and direct-loading light aggregates.
User-Friendly Setup: Simple controls for quick start and fast deployment on any site.
Fast Maintenance: Easy screen replacement minimizes downtime and maximizes operational hours.
