Price: $47,950-50,150 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 60-175m³/h
Screening surface: 30.79m²
Weight: approx. 16000kg
Processed materials: Compost, Gravel, Rock, Sand, Topsoil, Municipal waste, Wood, Woodchip
Factory Direct Shipping to Oceania, EU, and the US, Globally
High-Efficiency Mobile Screening Solutions for Mining, Construction & Waste Recycling — Handles Wet Materials with Ease.

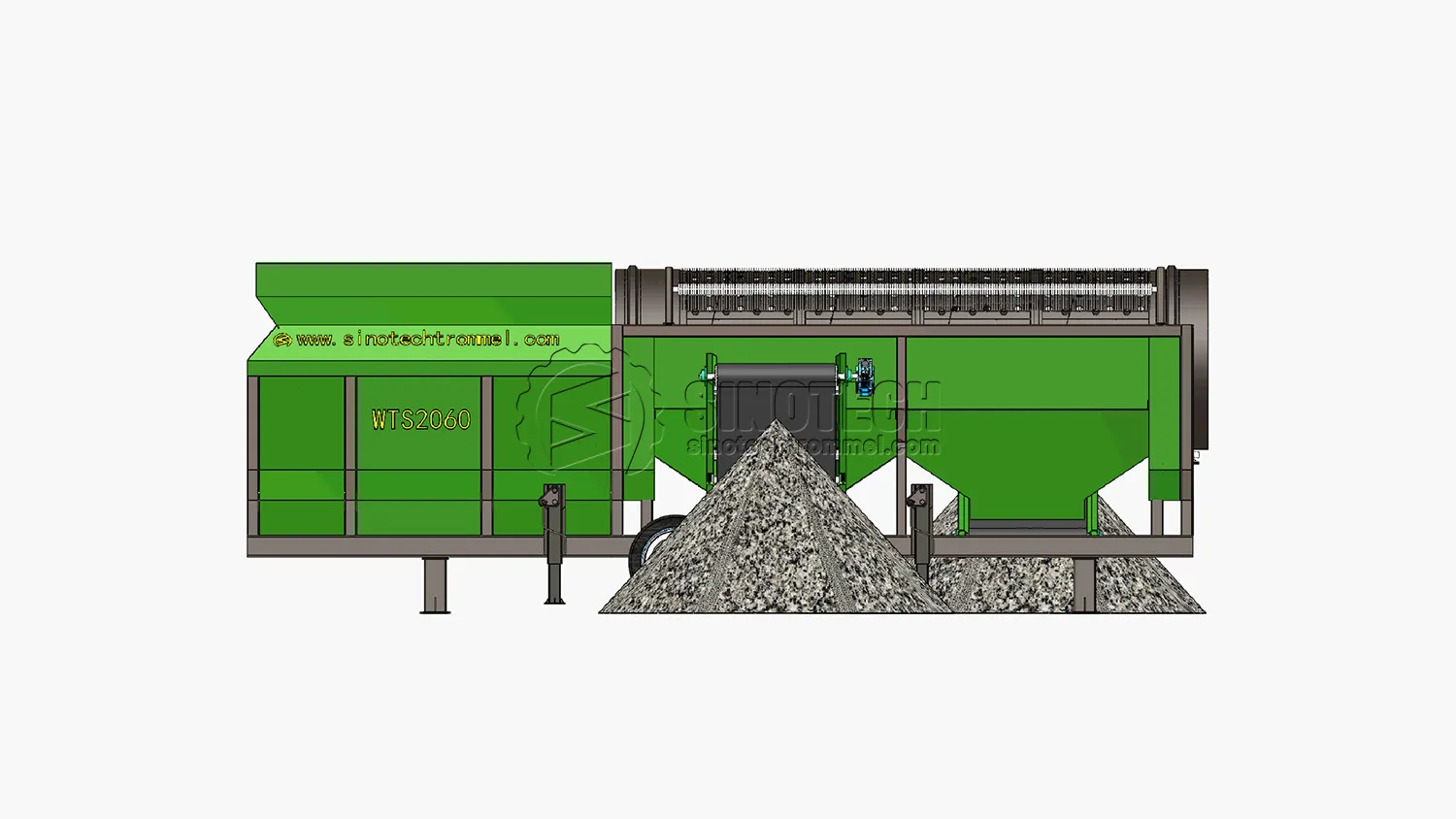

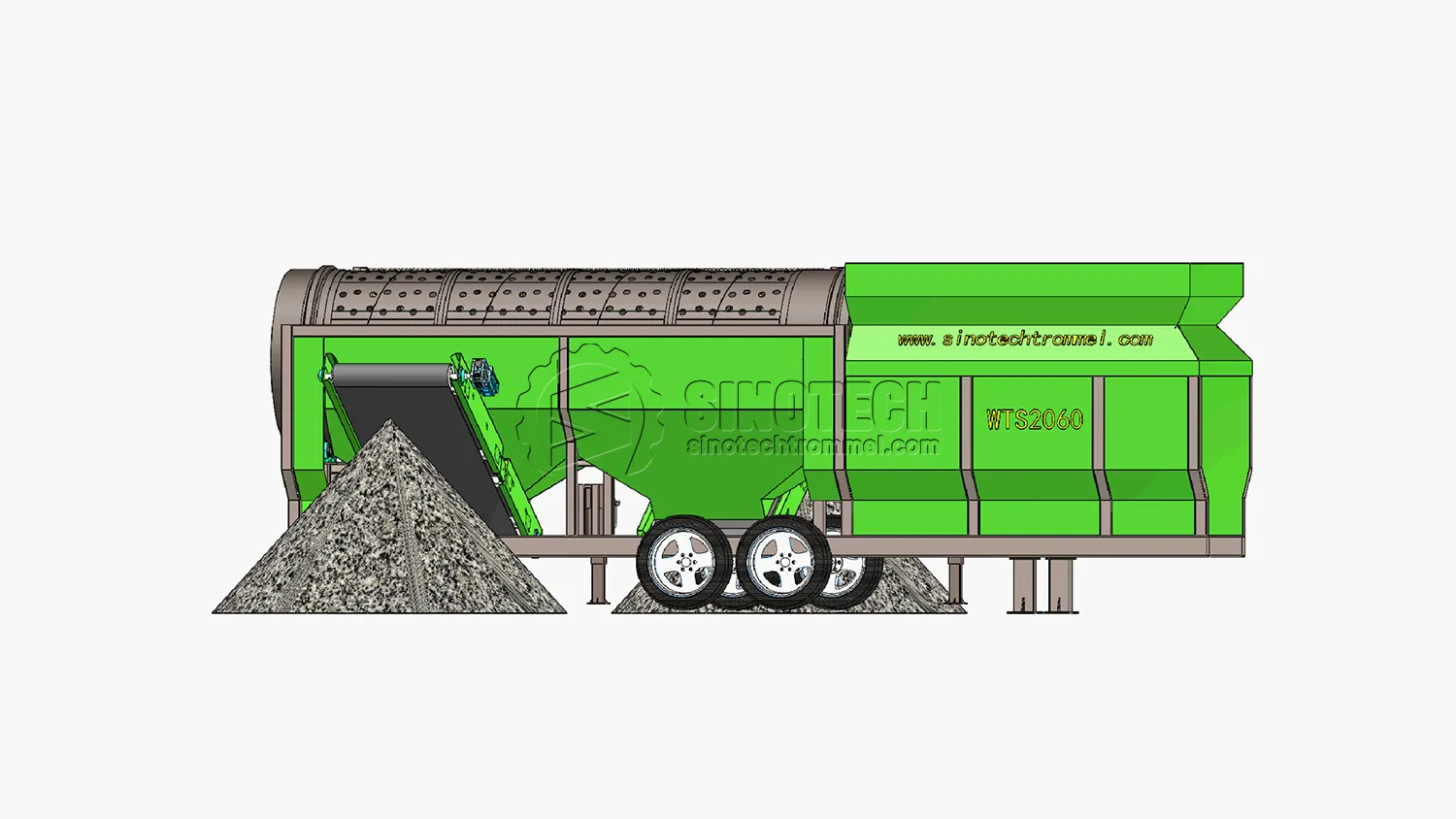

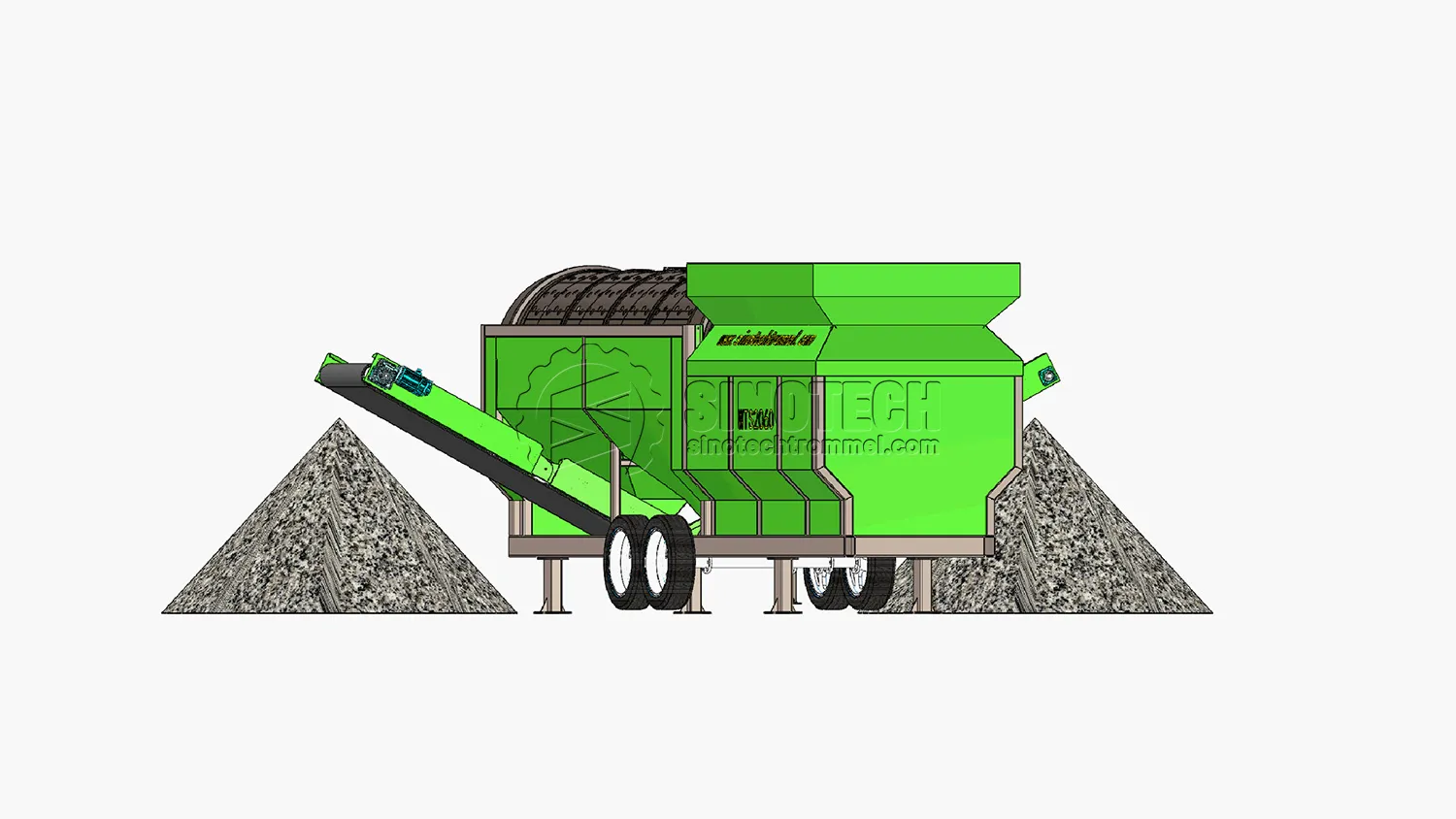

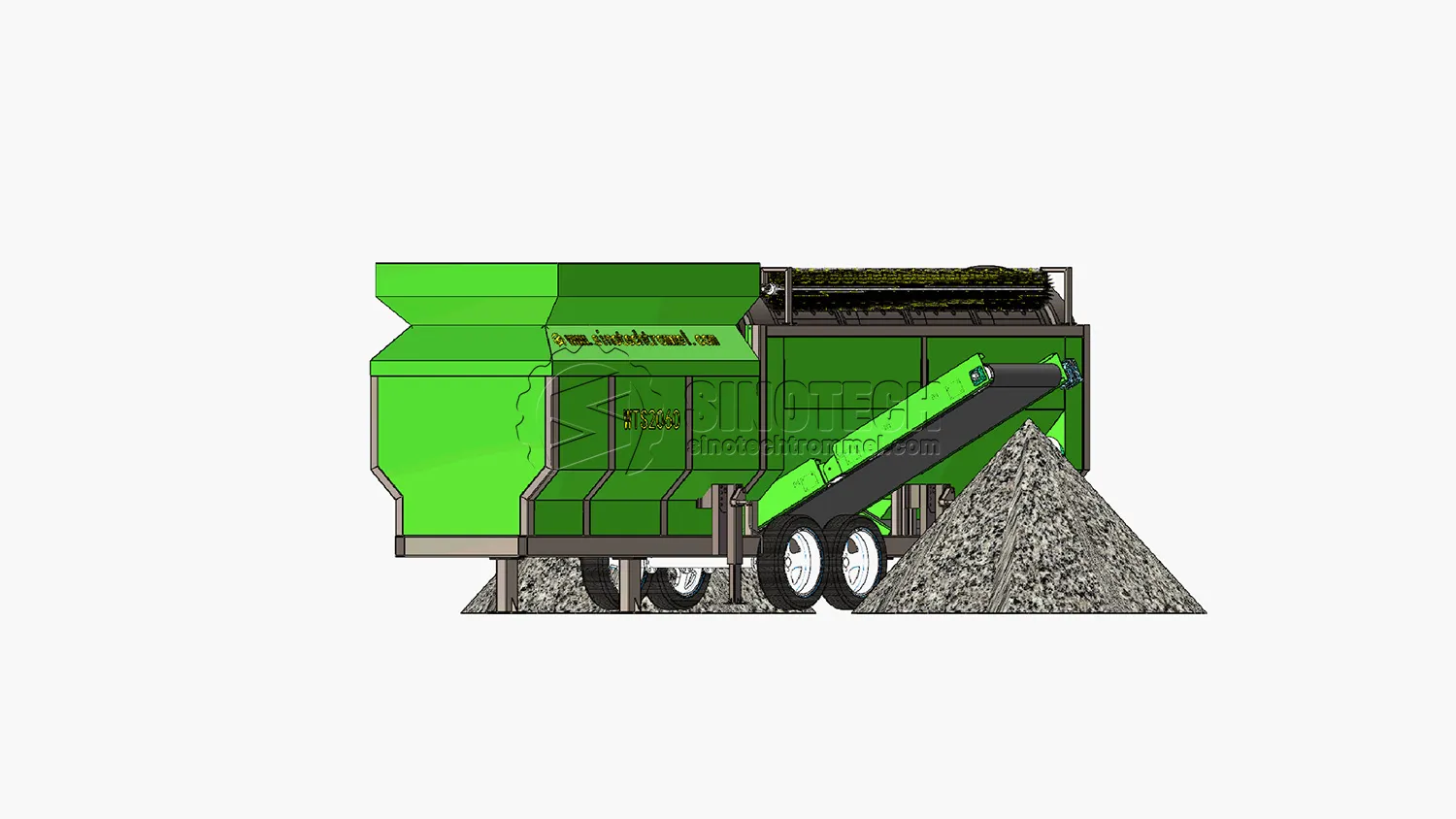

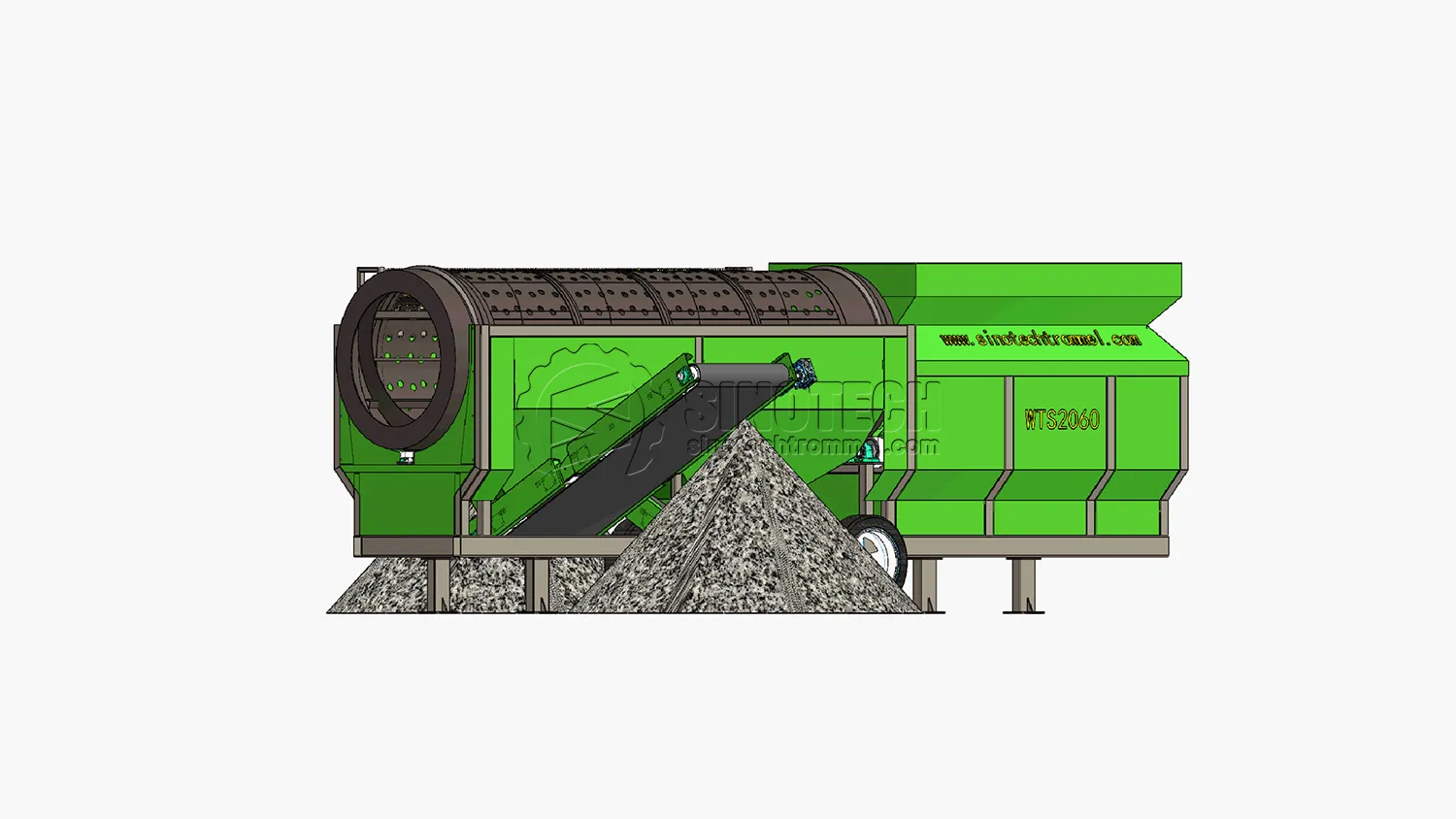

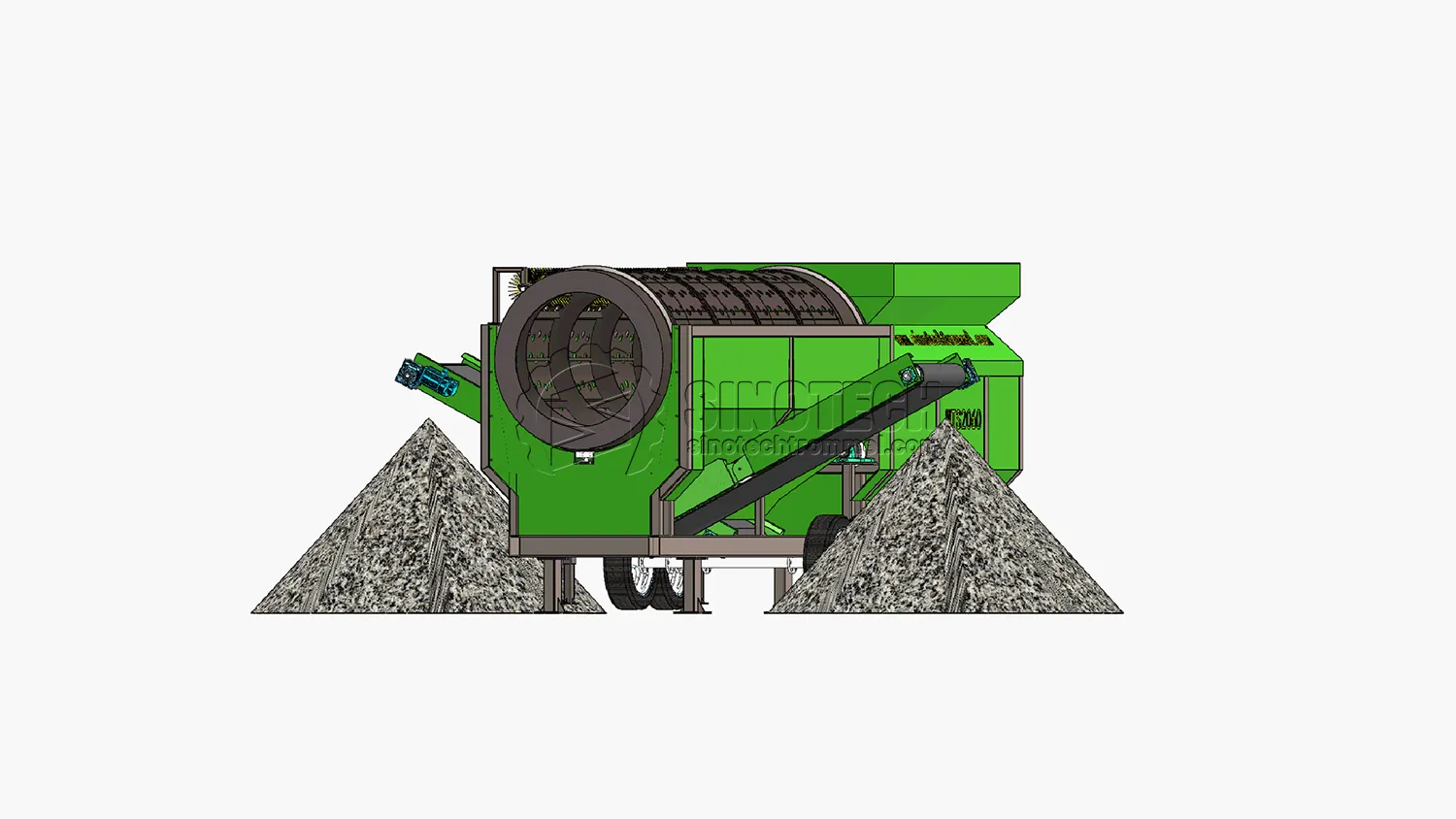

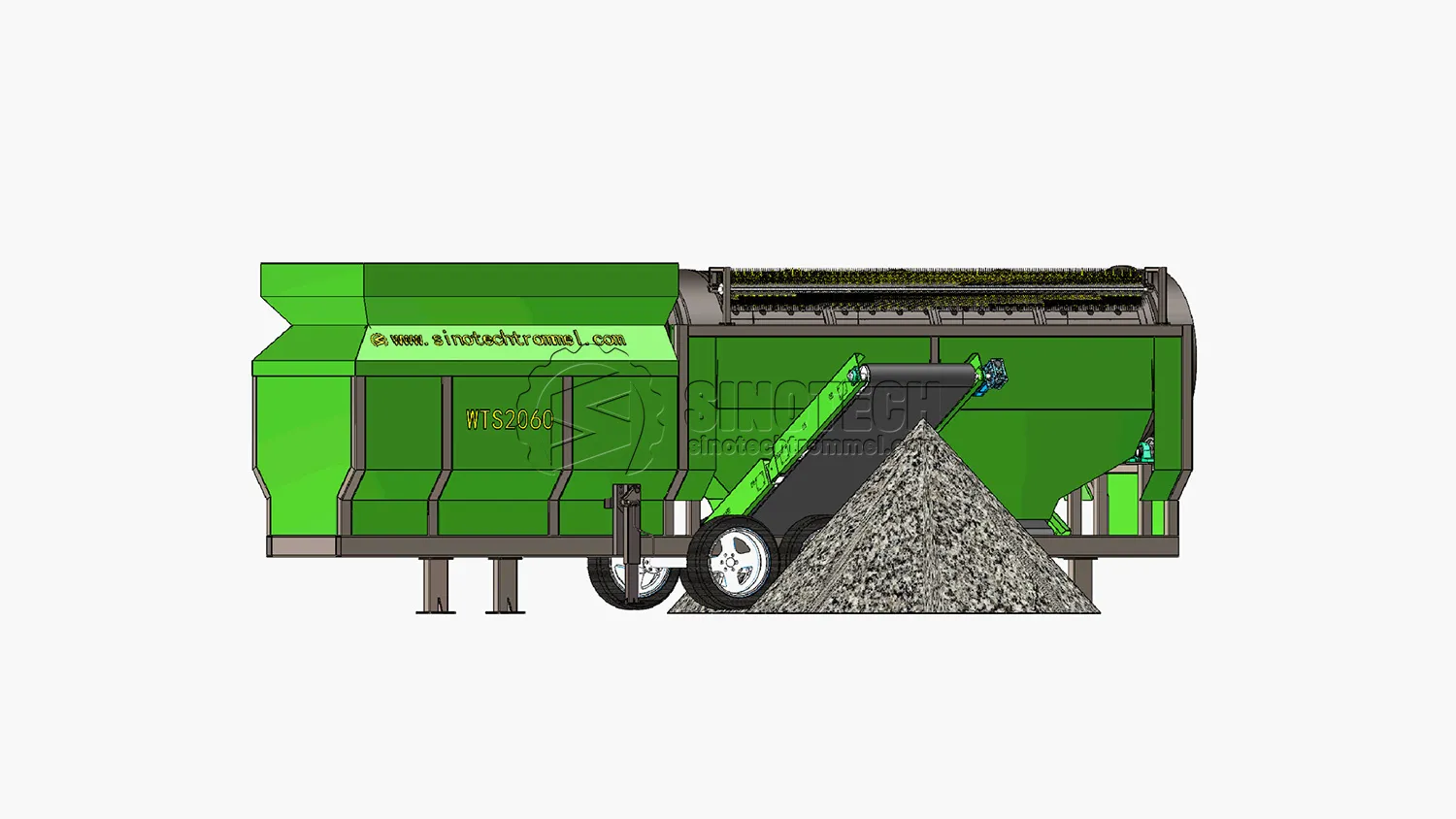

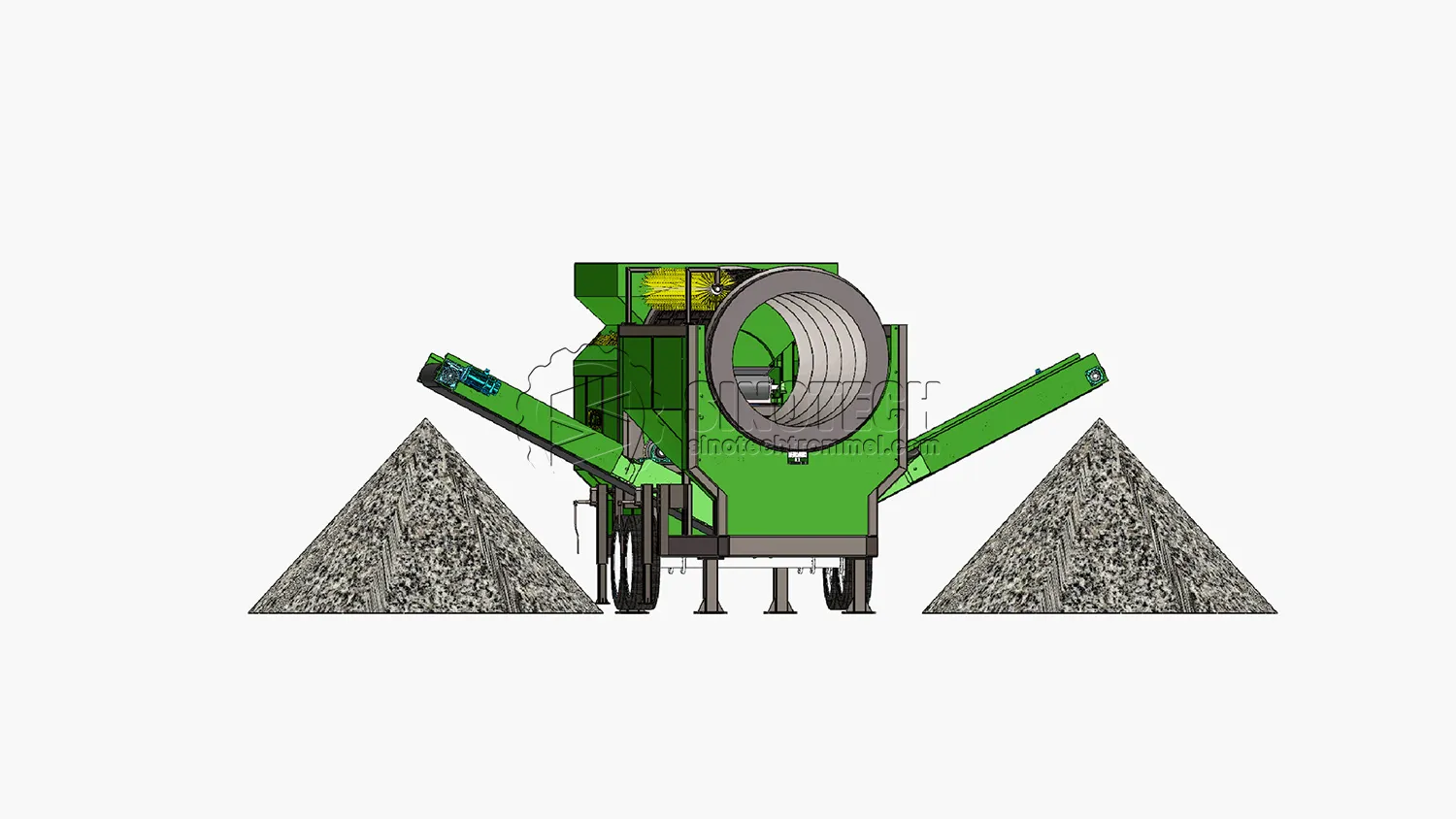

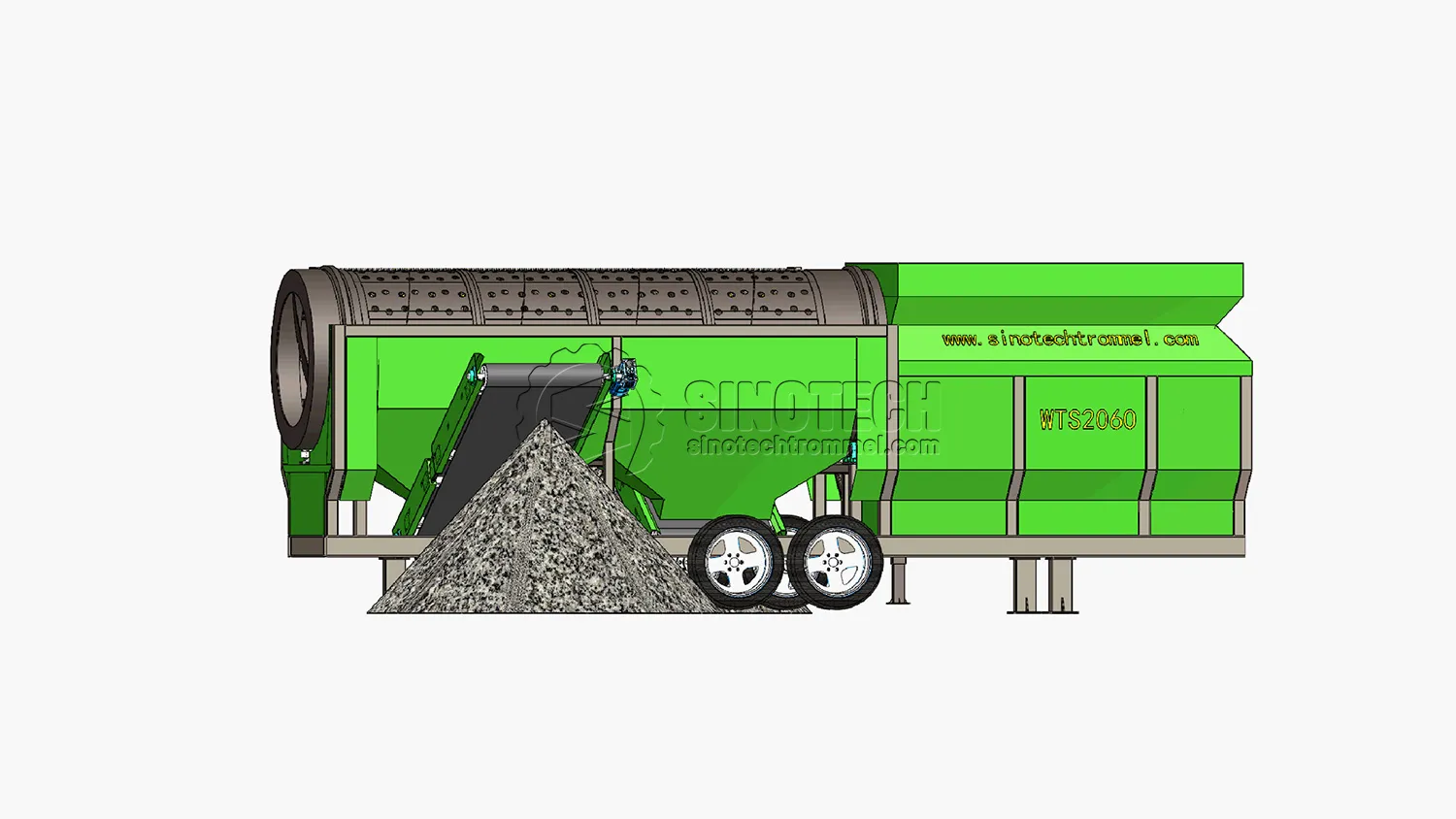

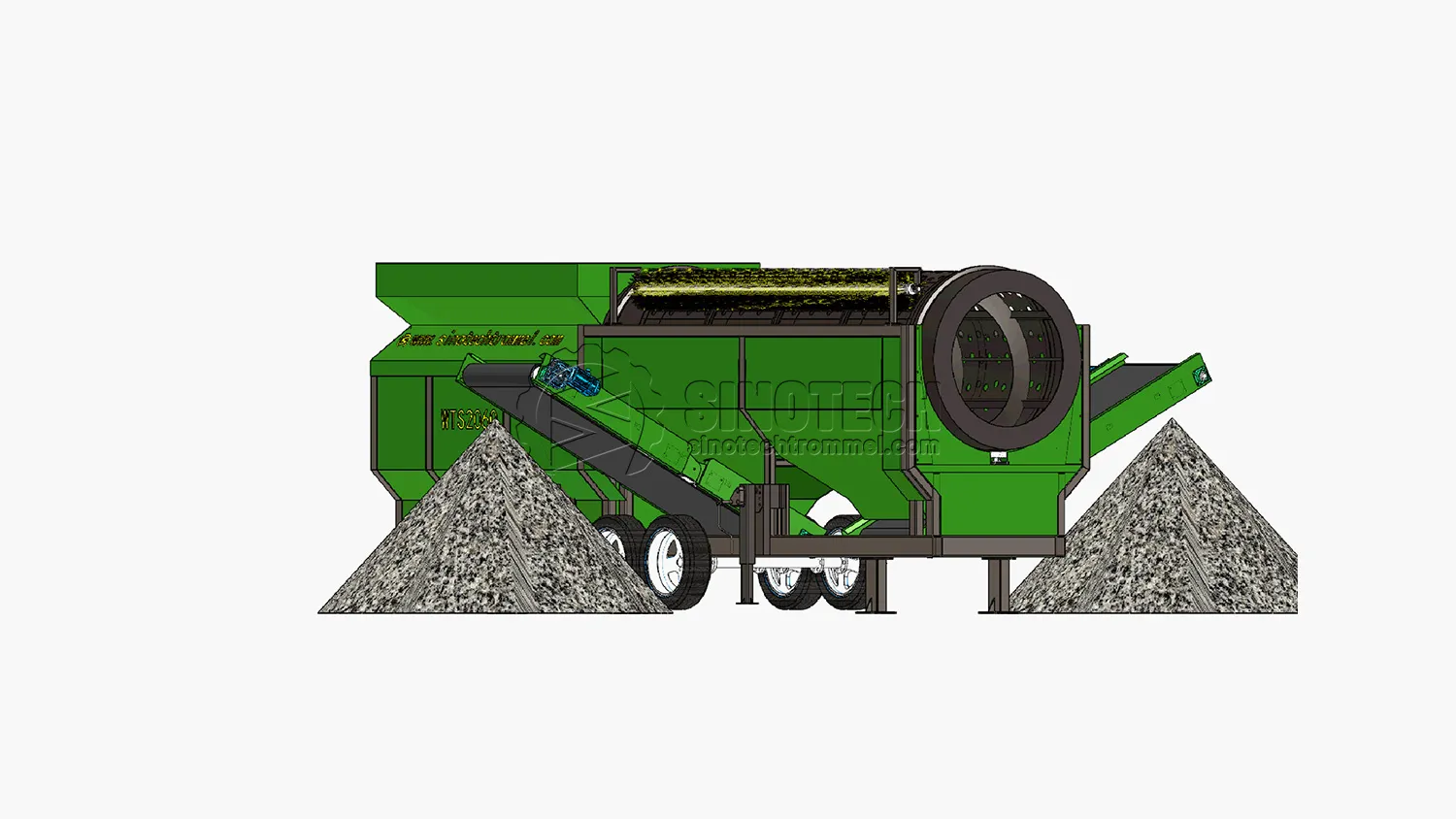

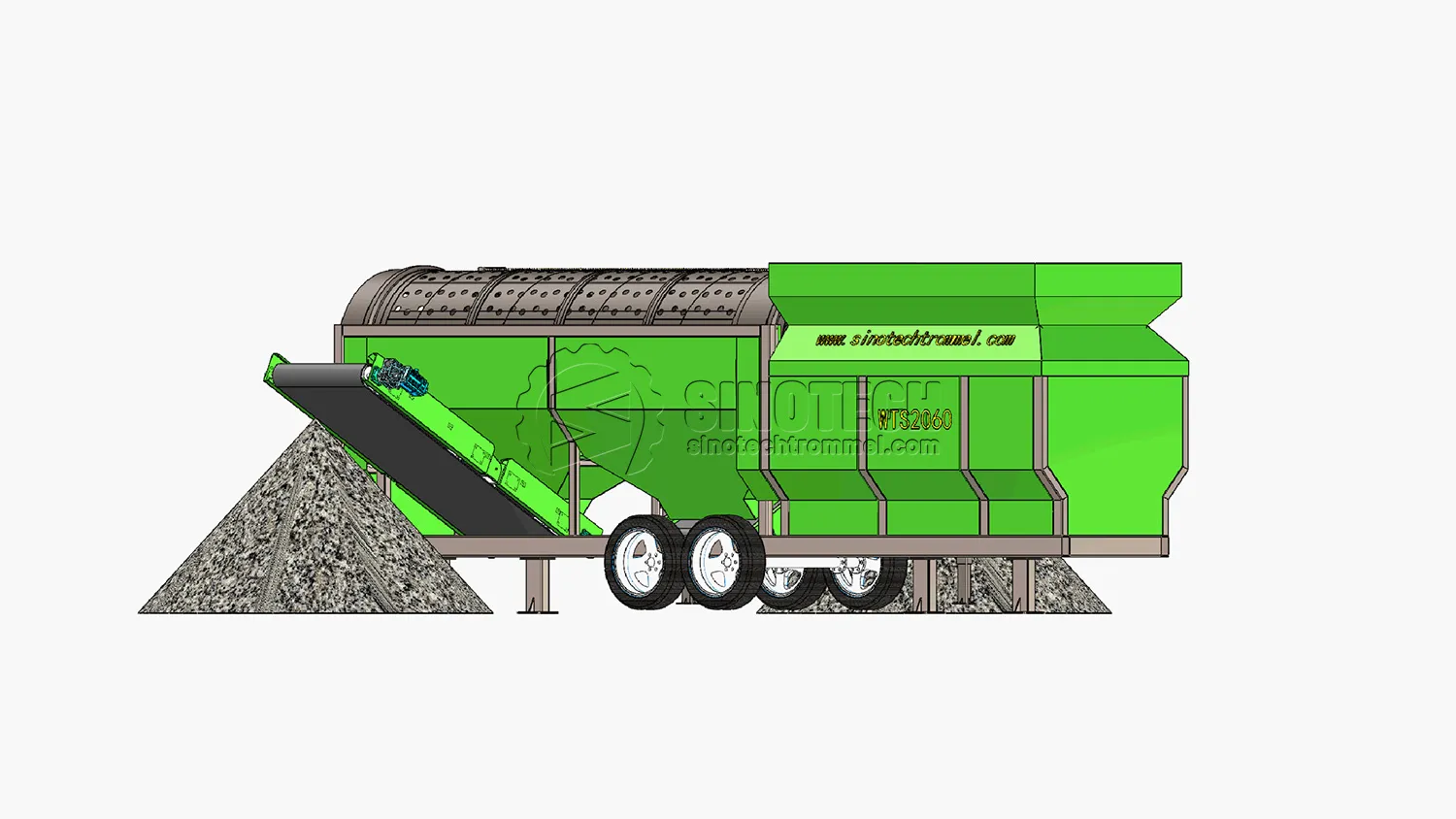

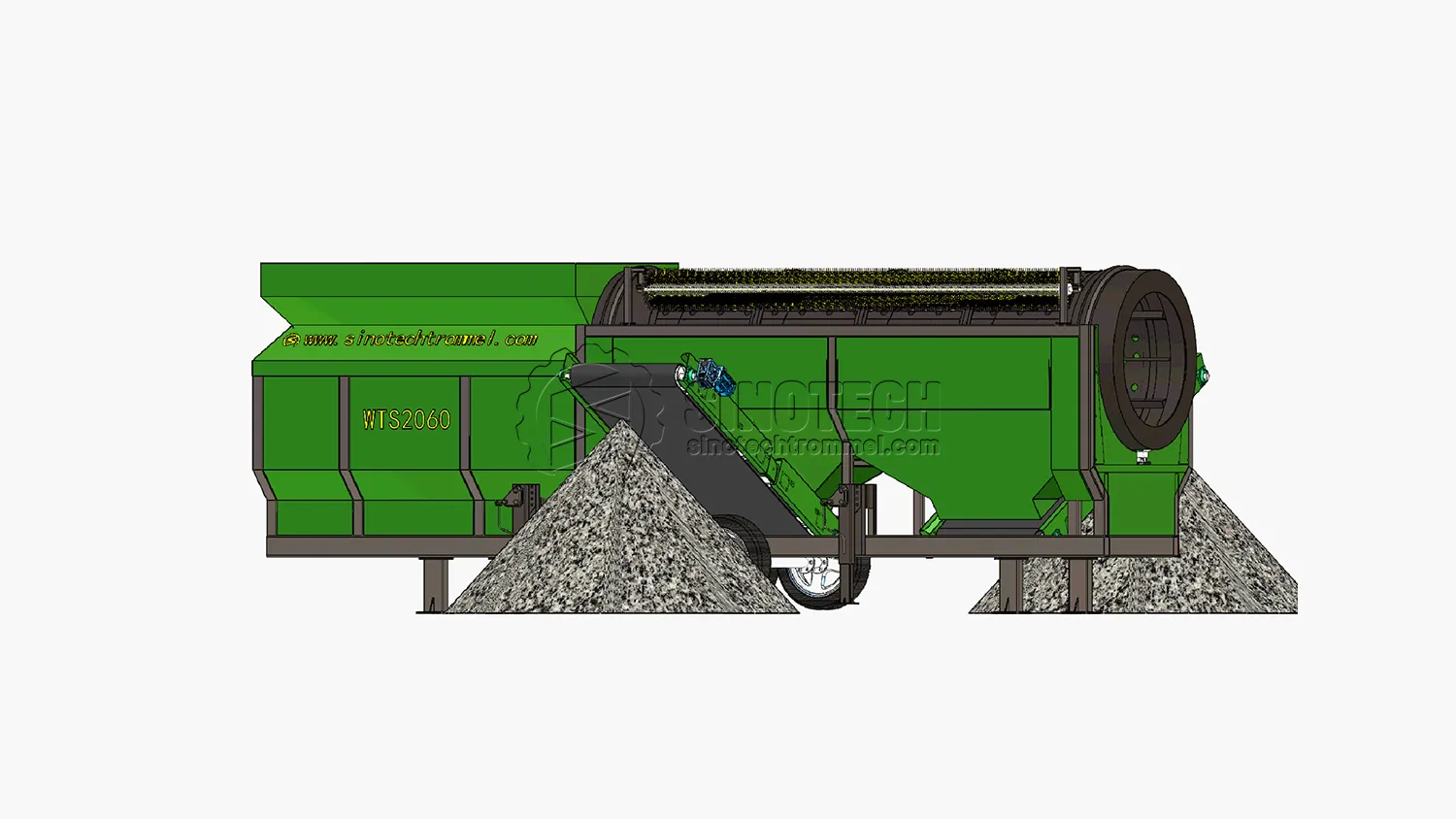

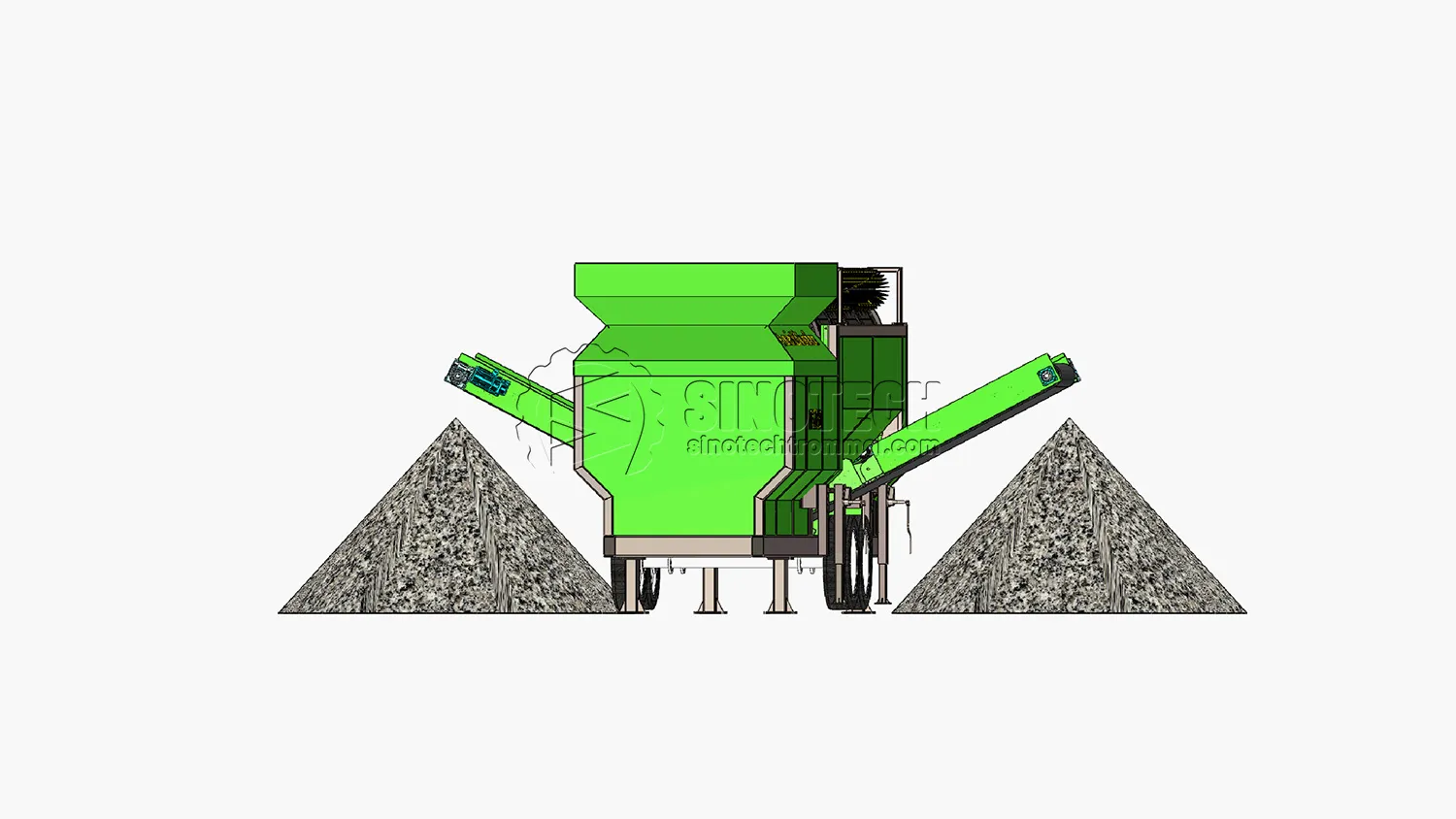

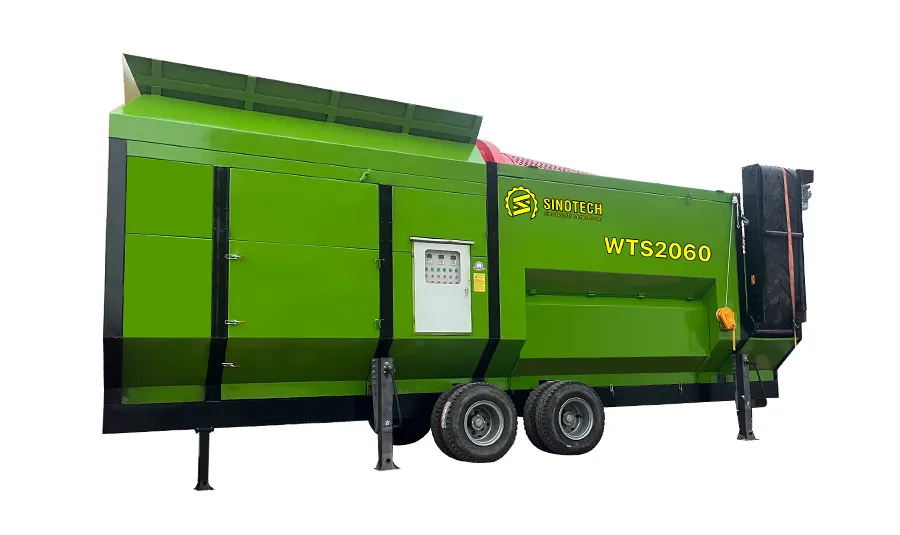

Our wheeled trommel screen series, featuring both single and double trommel designs, is the ultimate choice for separating topsoil, compost, gravel, and pebbles. Engineered for versatility, these machines deliver exceptional performance in mining, construction, and agriculture projects.
Designed to tackle challenges, this screener efficiently processes loose and wet materials without clogging, making it ideal for compost production and aggregate screening. With a stable structure and adjustable tilt angles, plus our personalized customization services, we ensure every machine is tailored to your specific production requirements.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 60-175m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 2000 | |
| Trommel length (mm) | 6000 | |
| Screening area approximately (m²) | ≈30.79 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 3200 |
| Feed hopper width (mm) | 2400 | |
| Volume (m³) | ≈7.78 | |
| Transportation dimensions | Transportation status length (mm) | 9310 |
| Transportation status width (mm) | 2690 | |
| Transportation status height (mm) | 3500 | |
| Weight (kg) | ≈16000 | |
Double-Layer Steel Plate Screen: Efficiently separates materials with high durability and long service life.
Side Belt Conveyor: Herringbone design increases material friction for smooth and consistent discharge.
Wide Hopper Design: Extra-large loading area simplifies material feeding and boosts productivity.
Flat Internal Conveyor: Ensures continuous material flow from hopper to drum for uninterrupted operation.
Heavy-Duty Outriggers: Adjustable lifting height keeps the machine stable on uneven terrain.
Wheeled Mobility: Robust tires allow easy transport and quick relocation between work sites.
