Price: $38,500-44,275 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 50-160 m³/h
Diesel or Electric Power
Screening surface: 27.71m²
Weight: approx. 12500 kg
Processed materials: MSW, Construction Waste, Landfill Reclamation, Topsoil, Compost, Woodchips.
Factory Direct Shipping to Oceania, EU, and the US, Globally
High-Capacity Drum Screen for Landfill Mining, C&D Waste, and Industrial Recycling — Maximum Throughput.

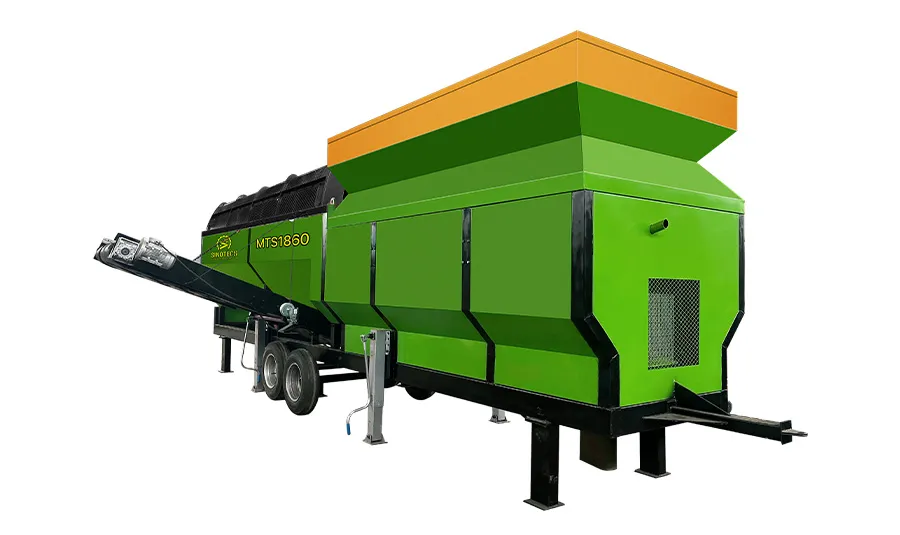

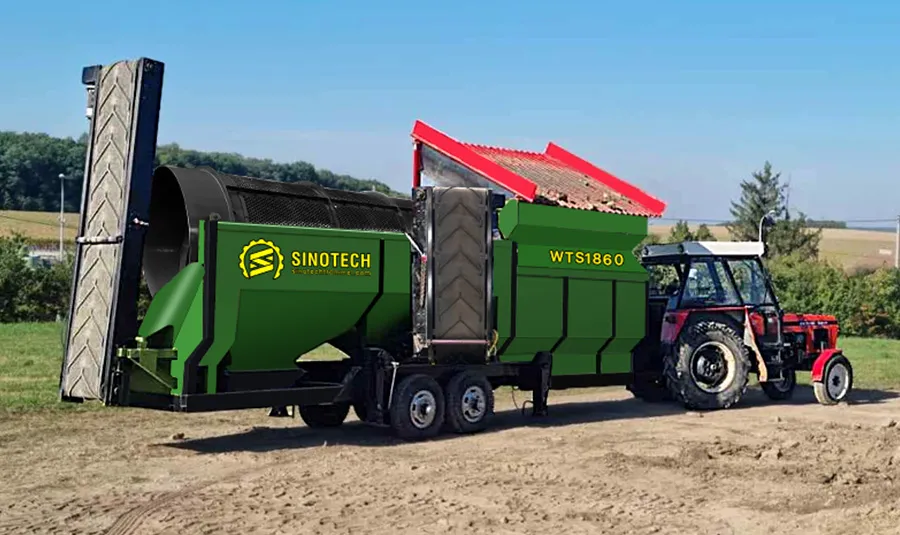

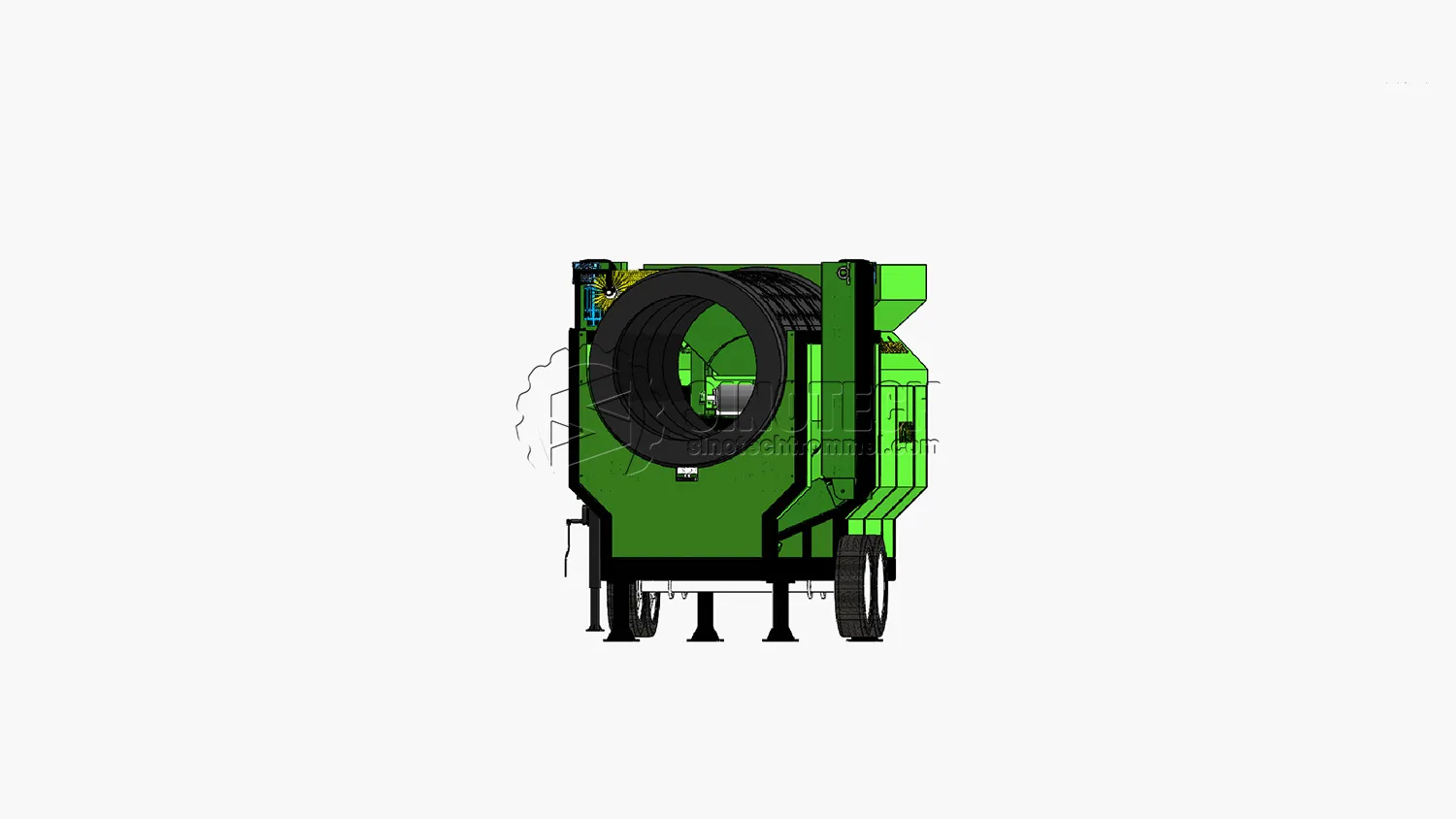

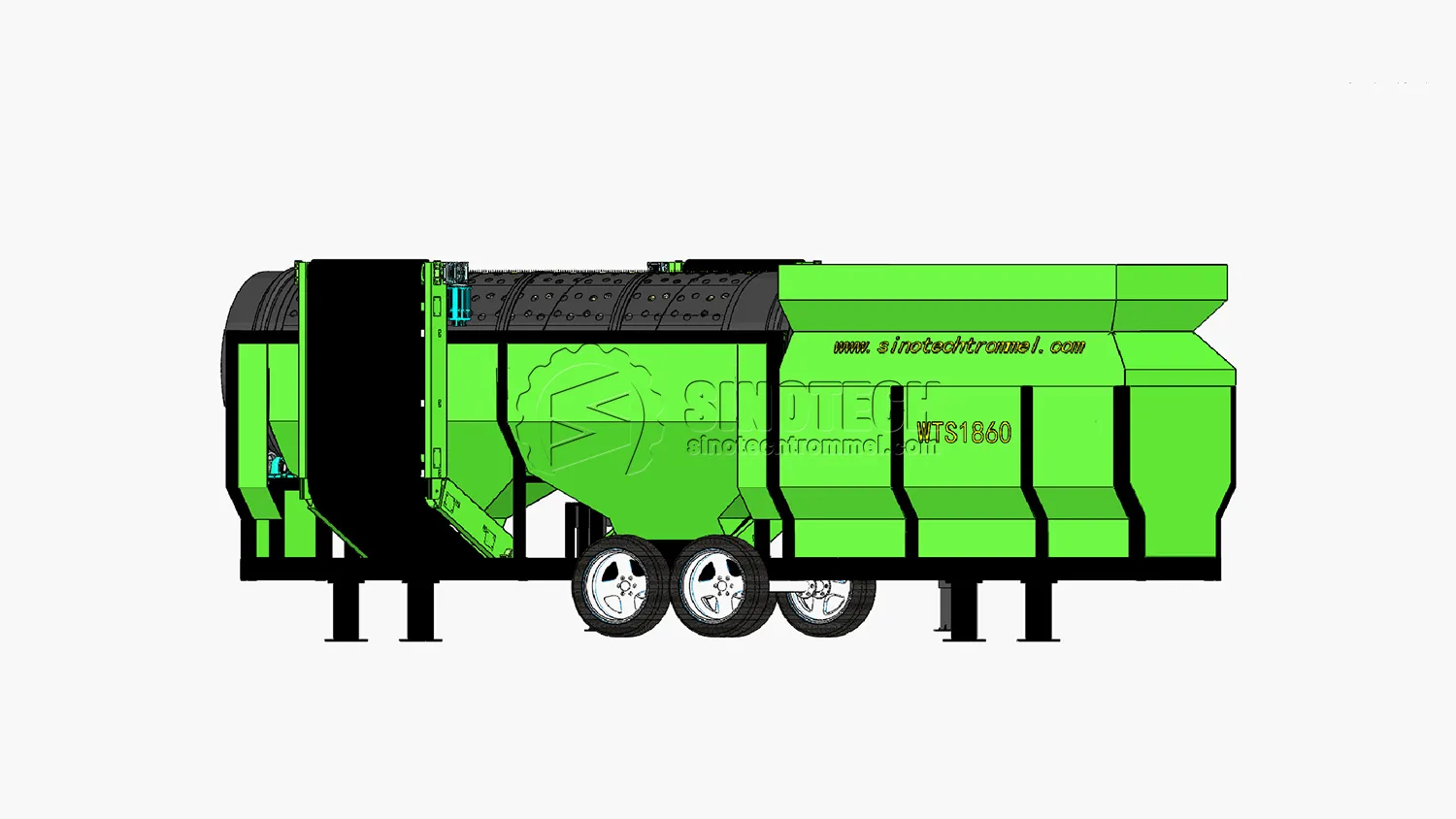

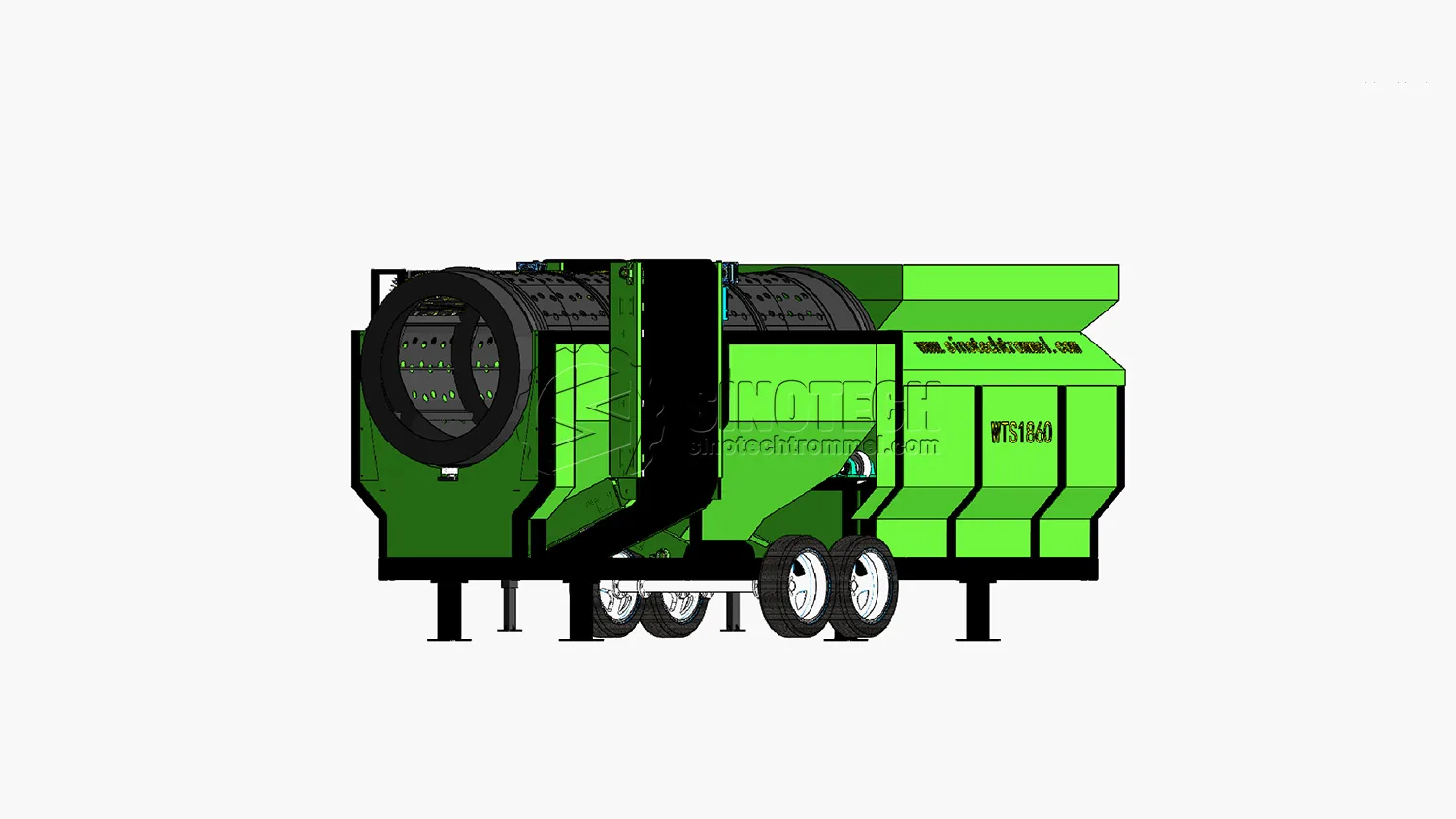

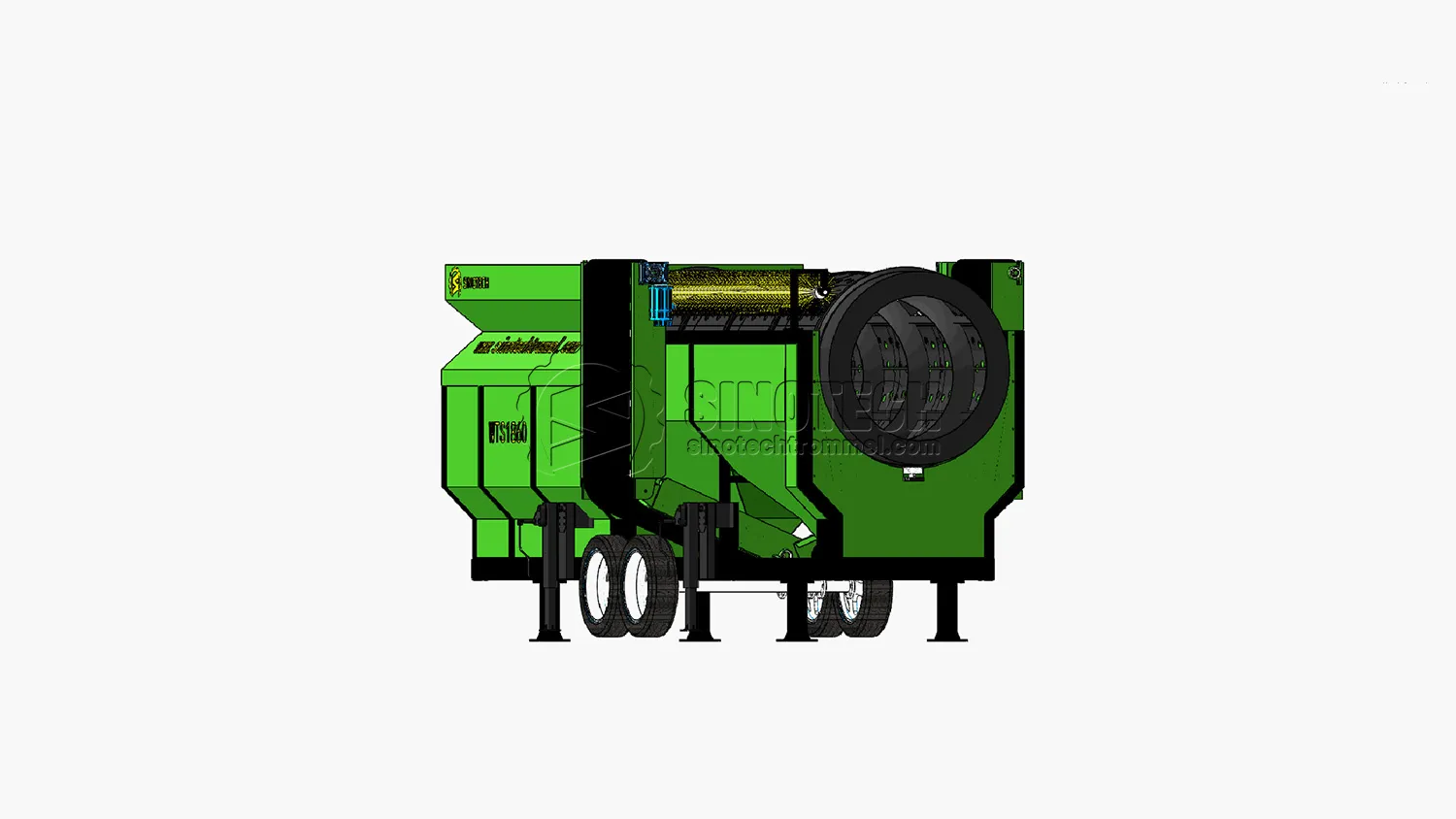

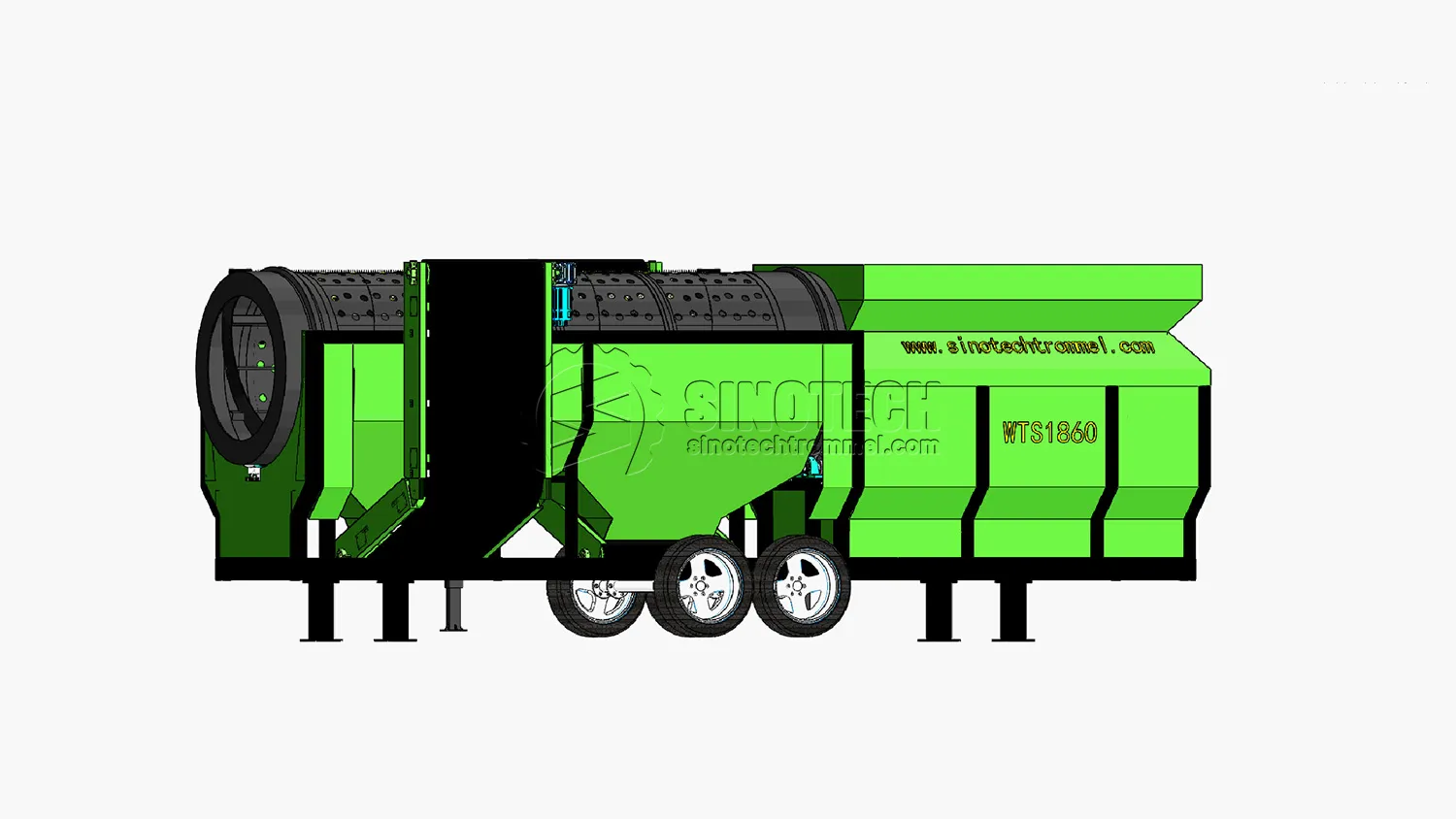

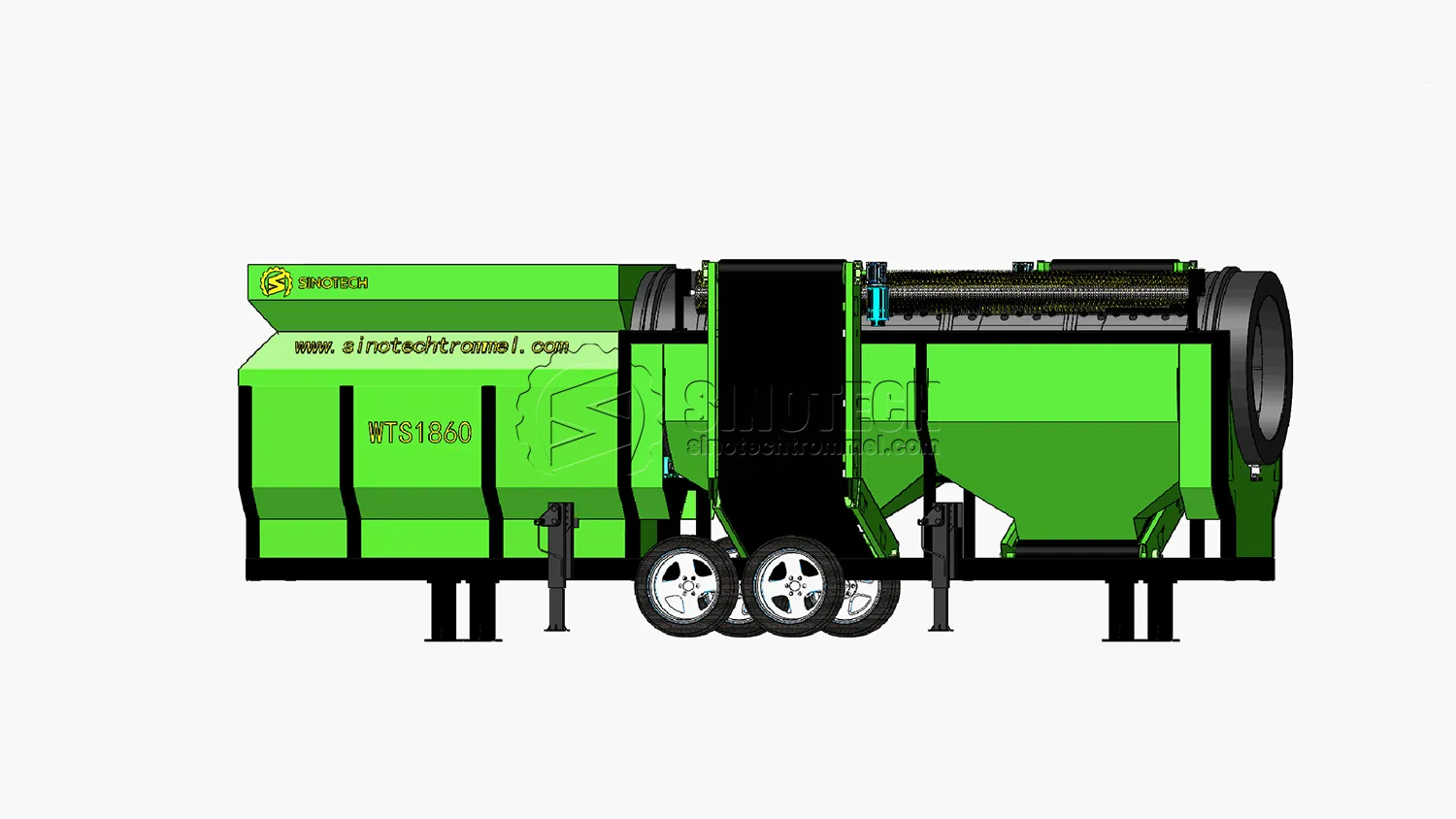

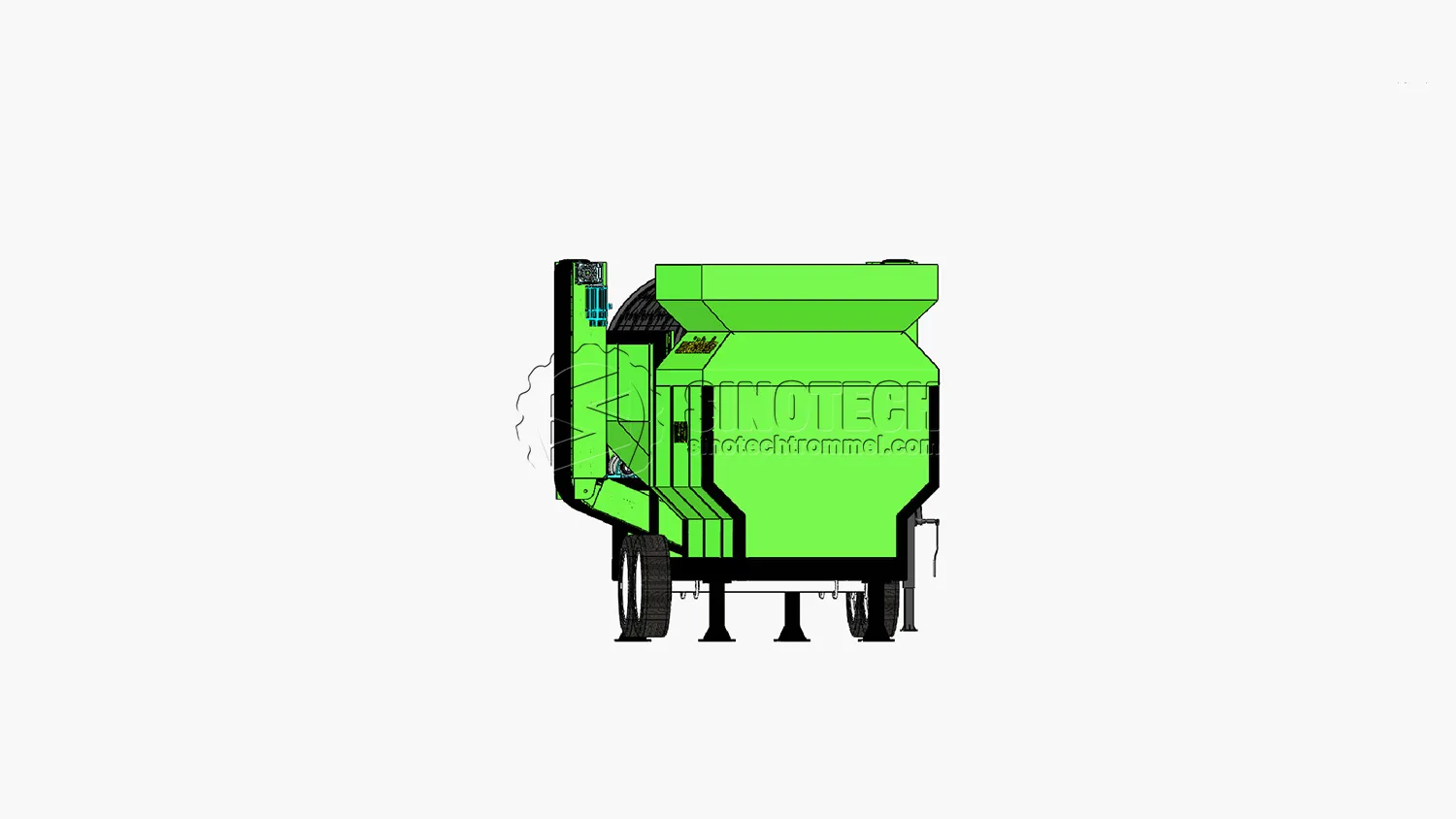

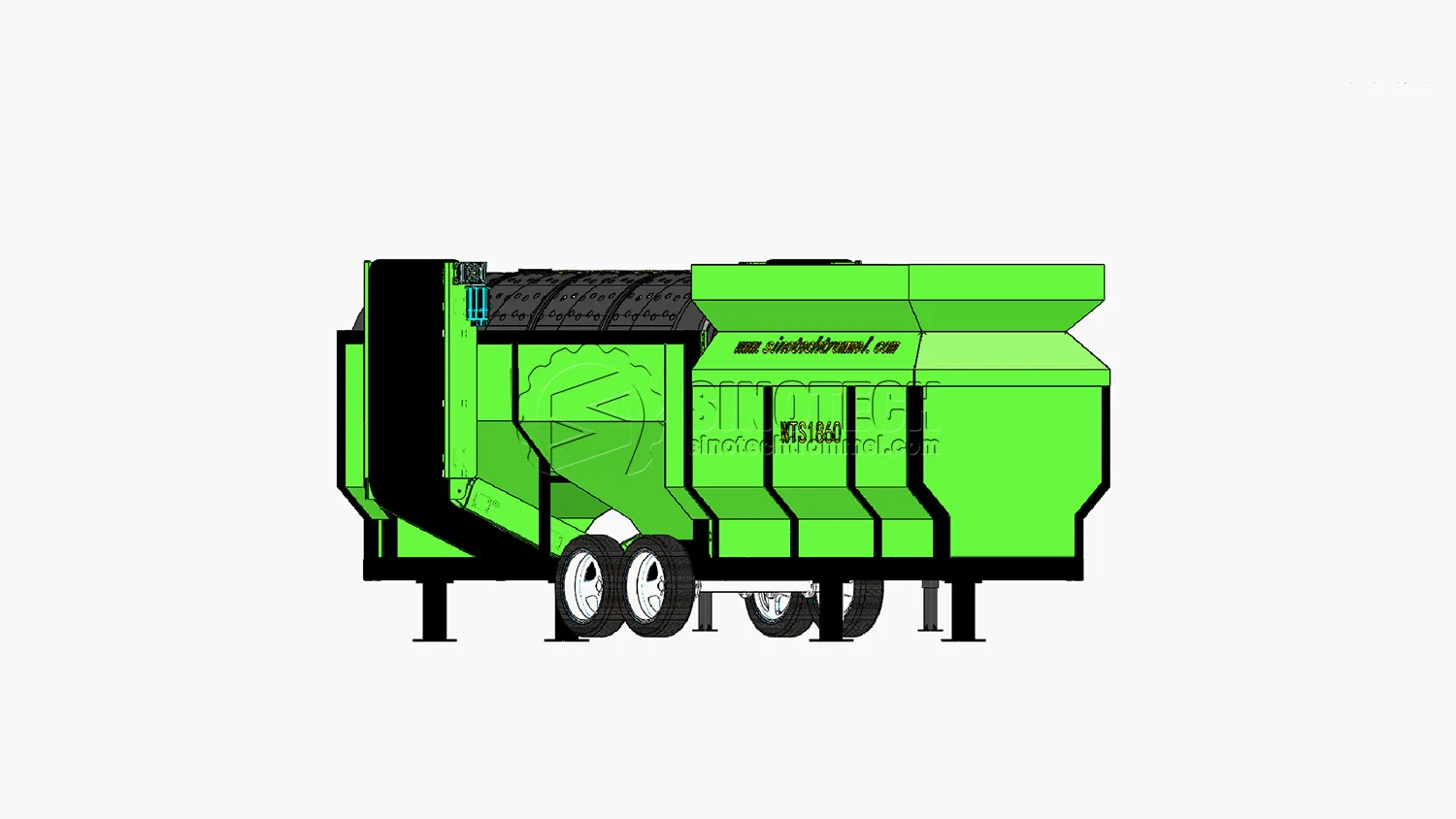

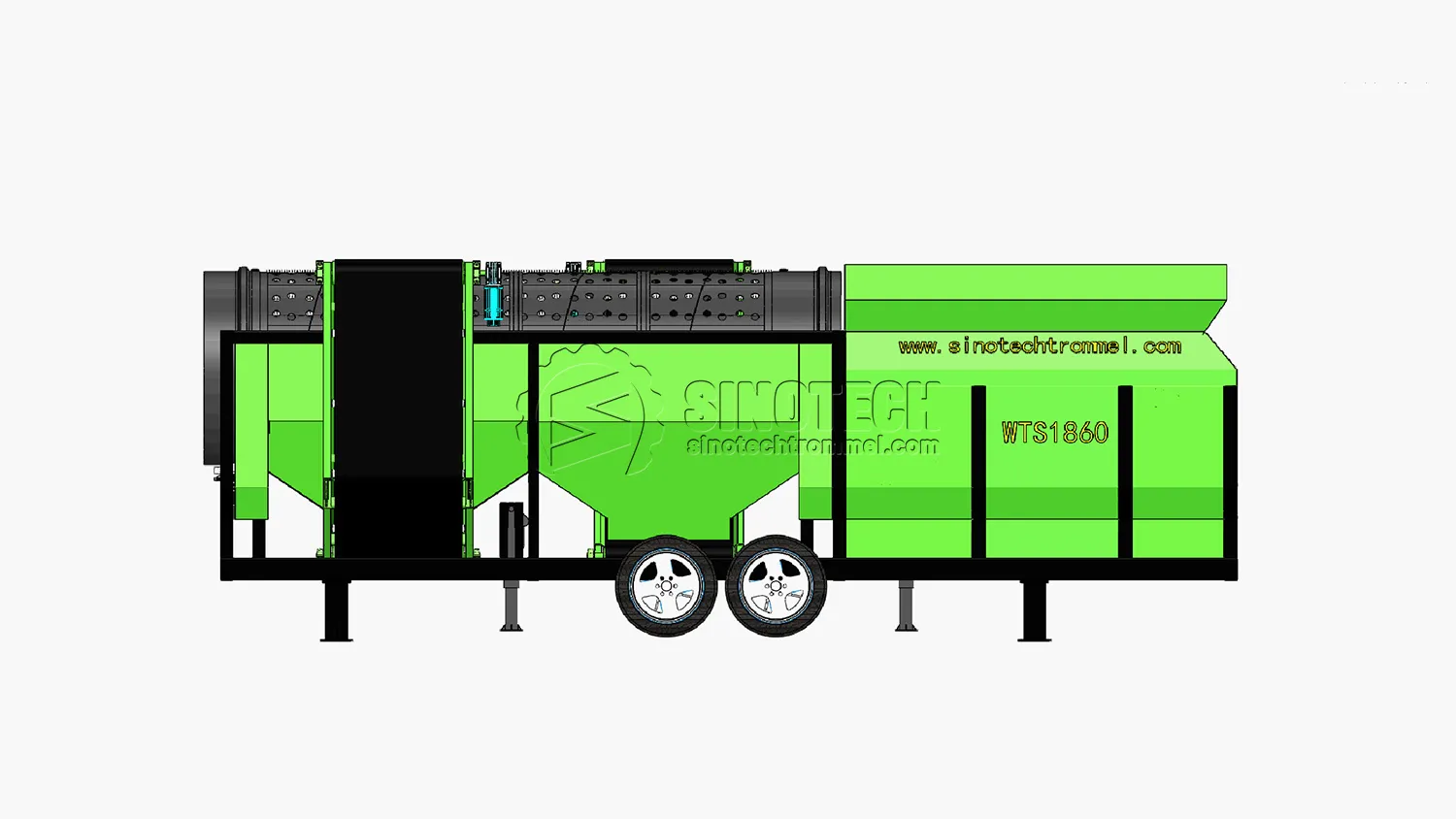

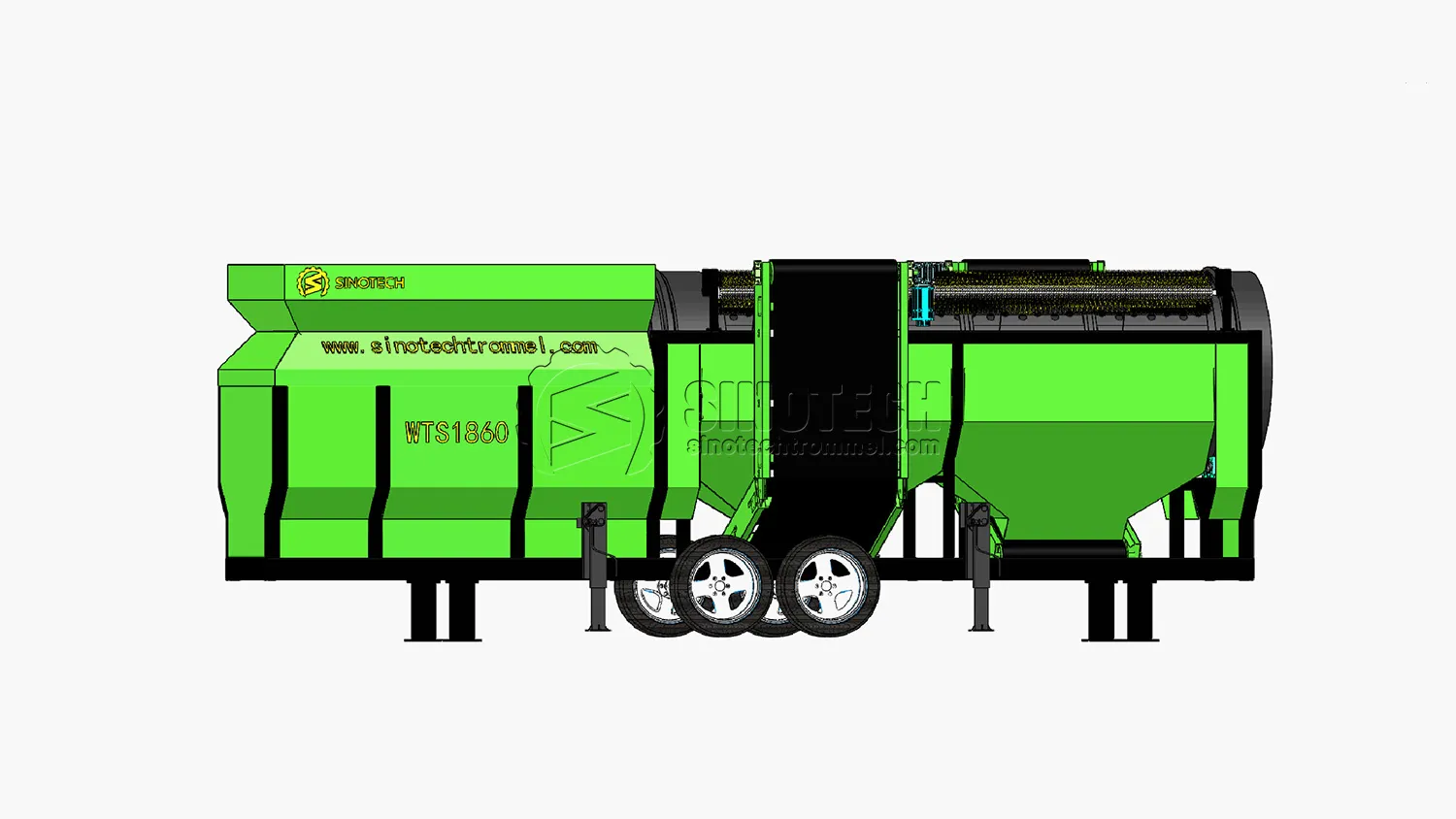

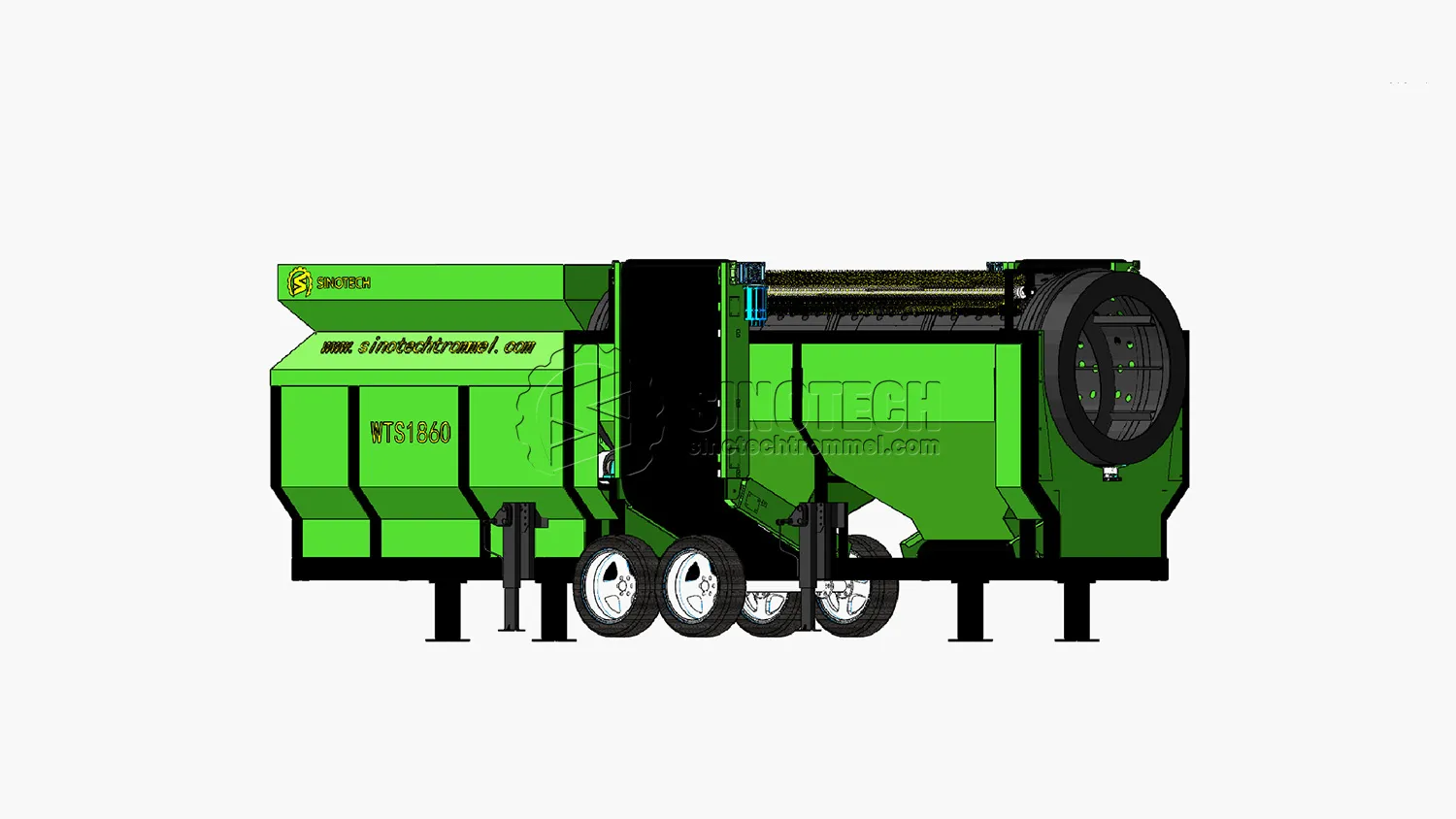

The WTS1860 Mobile Waste Screener is the ultimate solution for large-scale waste management and recycling operations. Unlike standard soil screens, this heavy-duty trommel is reinforced to handle bulky materials like construction and demolition (C&D) waste, municipal solid waste (MSW), and landfill reclamation.
Featuring an extra-large 1800mm drum diameter and a robust hopper, the WTS1860 prevents bridging and clogging when processing mixed waste. With its integrated conveyor system and mobile chassis, this solid waste screener can be rapidly deployed on any job site, delivering cleaner separation and higher profitability for your recycling business.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 50-160 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1800 | |
| Trommel length (mm) | 6000 | |
| Screening area approximately (m²) | ≈27.71 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 3200 |
| Feed hopper width (mm) | 2200 | |
| Volume (m³) | ≈6.45 | |
| Transportation dimensions | Transportation status length (mm) | 9310 |
| Transportation status width (mm) | 2490 | |
| Transportation status height (mm) | 3200 | |
| Weight (kg) | ≈12500 | |
Boost your productivity with the WTS1860 trommel screen, capable of processing up to 100m³/h for large-scale material screening.
Effortless feeding and discharging are ensured by the user-friendly feed hopper and side conveyor.
Screen a wide variety of materials including topsoil, sand, construction waste, and stone with unmatched precision.
Choose from multiple aperture meshes and punch plate panels to meet any project requirement.
Fully welded punch plate drums with scrolls provide long-lasting durability and consistent performance.
Designed for easy maintenance and quick screen replacement, reducing downtime and operational costs.
