Price: $14,200-17,400 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 30-70 m³/h
Diesel or Electric Power
Screening surface: 9.6 m²
Weight: approx. 4200 kg
Processed materials: Compost, Concrete, Sand, Soil, Topsoil, Woodchip
Factory Direct Shipping to Oceania, EU, and the US, Globally
Versatile Mobile Screener with Optional Grizzly Feeder — Rugged Construction for Mining & Waste Recycling.

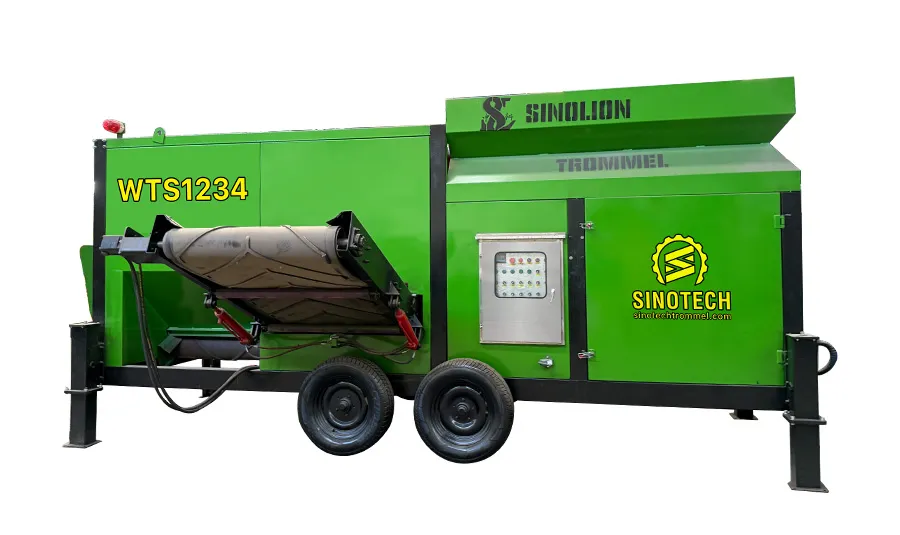

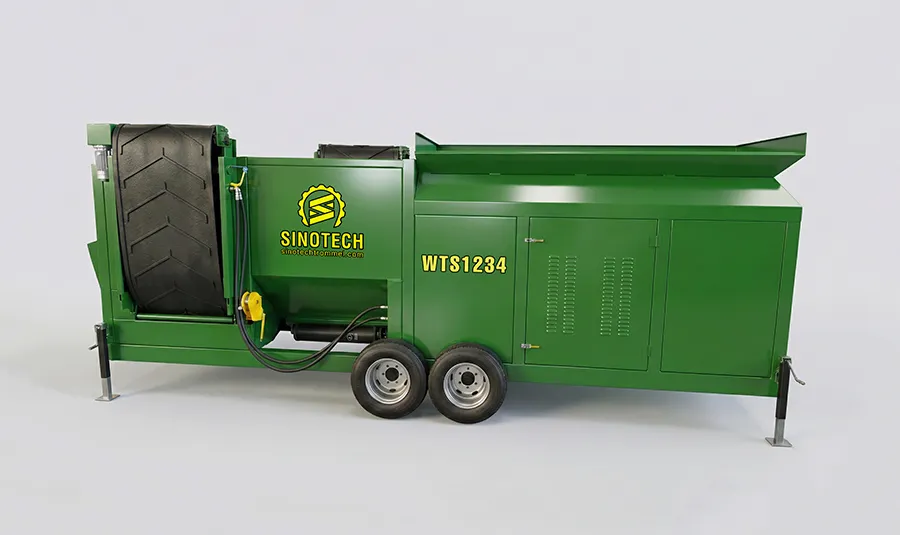

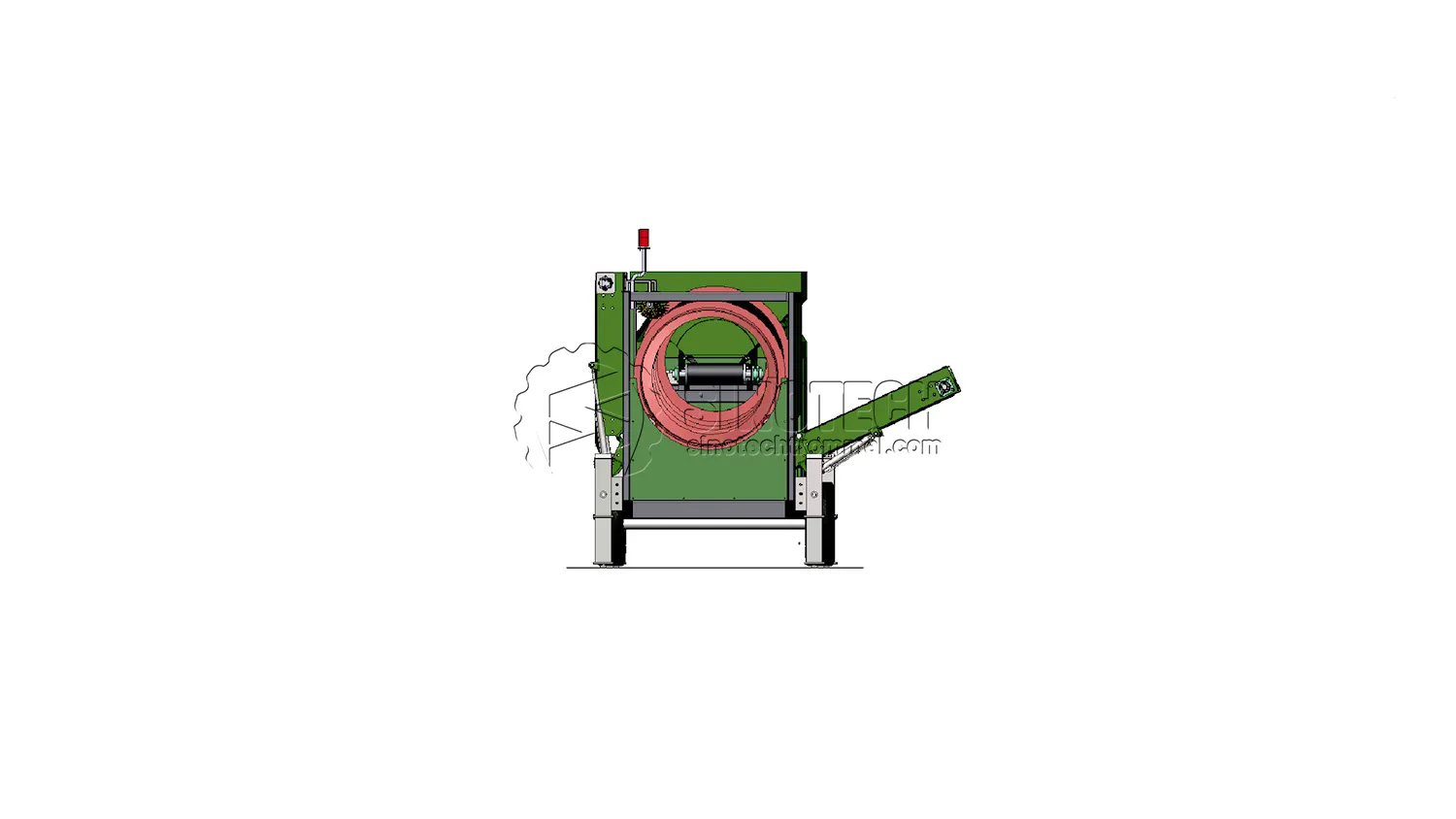

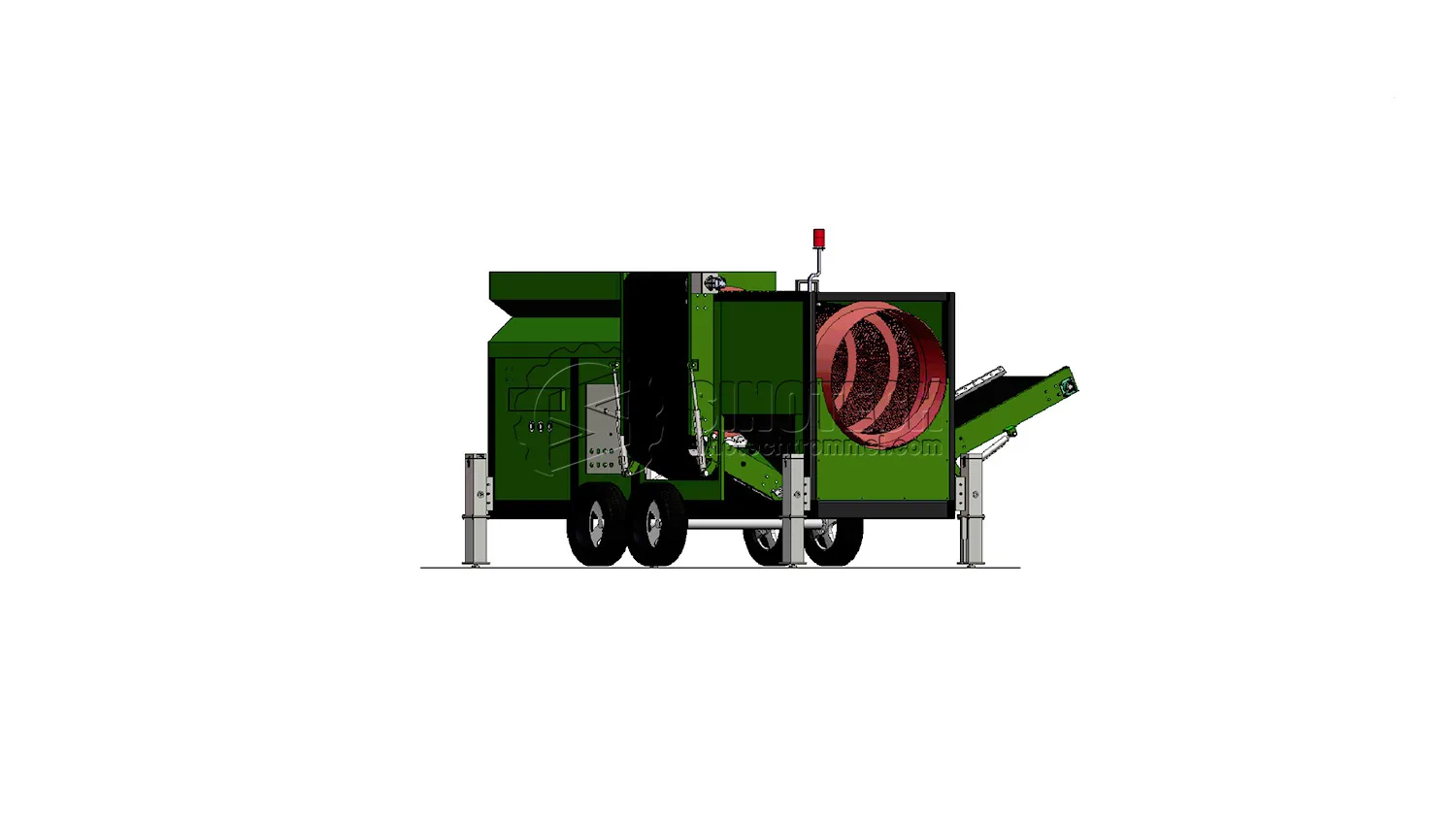

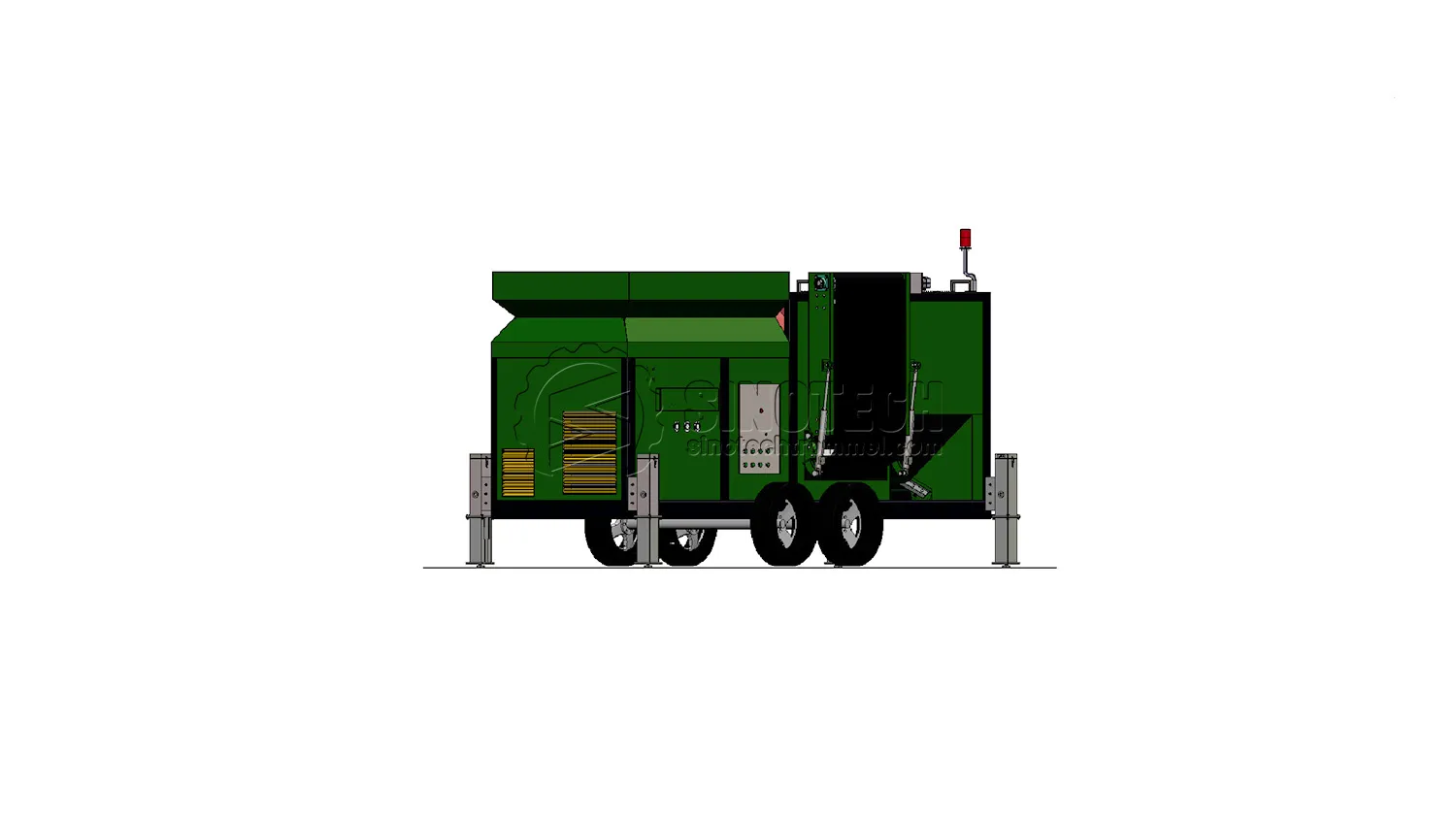

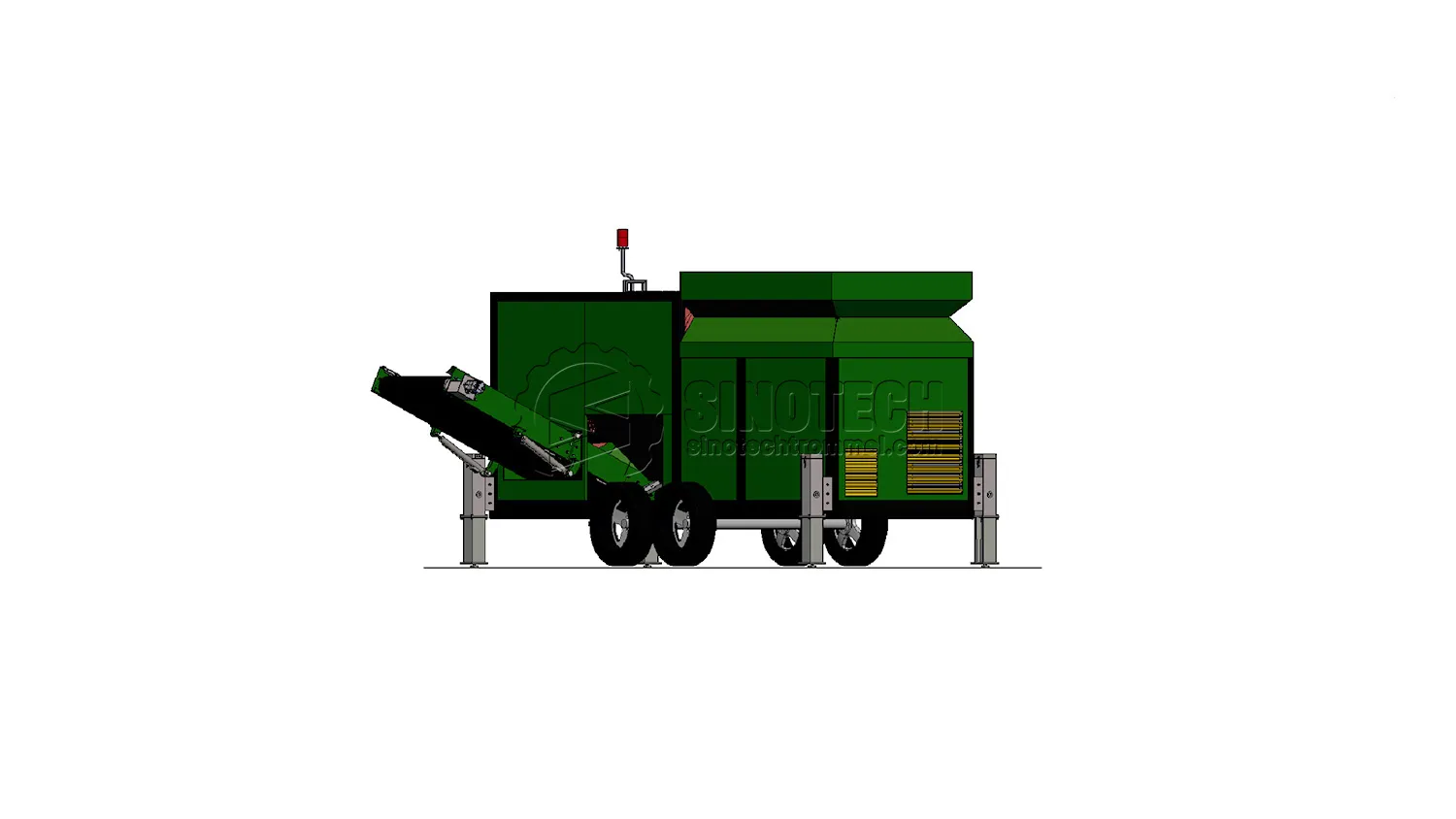

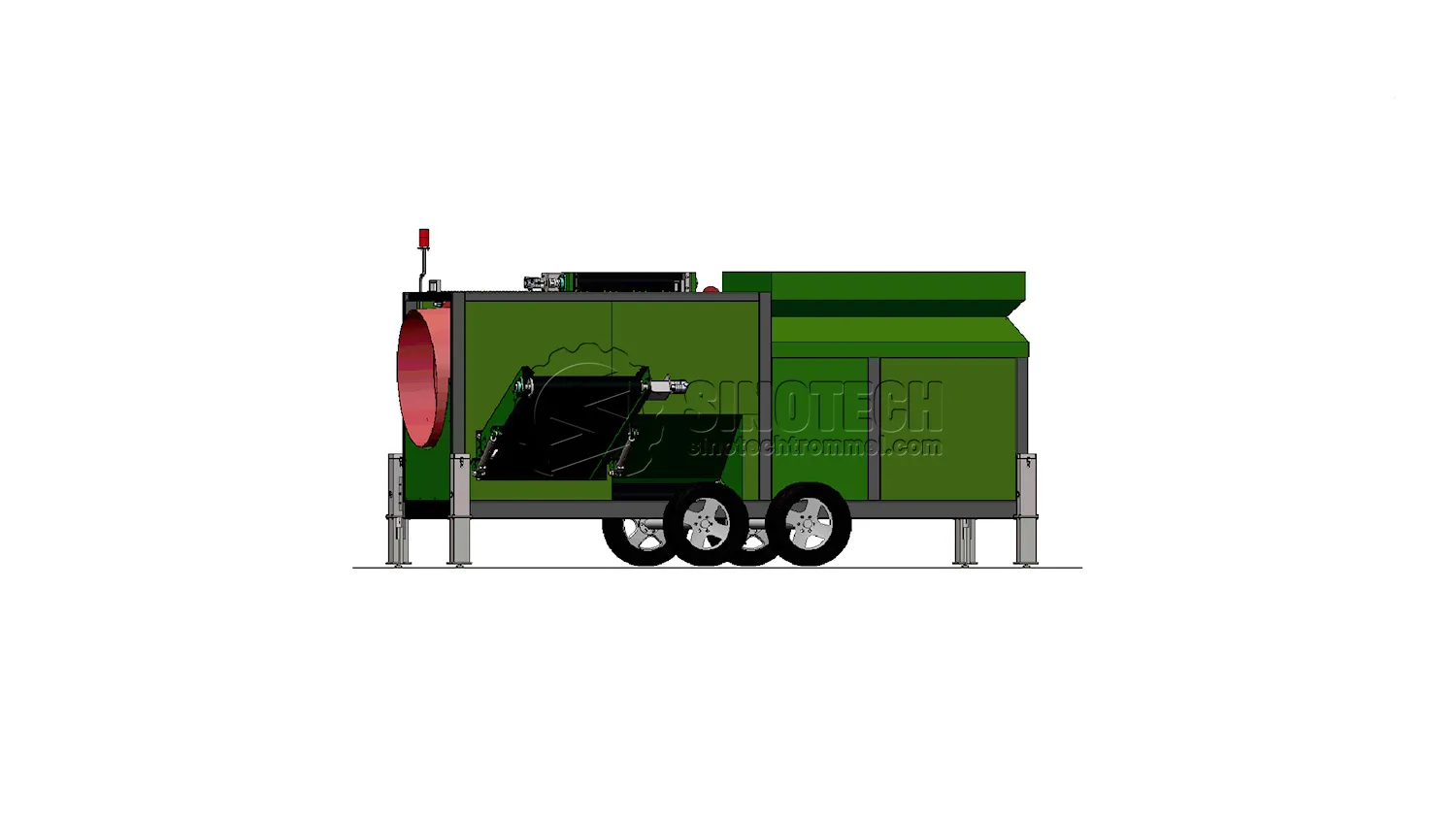

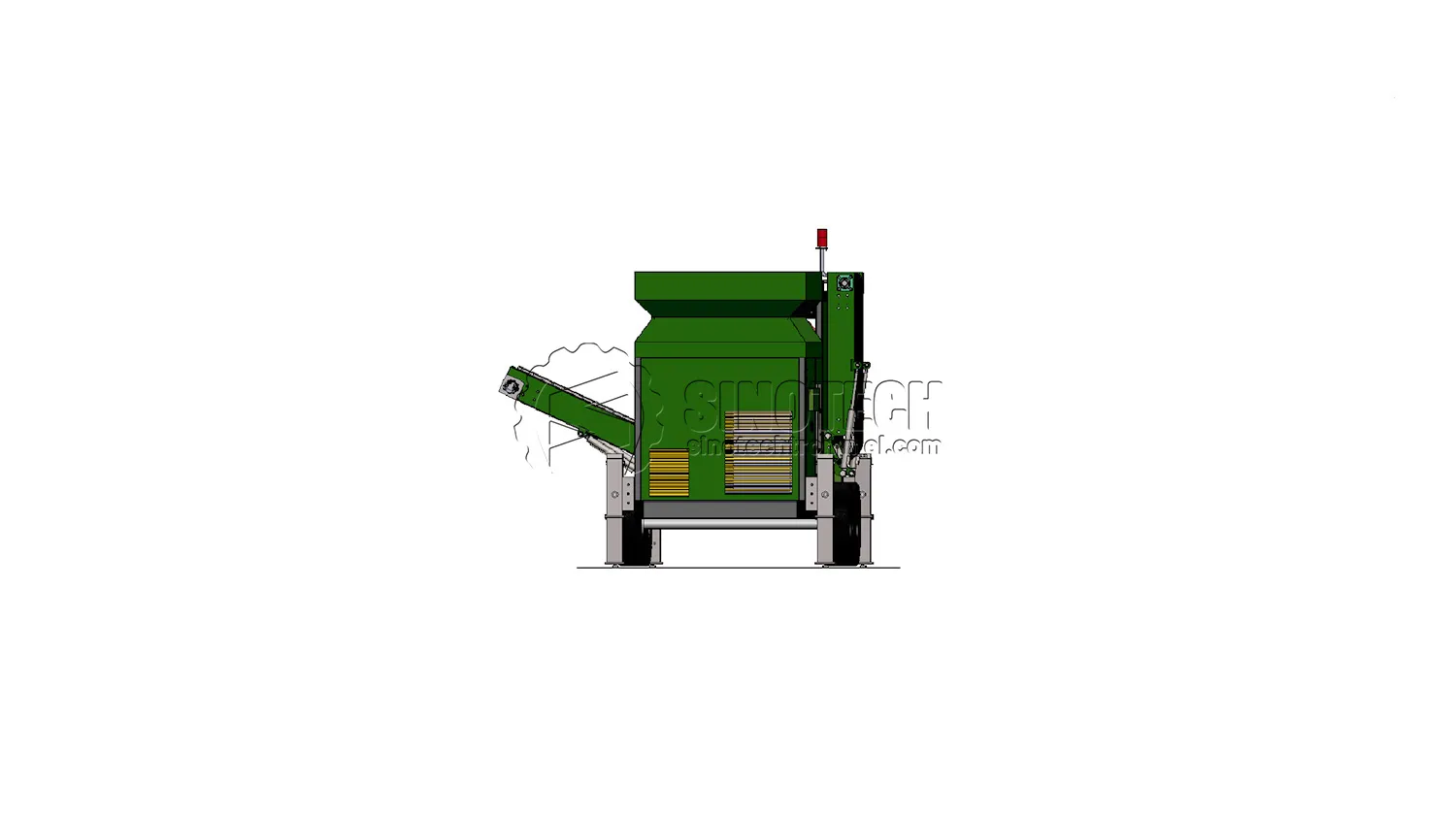

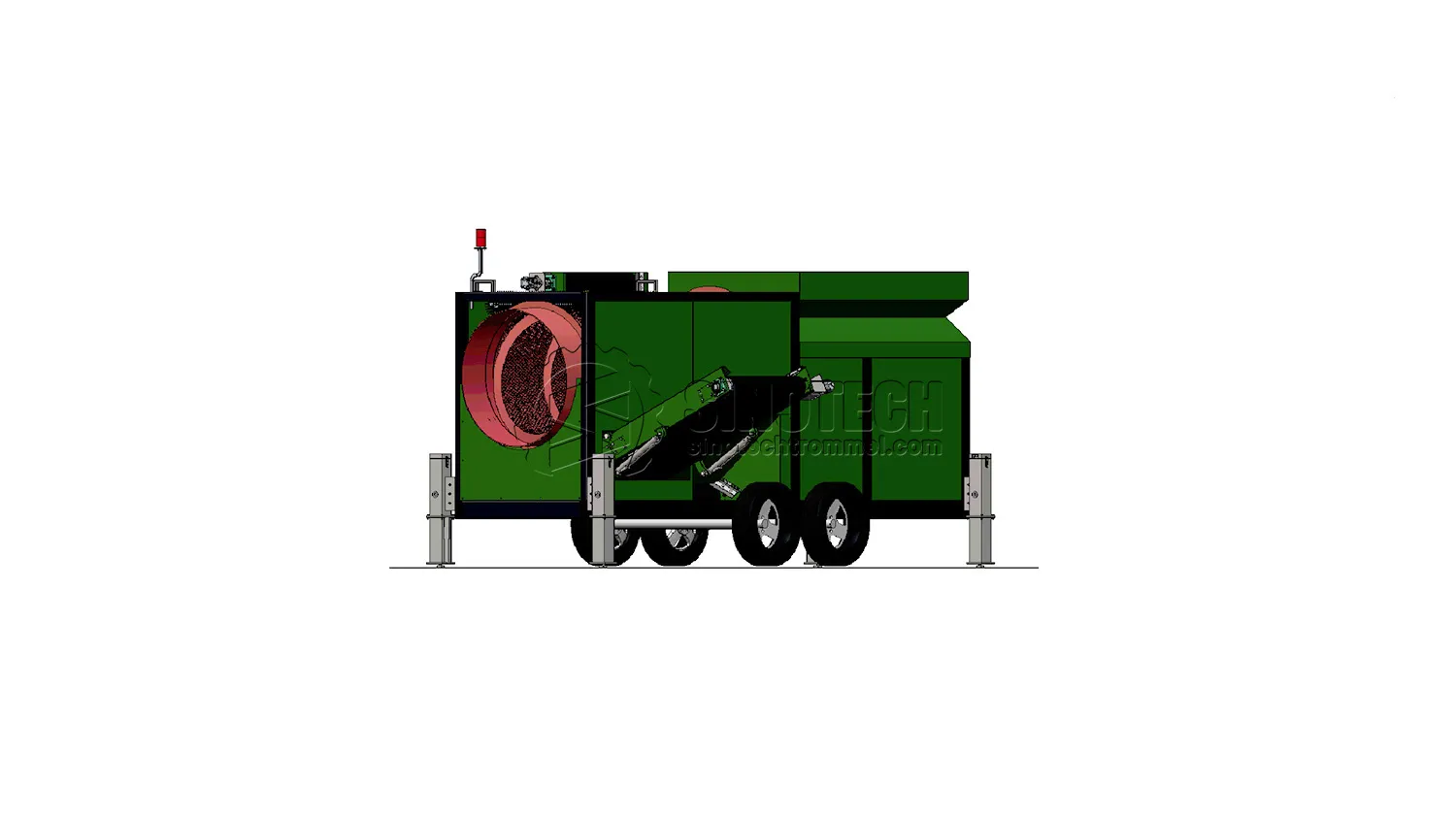

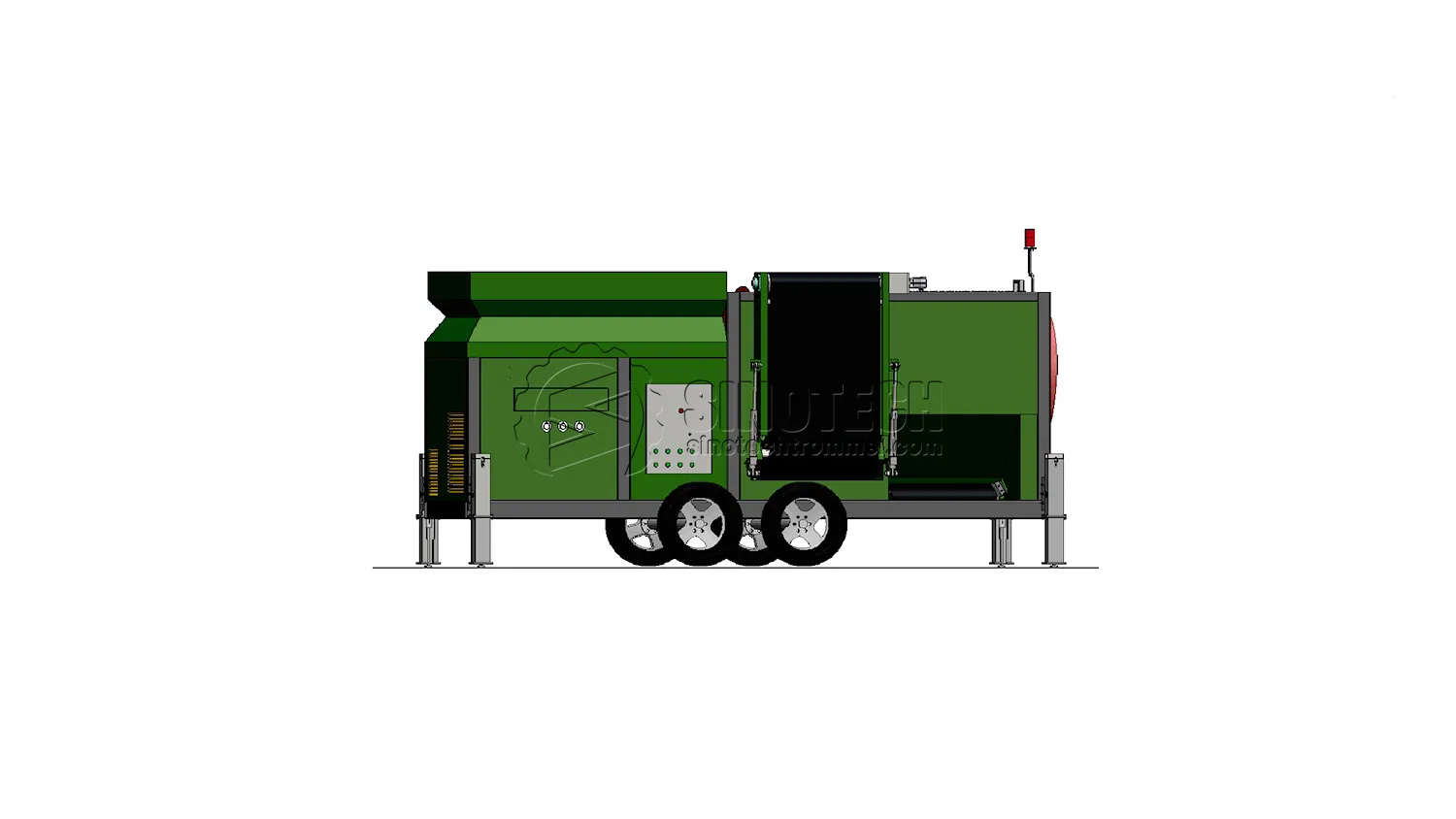

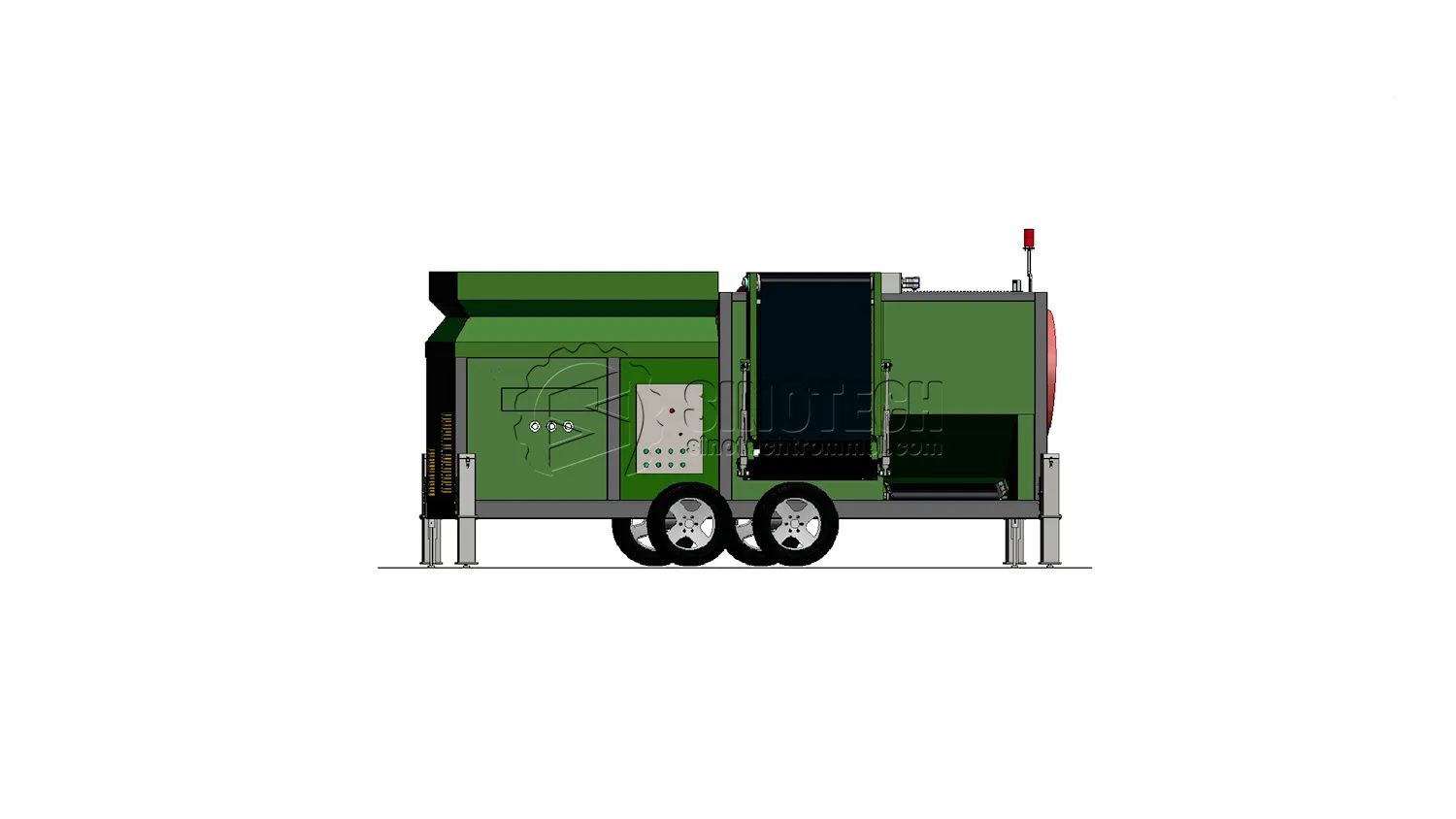

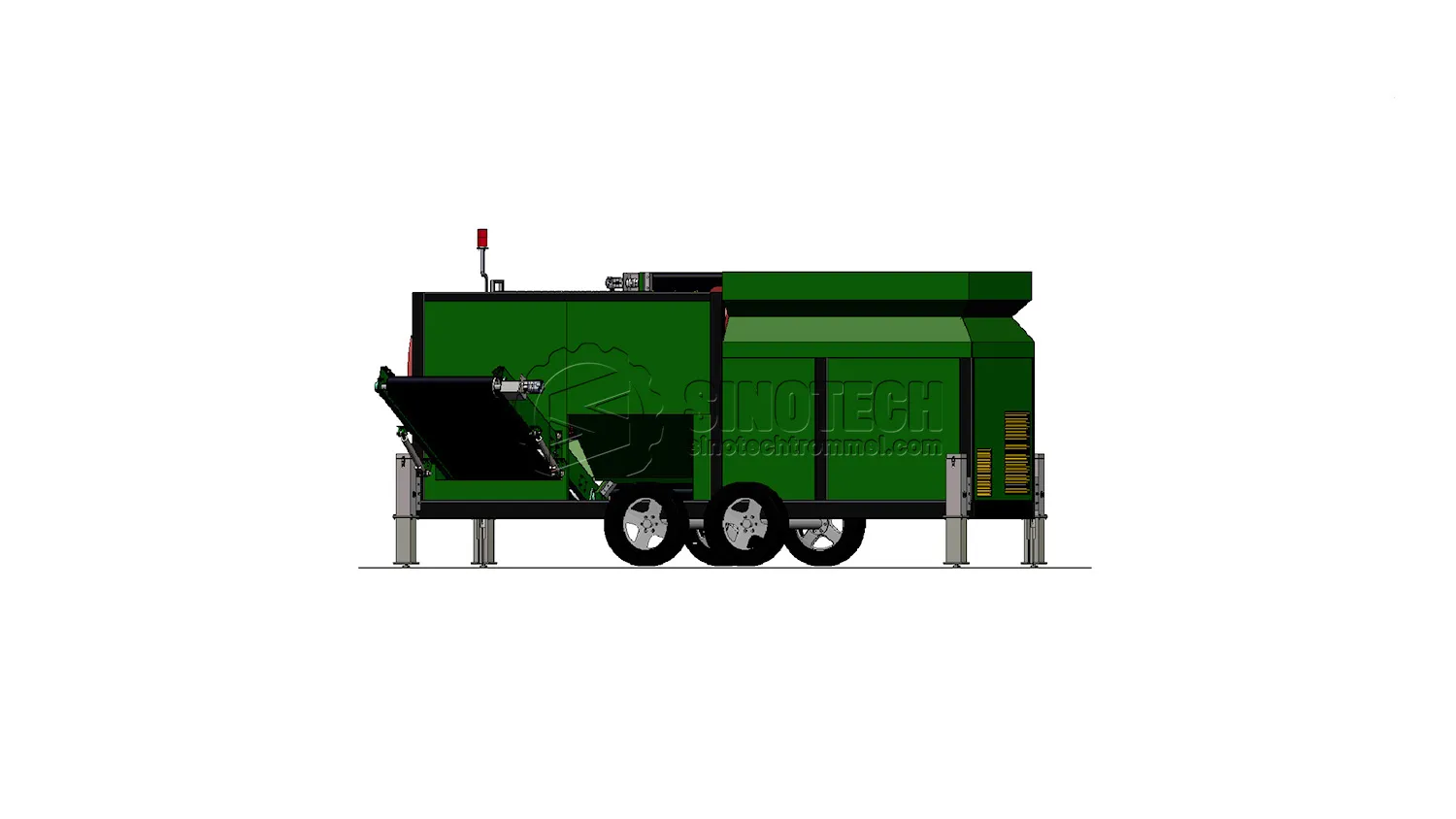

The WTS1234 Trommel Screen is a versatile powerhouse designed for screening and separating a vast range of materials, including Soil, Sand, Gravel, Compost, Woodchips, and Construction Waste. Whether processing Green cuttings, Coal, Slag, or Glass, this machine ensures efficient size classification and is widely used for material sorting, scalping, and grading.
Built with rugged construction for heavy-duty use, the WTS1234 features quick screen changes and adjustable screening angles for maximum flexibility. For tougher applications, a Grizzly bar can be added above the feeder to pre-screen large rocks. With customizable drum and screen hole sizes, this unit is easily tailored to meet your specific throughput requirements.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 30-70m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1200 | |
| Trommel length (mm) | 3400 | |
| Screening area approximately (m²) | ≈9.6 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2290 |
| Feed hopper width (mm) | 1520 | |
| Volume (m³) | ≈1.42 | |
| Transportation dimensions | Transportation status length (mm) | 5855 |
| Transportation status width (mm) | 1800 | |
| Transportation status height (mm) | 2255 | |
| Weight (kg) | ≈4200 | |

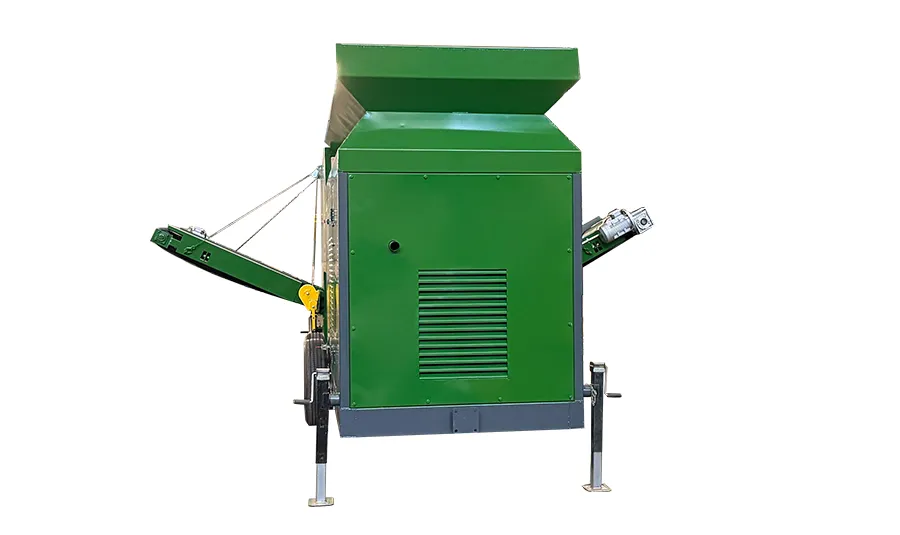

Large-Capacity Hopper: 1.42 m³ (1.86 yd³) hopper with optional extensions, designed to keep your material flowing and boost productivity.

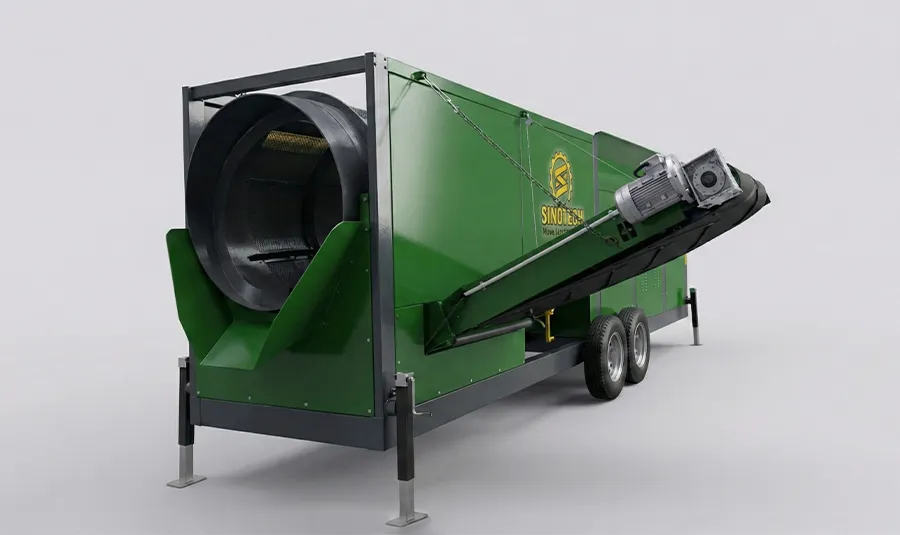

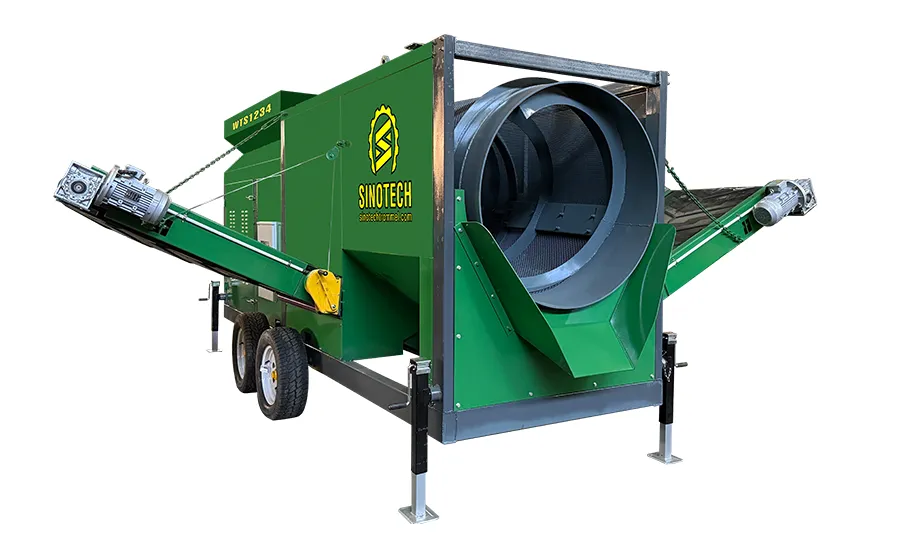

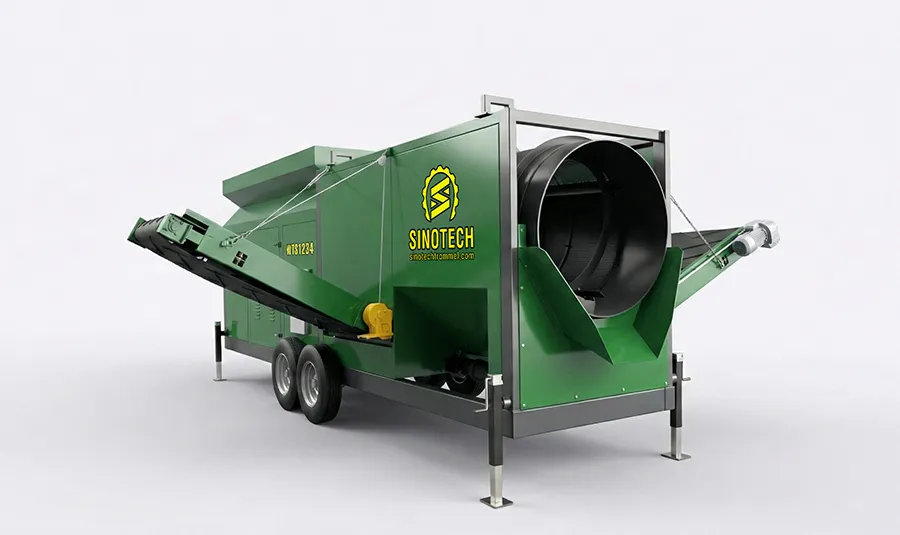

High-Stockpile Conveyor: Radial conveyor reaches up to 4.5 m (14’ 9”) stockpile height, reducing handling time and maximizing efficiency.
Self-Cleaning Brush System: Adjustable brushes operate at ground level to keep the screen clear and swing away instantly for fast drum changes.
Easy-Transport Mobility: Two robust single axles ensure smooth towing and quick setup anywhere your job takes you.

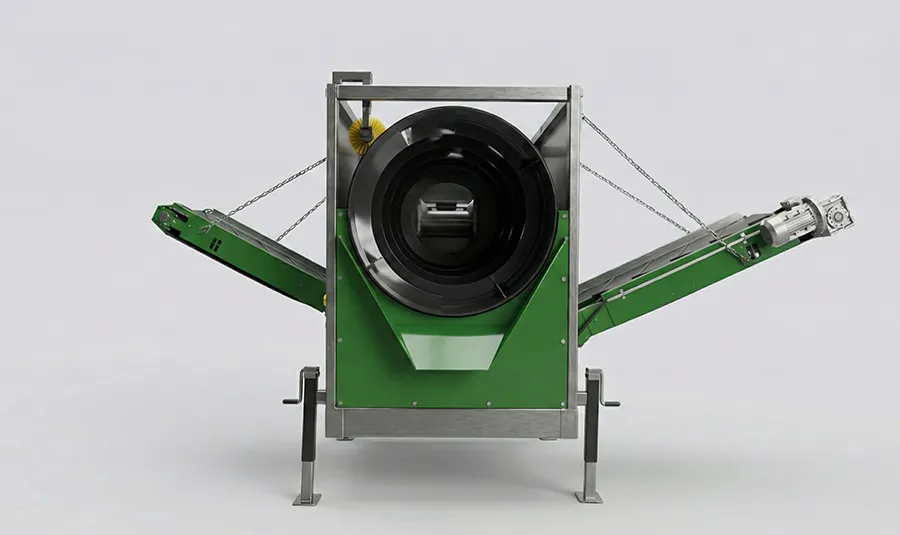

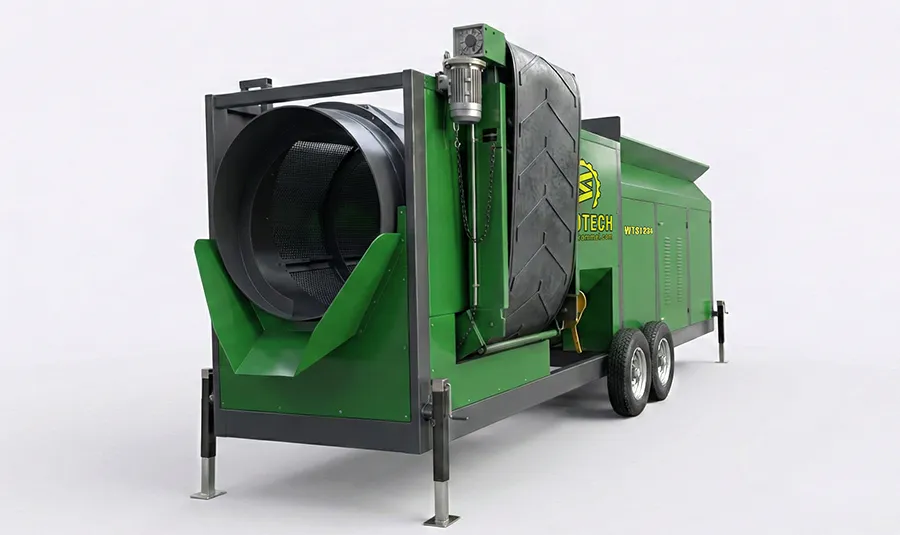

Heavy-Duty Trommel Drum: Rugged 5’ x 12’ steel drum built to handle tough materials, with multiple drum and screen options for your needs.
Built for Results: Engineered for high throughput, minimal downtime, and versatile screening across a wide range of applications.
