Price: $3,500-4,000 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 5-20m³/h
Screening surface: 3.14m²
Weight: approx. 750kg
Application areas: Efficiently process Firewood, Dirt, Gravel, Wood Chips, plus all Organic and Mineral Aggregates.
Factory Direct Shipping to Oceania, EU, and the US, Globally

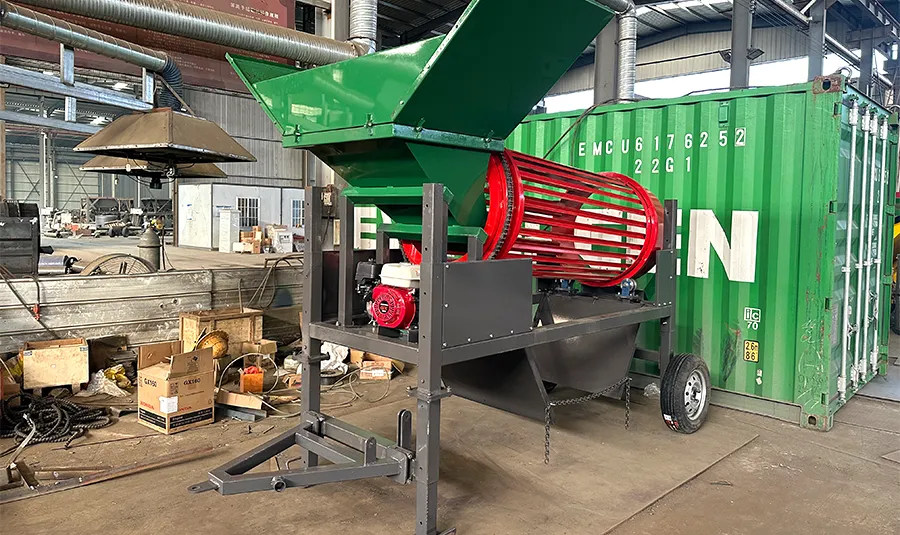

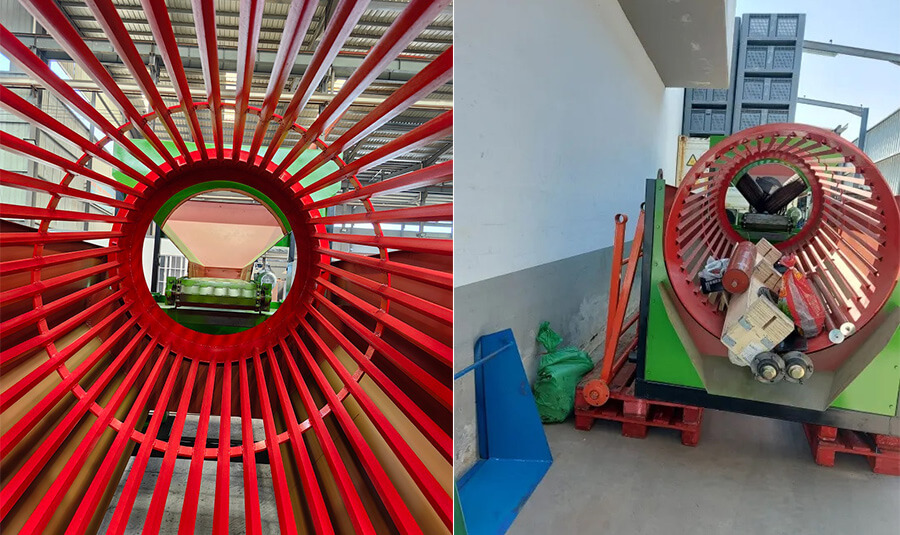

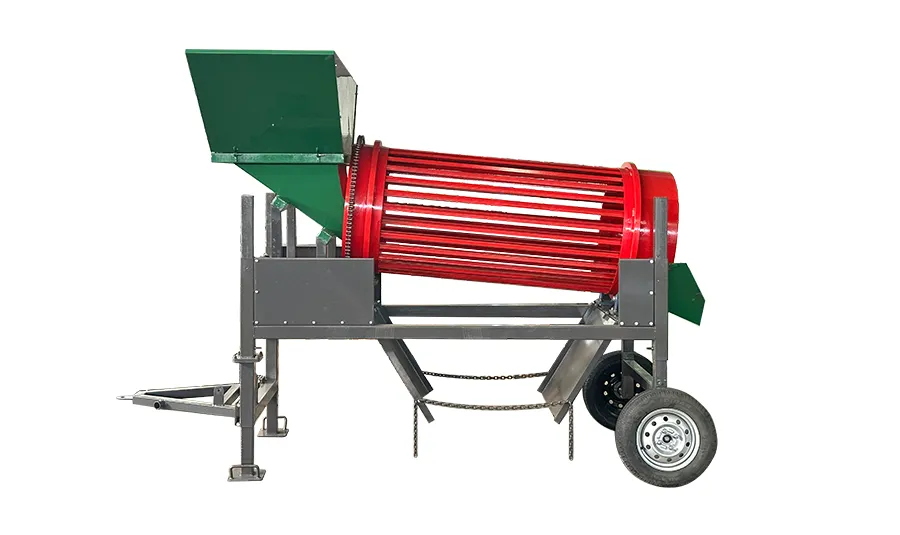

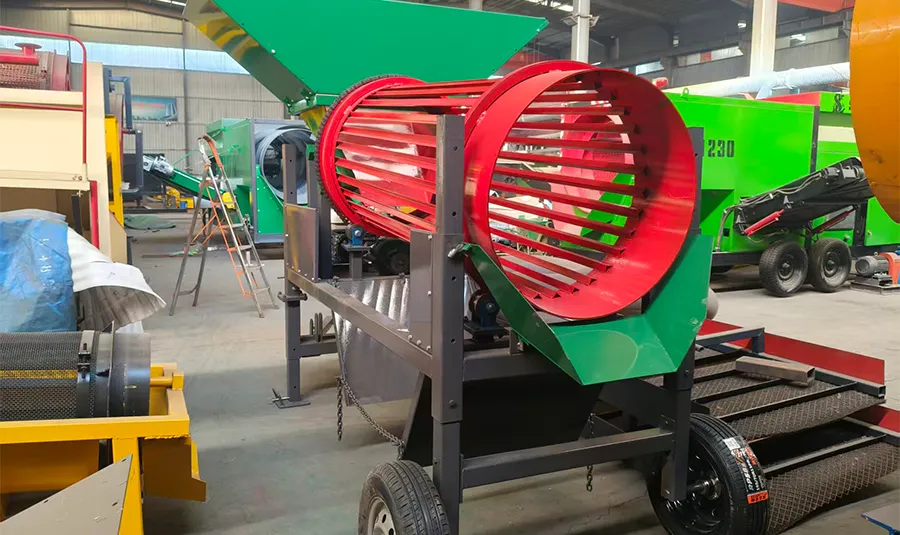

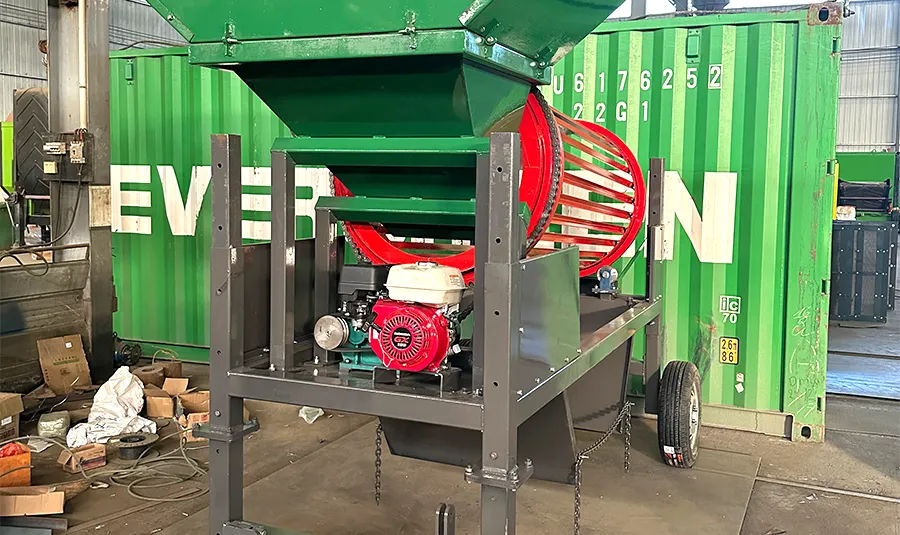

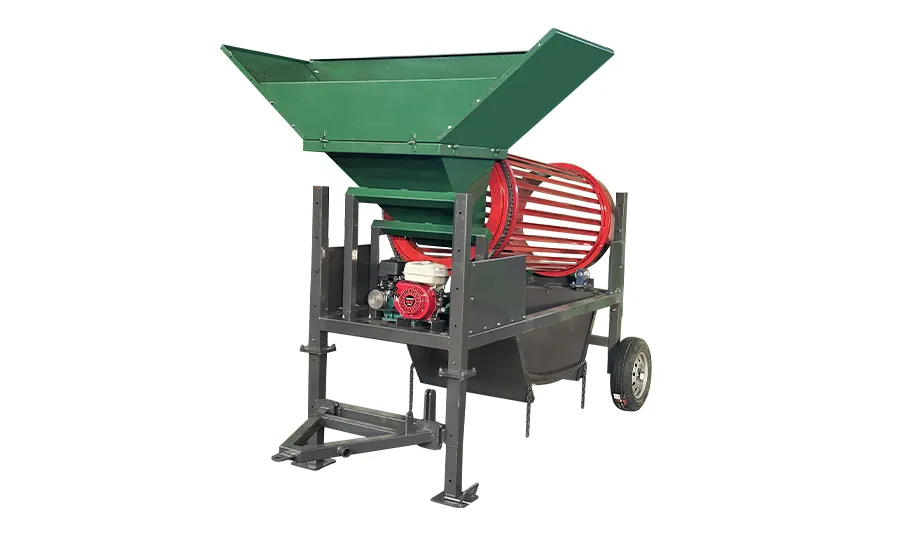

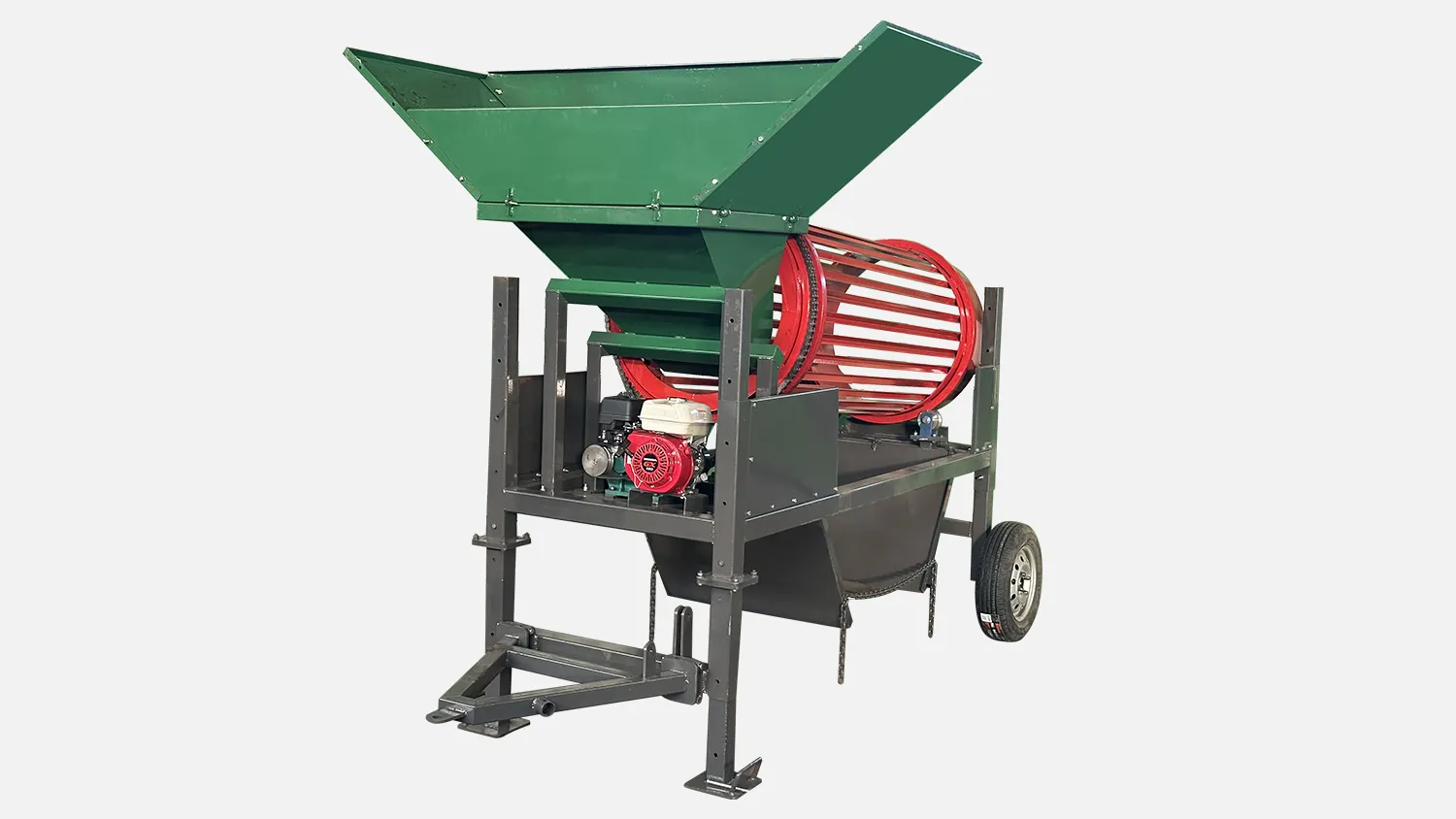

The FTS0820 Firewood Trommel Screen is a professional rotary sifter designed to upgrade your firewood processing. By feeding raw wood into the 0.8m diameter by 2m length drum, the machine efficiently separates valuable logs from debris, gravel, and wood chips. This process ensures you deliver a cleaner, premium product that commands a higher market price.
Flexibility & Customization While built primarily for large firewood, the FTS0820 is highly versatile. It can be used to ensure uniform particle sizes for biomass power plants and pellet machines. The screen mesh is fully customizable (10mm–100mm) to suit your output needs. Additionally, for operations handling high-humidity or sticky raw materials, an anti-clogging system can be customized as an optional upgrade to prevent blockage and maintain high efficiency.
Automation Ready Designed for industrial workflow, the FTS0820 integrates seamlessly with your existing conveyors and crushers, forming a complete, automated production line for crushing, composting, or energy utilization.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 5-20 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 800 | |
| Trommel length (mm) | 2000 | |
| Screening area approximately (m²) | ≈3.14 | |
| Wire screens | interchangeable | |
| Angle iron spacing (mm) | 44 (customizable) | |
| Feeding hopper | Feed hopper length (mm) | 800 |
| Feed hopper width (mm) | 500 | |
| Volume (m³) | ≈0.13 | |
| Transportation dimensions | Transportation status length (mm) | 2600 |
| Transportation status width (mm) | 1040 | |
| Transportation status height (mm) | 1430 | |
| Weight (kg) | ≈750 | |
Boost Profit: Instantly increase your firewood value by separating dirt and debris.

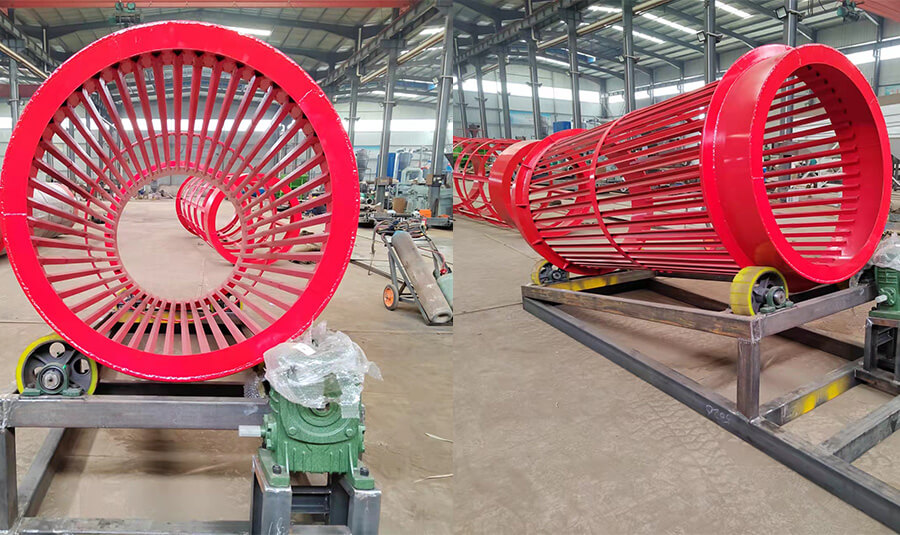

Perfect Size: Features a robust 0.8m x 2m drum optimized for processing large firewood.
Customizable Mesh: Screen hole sizes are fully adjustable from 10mm to 100mm.
Optional Anti-Clogging: We can customize an anti-clogging design for wet or sticky materials.
Versatile Use: Ideal for sorting firewood, wood chips, and biomass fuel preparation.
Easy Automation: Seamlessly connects with conveyors to create an efficient production line.
