Price: $13,700-16,900 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 30-70 m³/h (40-90 yd³/h)
Diesel or Electric Power
Screen Aperture: 2-120 mm (0.08-4.75 in, Custom drum)
Weight: approx. 4200 kg (9,260 lbs)
Comprehensive 1-year global warranty & lifetime online technical support.
Processed materials: Compost, Concrete, Gravel, Sand, Soil, Stone, Topsoil, etc.

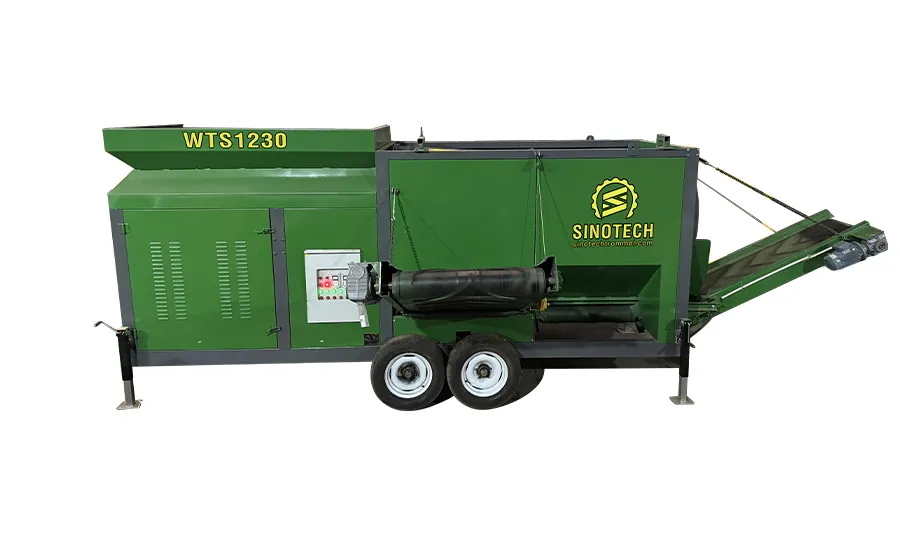

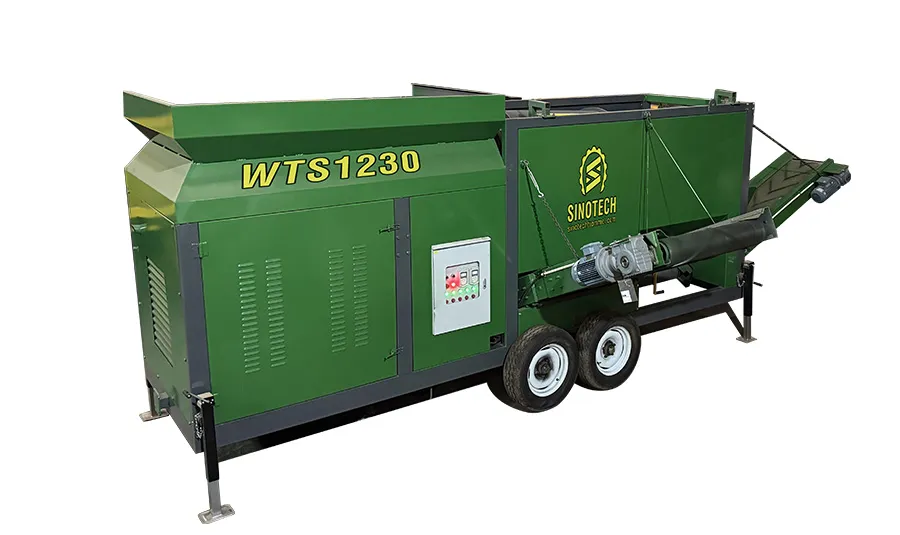

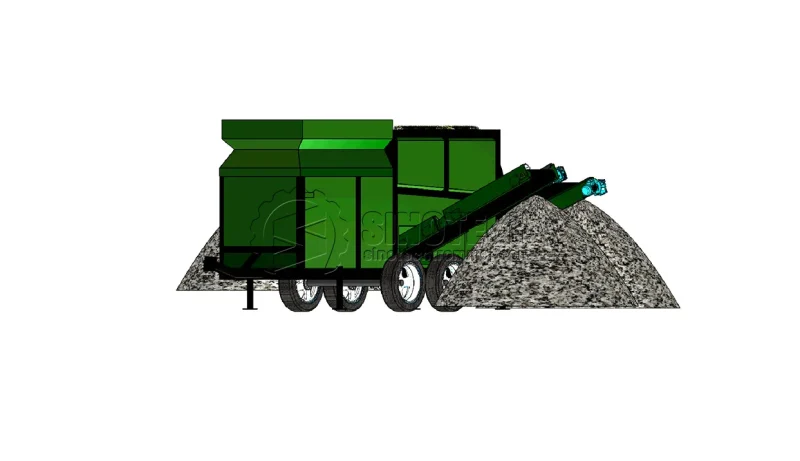

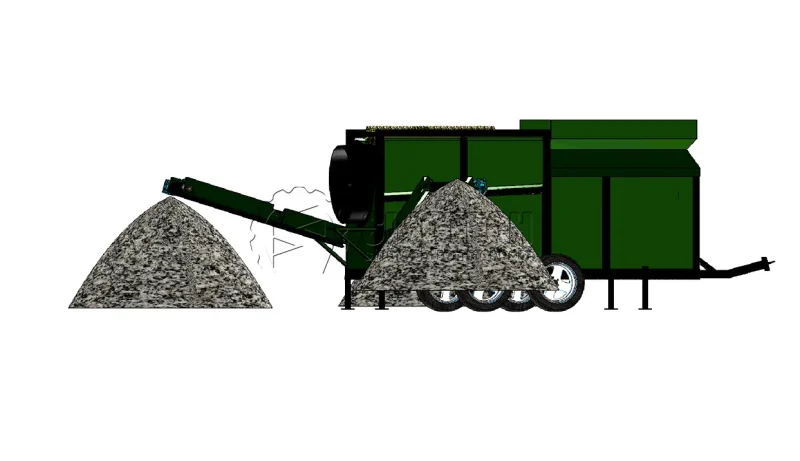

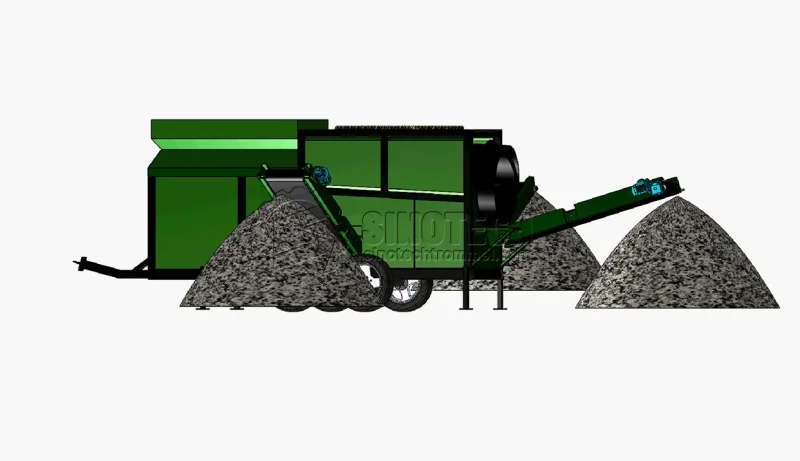

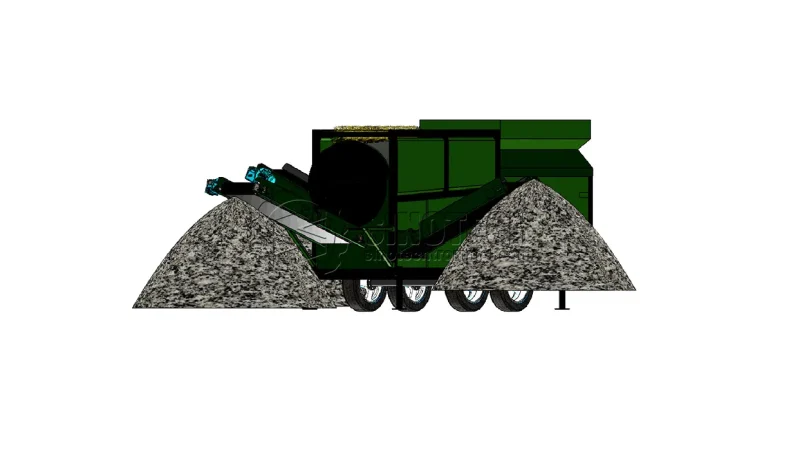

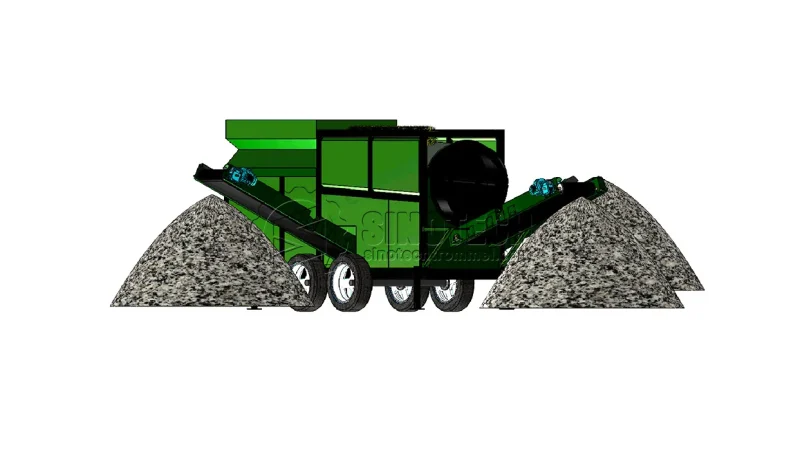

WTS1230 Trommel Screen for 3 Fractions
Screen your own Sand, Dirt, and Soil on-site to reduce hauling costs, eliminate waste, and create clean, sellable products.
The WTS1230 Trommel Screen is the ultimate tool for precise material separation, perfect for handling sand, topsoil, compost, gravel, and construction waste. Its effective rotary action ensures fine particles are consistently separated from bulk materials. Built for high efficiency, the WTS1230 consistently delivers cleaner, accurately sized product.
Featuring a large drum (3000mm L x 1200mm D), the WTS1230 guarantees high capacity. It runs smoothly with a Hardened Gear Reducer for low noise and long life. Maintenance is simplified by a self-cleaning brush that actively prevents screen clogging. Customizable single or double screens allow for tailored material gradation.

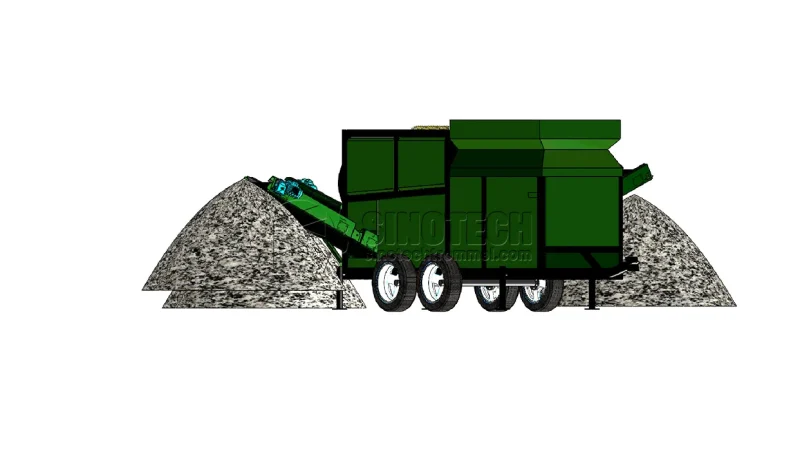

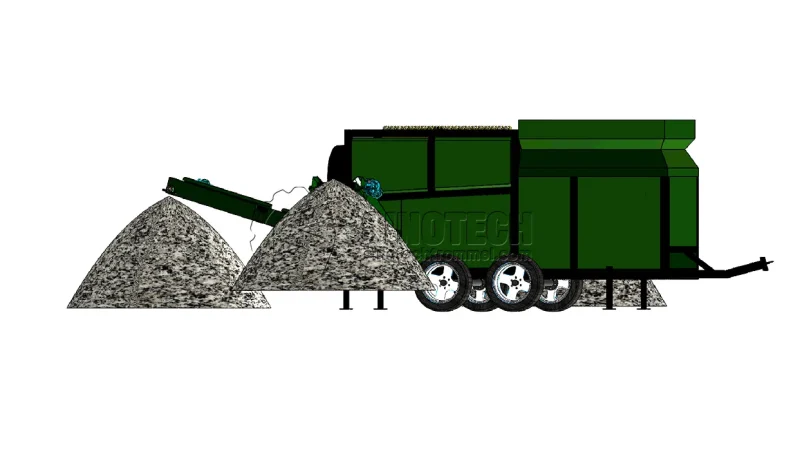

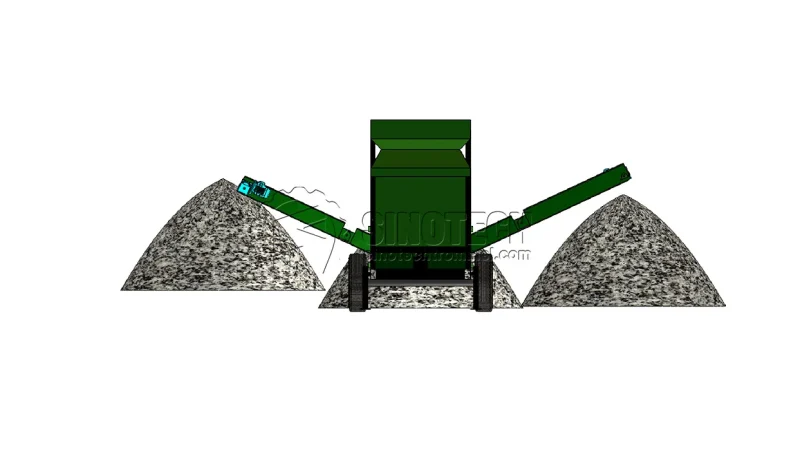

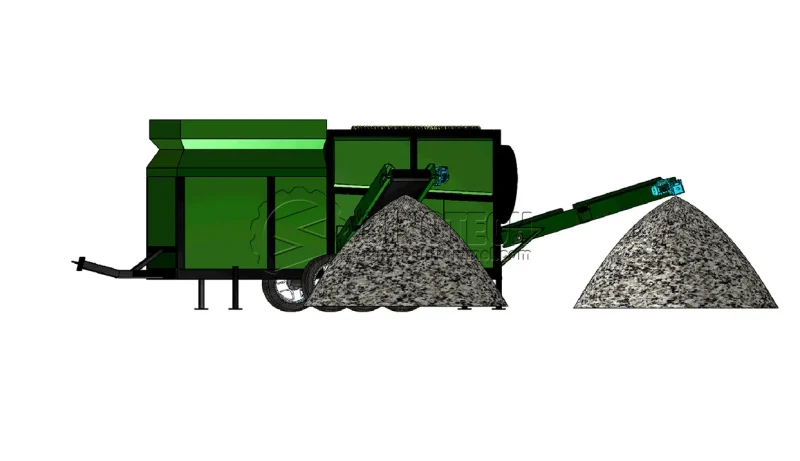

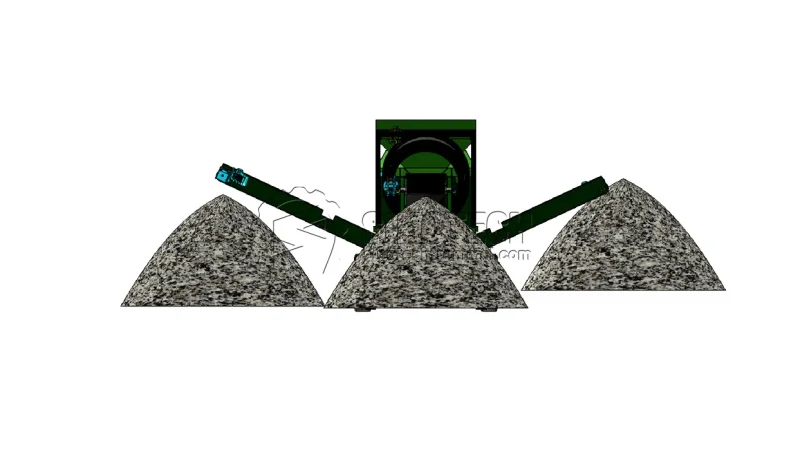

Unique to the WTS1230 is its powerful material handling setup: two side conveyors and one tail conveyor. This advanced system allows the machine to achieve one-time, simultaneous screening and output of three different material sizes. Maximize your productivity and minimize handling costs with this superior separation capability.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 30-70m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1200 | |
| Trommel length (mm) | 3000 | |
| Screening area approximately (m²) | ≈9.6 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2290 |
| Feed hopper width (mm) | 1520 | |
| Volume (m³) | ≈1.42 | |
| Transportation dimensions | Transportation status length (mm) | 5855 |
| Transportation status width (mm) | 1800 | |
| Transportation status height (mm) | 2255 | |
| Weight (kg) | ≈4200 | |
Trommel Drum: The screen features an internal spiral design which actively moves material forward during rotation, ensuring the material is evenly screened for maximum efficiency.

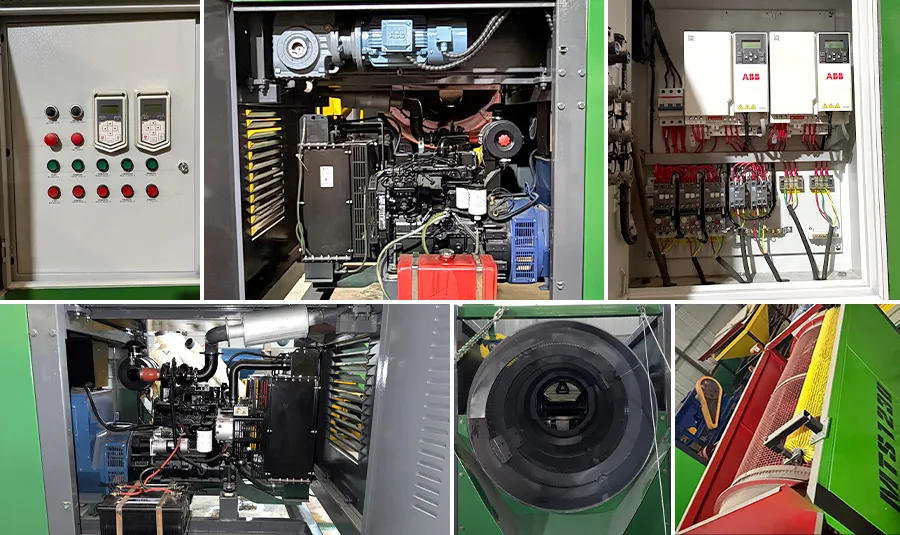

Control Cabinet: The machine is powered by a premium ABB frequency conversion control cabinet. This system allows for precise drum speed adjustment and convenient, comprehensive control over the machine’s operation.

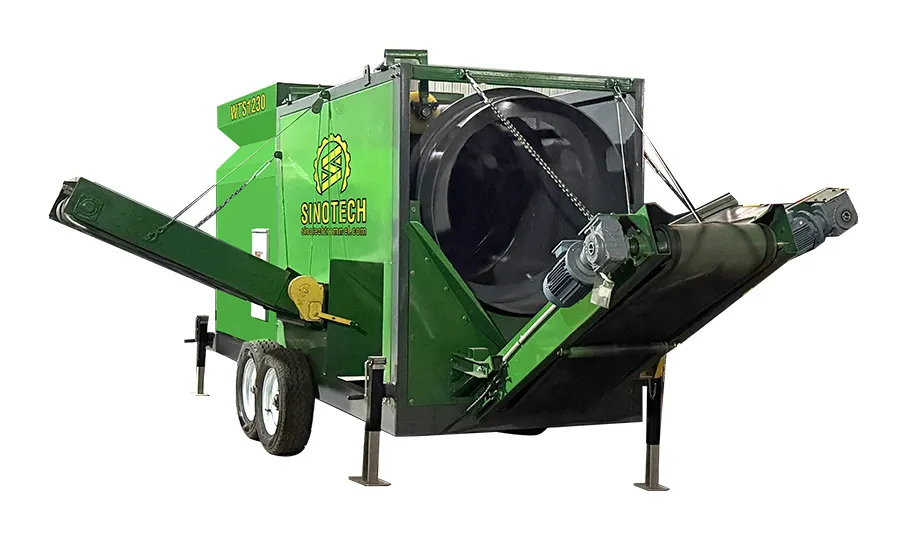

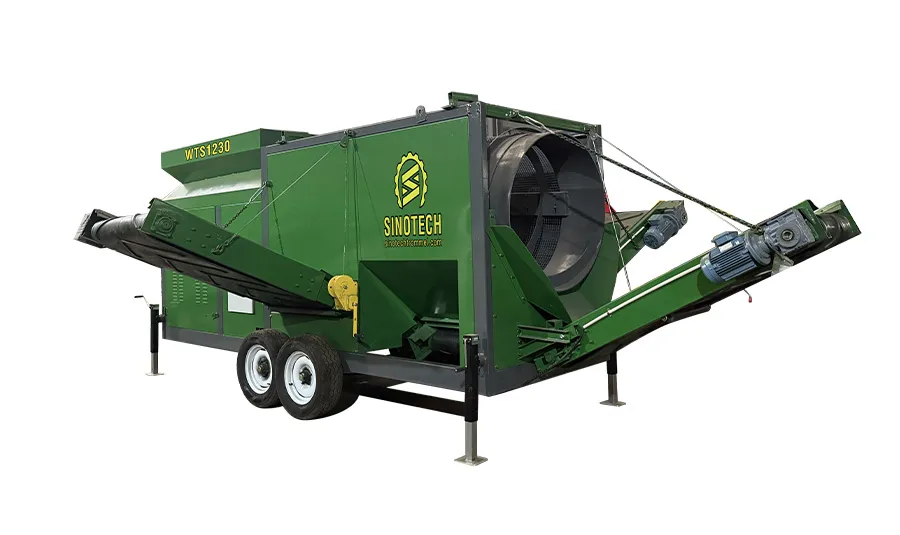

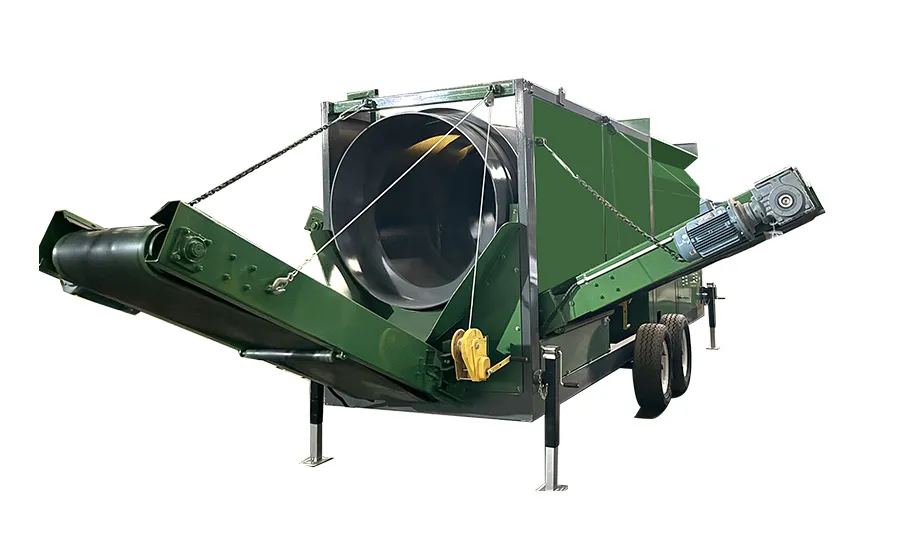

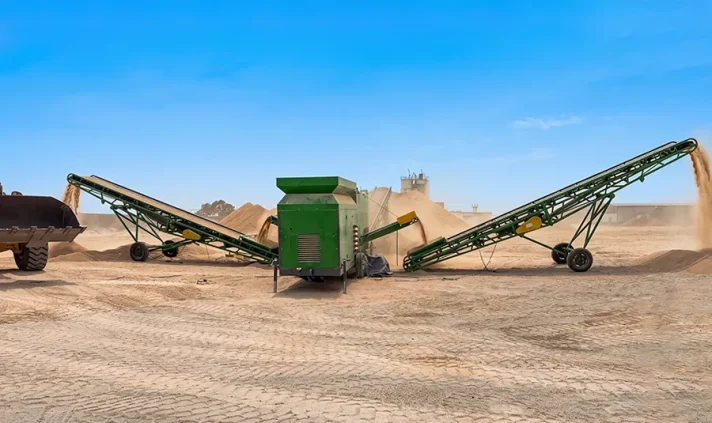

Conveyor System: The machine is equipped with two foldable side conveyors and one powerful tail discharge conveyor, enabling the output of three different material sizes in a single pass.
Side Conveyor Portability: The side conveyors are fitted with hand handles and can be easily folded away, greatly simplifying machine storage and transport when not in operation.
Tail Conveyor Design: The tail discharge belt uses a robust ring-shaped herringbone pattern, which significantly increases friction and ensures reliable transport of challenging or wet materials.
Anti-Clogging Brushes: Durable brushes, made from high-quality nylon and using flocking technology, continuously clean the screen, effectively preventing screen blinding and clogging to maintain peak performance.
