Price: $7,000 - 9,500 (Limited Time Offer: 8% OFF!)
Lead Time: Approximately 20 business days
Capacity: 15 - 40 m³/h
Power Options: Diesel or Electric
Screening Surface: 6.93 m²
Weight: max. 2140 kg
Processed Materials: Solid Waste, C&D Debris, Dirt, Topsoil, Gravel, Wood Chips, and all Organic & Mineral Aggregates.
Factory Direct Shipping to Oceania, EU, and the US, Globally
Robust, Eco-Friendly, and Highly Customizable Screening Solution Featuring Up to 64 t/h Capacity for Construction and Waste Management.

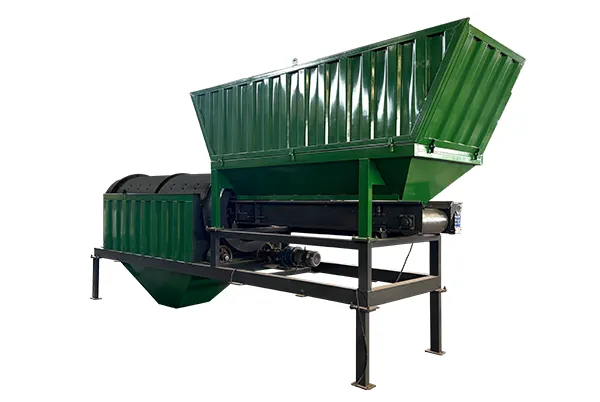

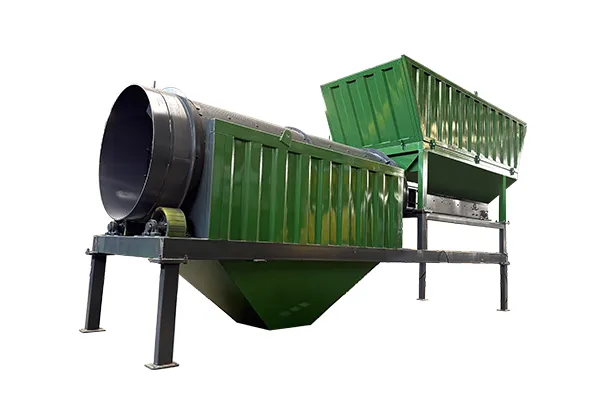

The SINOTECH TS1030 Stationary Trommel Screen is a highly efficient and powerful screening machine that perfectly balances environmental sustainability with outstanding performance. Driven by a reliable electric motor (with an optional diesel generator set available), this unit offers a formidable screening capacity of up to 64 tons per hour, effortlessly handling diverse materials ranging from excavated soil and rocks to heavy construction rubble.
Weighing only 2.14 tons, the TS1030 is engineered for easy mobility, loading, and installation. For ultimate site adaptability, it features integrated forklift mounts for convenient transport and adjustable support legs. To perfectly match your specific operational needs, this model is highly customizable, offering optional side and tail conveyors alongside an inclined feed grid.
Equipped with a robust SEW gear motor and an advanced electronic load-sensing control system, the TS1030 continuously optimizes your workflow to maximize throughput. With its quick-change screen design minimizing downtime, this machine is the ultimate choice for construction firms, landscaping companies, and waste management professionals who build their business on productivity and reliability.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 30-70 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1000 | |
| Trommel length (mm) | 3000 | |
| Screening area approximately (m²) | ≈6.93 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 2350 |
| Feed hopper width (mm) | 1500 | |
| Volume (m³) | ≈1.94 | |
| Transportation dimensions | Transportation status length (mm) | 5380 |
| Transportation status width (mm) | 1520 | |
| Transportation status height (mm) | 2250 | |
| Weight (kg) | ≈2560 | |
Handles diverse materials, from mixed waste to topsoil, with a robust screening capacity of up to 40 m³/h (64 t/h).
Swiftly replace interchangeable mesh media to perfectly match your project's varied requirements, minimizing downtime.
Driven by a reliable electric motor with a robust German-engineered SEW gearmotor, ensuring consistent, efficient performance for heavy loads.

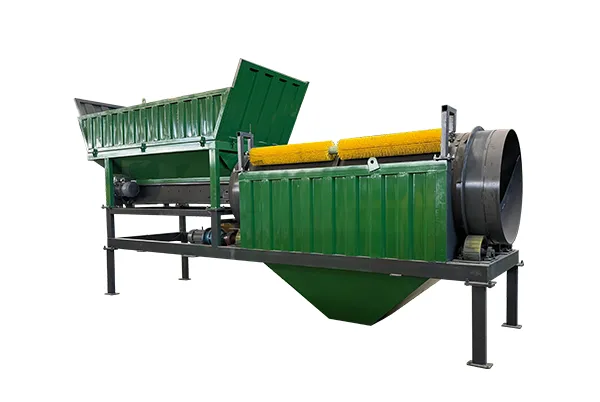

A powerful top-mounted rotating cleaning brush continuously cleans the mesh surface for nonstop, smooth material flow.
Engineered with multiple access points, integrated forklift mounts, and quick-release screens for fast, hassle-free upkeep and simplified service.
Features a durable steel frame, adjustable support legs, and a rigid design for stable, long-term screening performance in permanent installations.
