Price: $1,570-2,770
Capacity: 80-1500m³/h
Belt width: 500-1400mm
Stockpiling capacity: 1000t/h.
Application areas: Sand Screening,Coal,Gravel,Aggregates,Recycling,Demolition,Construction Waste,Heavy Overburden,Iron Ore,Topsoil,Rock
The Handling Materials and Applicaiton of Belt Conveyor

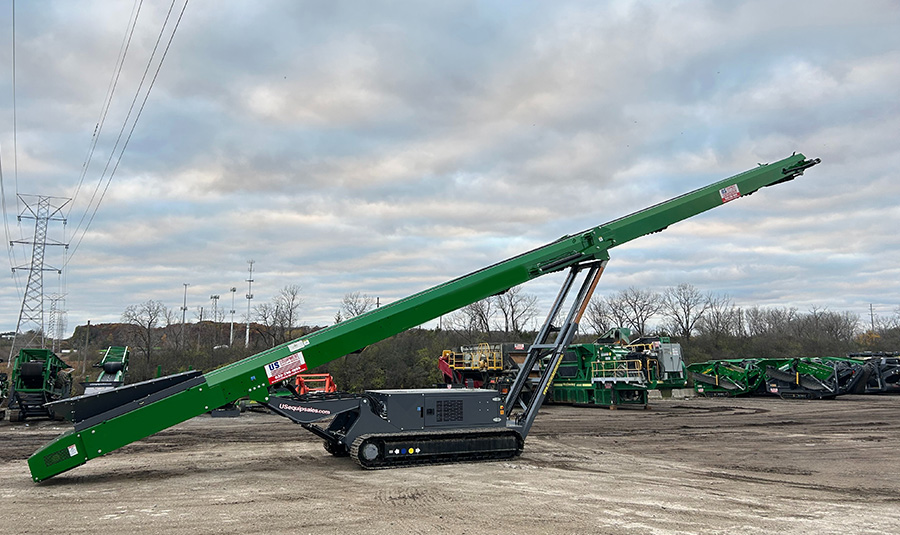

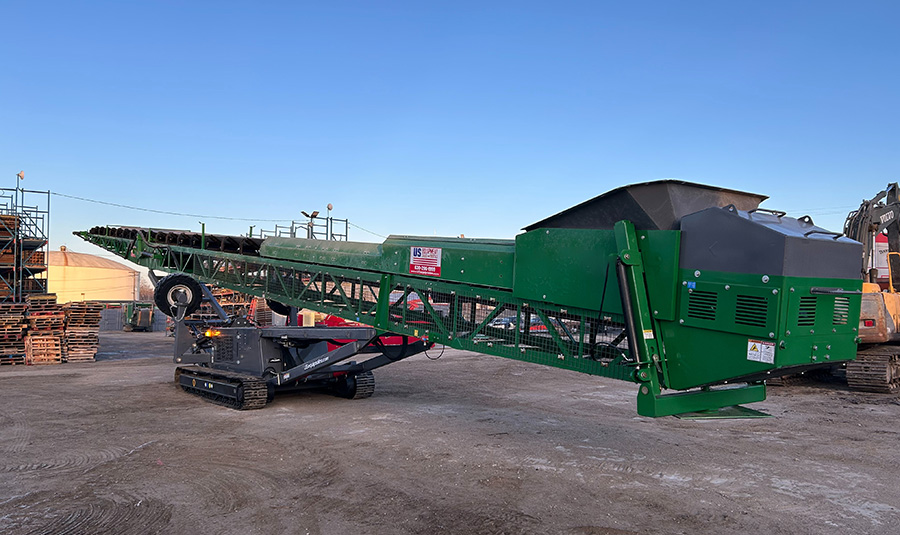

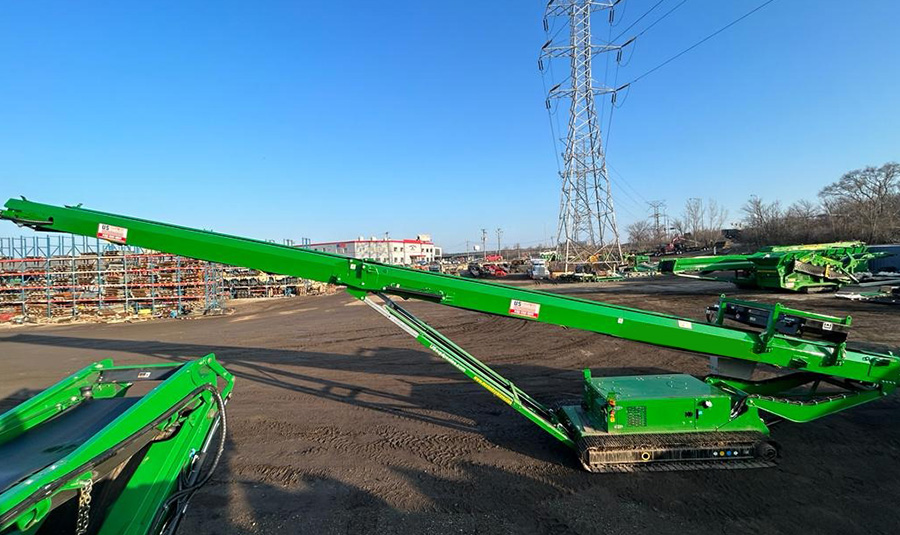

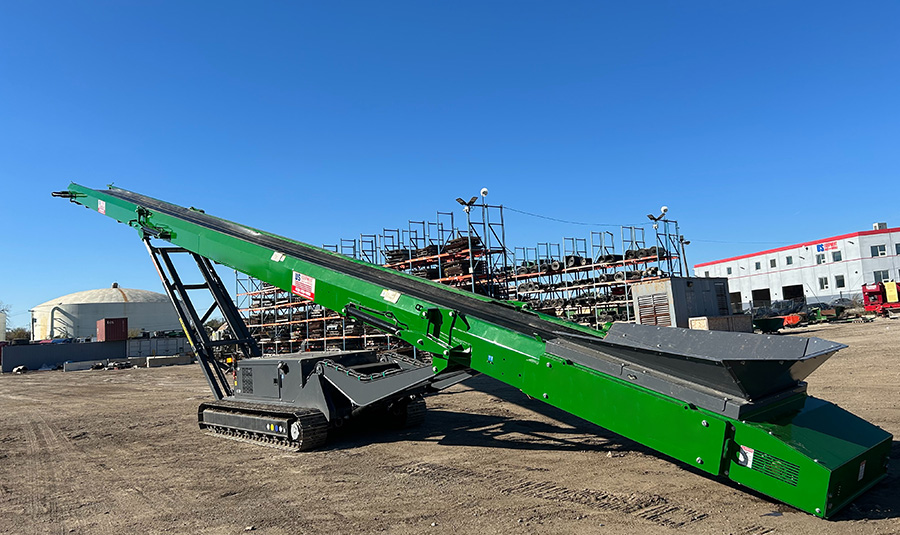

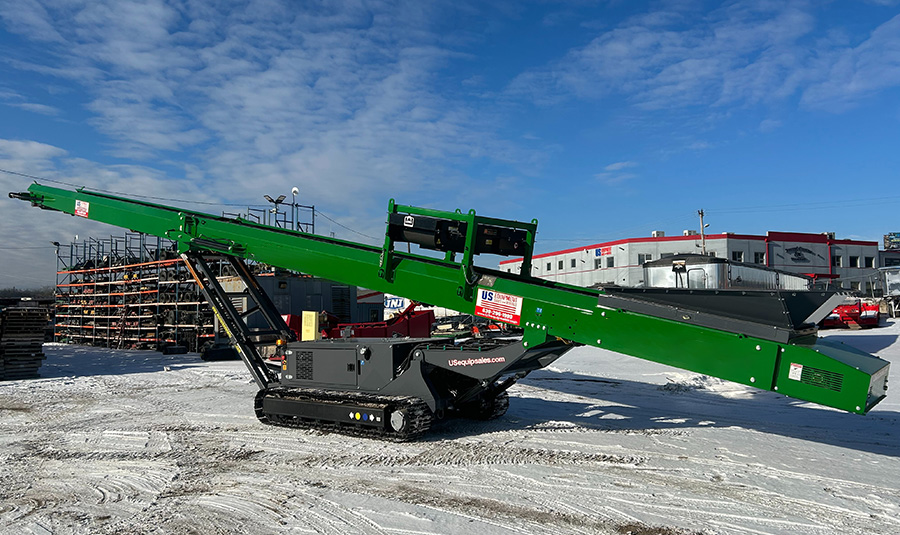

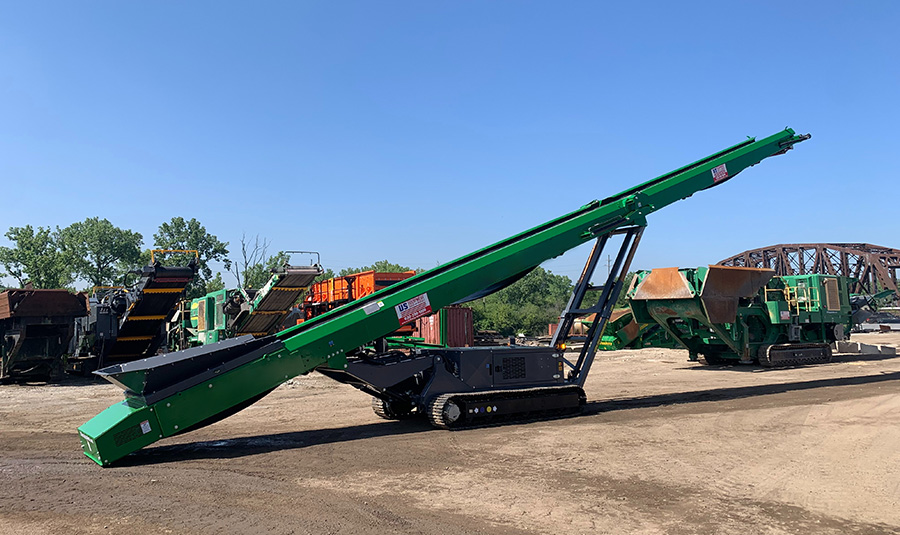

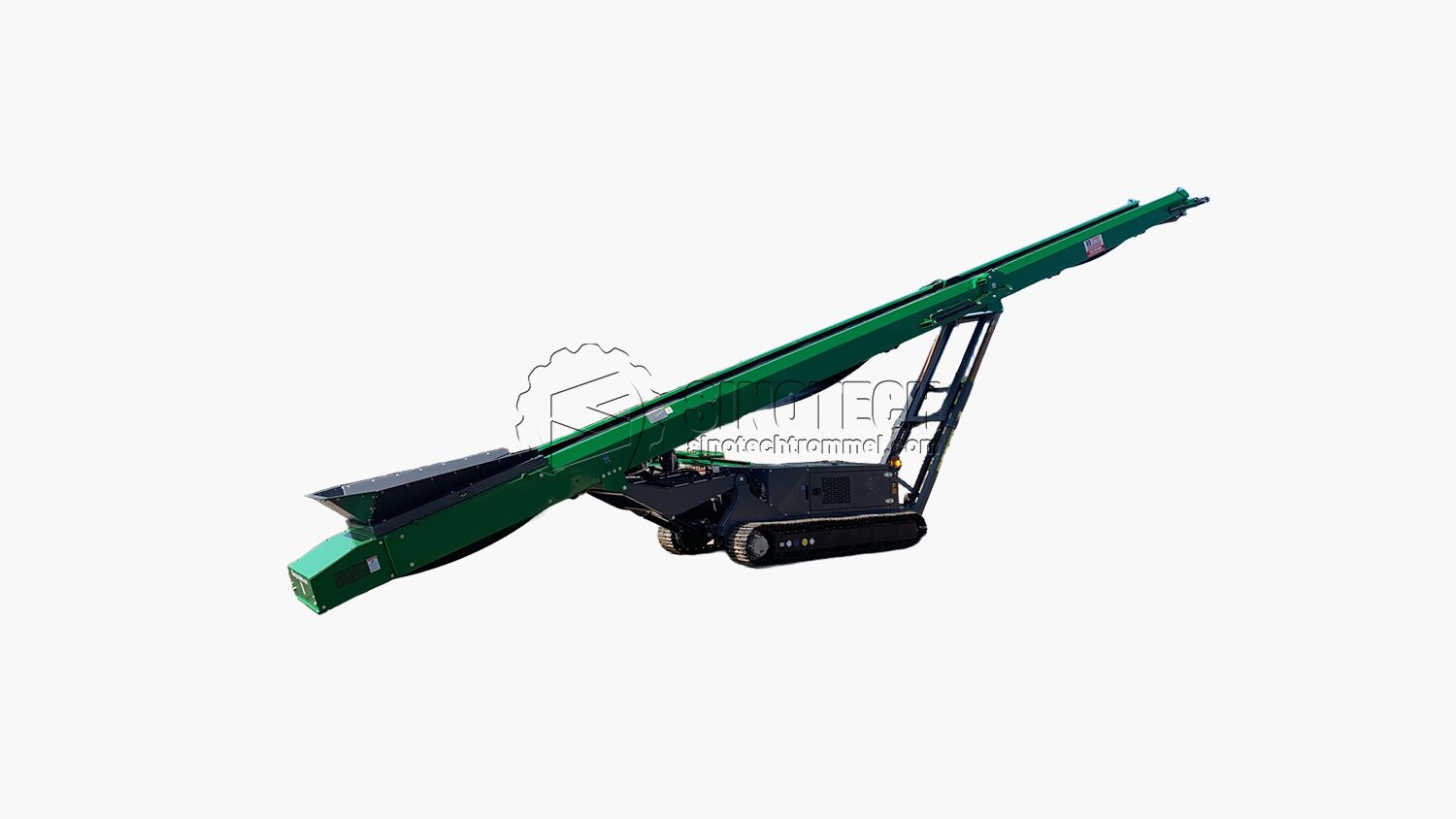

Built for the harshest environments, the tracked conveyor keeps screeners and crushers at peak performance. Single or multiple units handle material transfer over various distances, link disparate machinery, and enable cross-country operations. Sinotech's tracked stockpile solution is ideal for diverse applications and material types.
| Technical data | ||||||
| Model | Belt width (mm) | Maximum material force (mm) | Capacity Q (t/h) | Conveying length L(m) | Power (kw) | Conveying speed (m/s) |
| B500 | 500 | 0~100 | 80-100 | L≤10 | 4 | 0.8-1.6 |
| 10＜L≤22 | 5.5 | |||||
| 22＜L≤46 | 7.5 | |||||
| B650 | 650 | 0~130 | 150-200 | 6＜L≤19 | 7.5 | 0.8-1.6 |
| 19＜L≤44 | 11 | |||||
| 44＜L≤50 | 15 | |||||
| B800 | 800 | 0~180 | 250-300 | 8＜L≤23 | 11 | 0.8-1.6 |
| 23＜L≤38 | 15 | |||||
| 38＜L≤50 | 18.5 | |||||
| B1000 | 1000 | 0~250 | 400-500 | L≤11 | 11 | 1.25-1.6 |
| 11＜L≤20 | 15 | |||||
| 20＜L≤28 | 18.5 | |||||
| 28＜L≤36 | 22 | |||||
| 36＜L≤50 | 30 | |||||
| B1200 | 1200 | 0~300 | 600-700 | L≤10 | 15 | 1.25-1.6 |
| 10＜L≤16 | 18.5 | |||||
| 16＜L≤22 | 22 | |||||
| 22＜L≤35 | 30 | |||||
| 35＜L≤45 | 37 | |||||
| 45＜L≤50 | 45 | |||||
| B1400 | 1400 | 0~350 | 1000-1500 | L≤9 | 22 | 1.6-2 |
| 9＜L≤16 | 30 | |||||
| 16＜L≤20 | 37 | |||||
| 20＜L≤28 | 45 | |||||
| 28＜L≤36 | 55 | |||||
| 36＜L≤50 | 75 | |||||
Stockpiling capacity: 1000t/h.
Feed size: ≤350mm. Conveyor length: 15-30m.
Continuously fed by any primary/secondary crusher or screener, boosting productivity and efficiency.
Eliminates wheel loader double-handling.
Hydraulic height adjustment minimizes impact and optimizes transfer; hydraulically folds for quick, easy transport.
Heavy-duty tracked frame suits any environment. Halves fuel burn vs. wheel loaders.
