Price: $5,000-45,000
Lead Time: Approximately 30 business days
Capacity: 20-260m³/h
Weight: max. 13000kg
Application areas: Municipal domestic waste, construction and renovation waste, stale landfill waste, industrial solid waste treatment, garden waste and organic waste, Green Waste, Composting.
Factory Direct Shipping to Oceania, EU, and the US, Globally

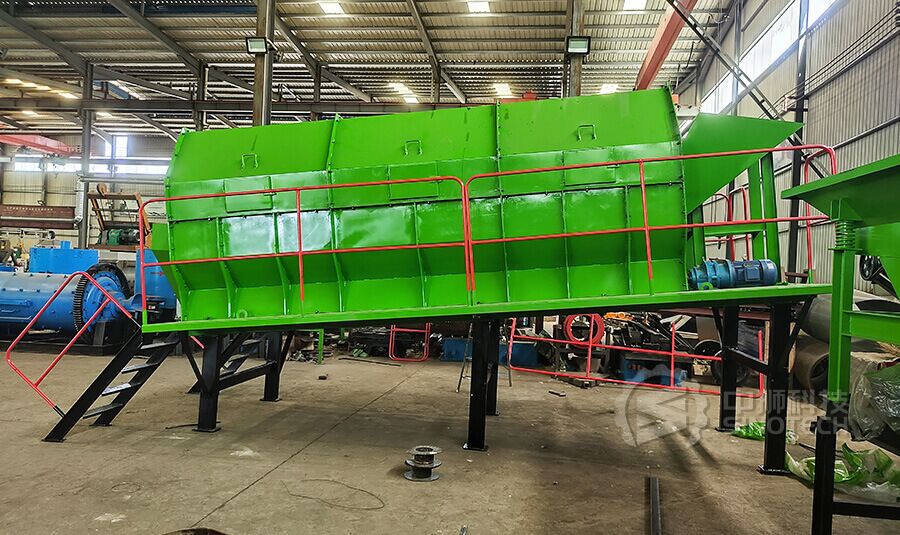

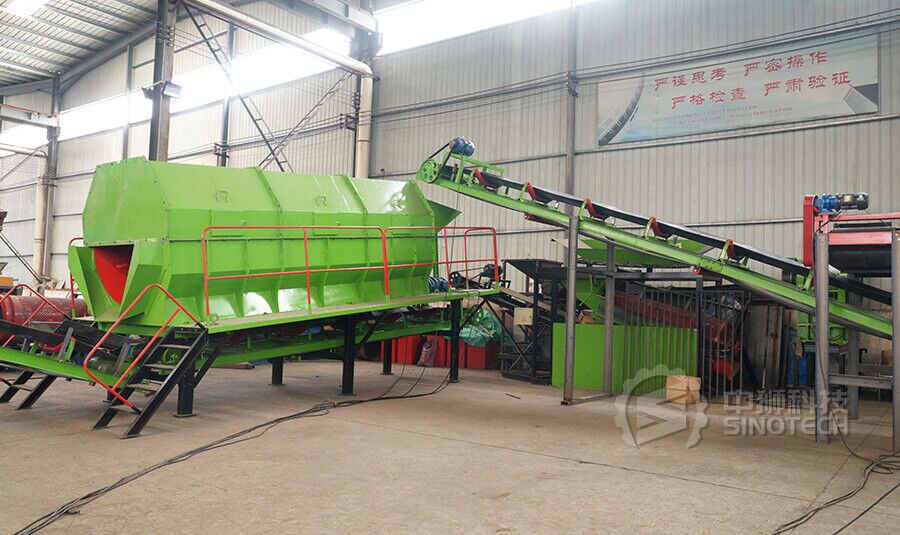

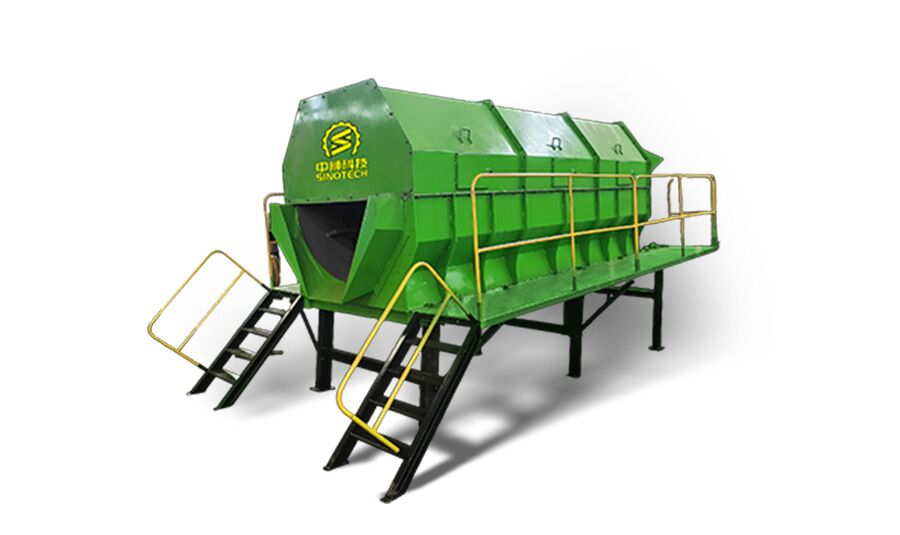

Waste processing trommel screen (also known as waste sorting trommel screen or solid waste trommel screen) is a kind of equipment specially used for the treatment of solid waste such as municipal domestic waste, industrial waste, construction waste, etc. It realizes the size sorting, resource recycling and pre-processing of the waste through the rotation of drums and grading of the sieve holes.

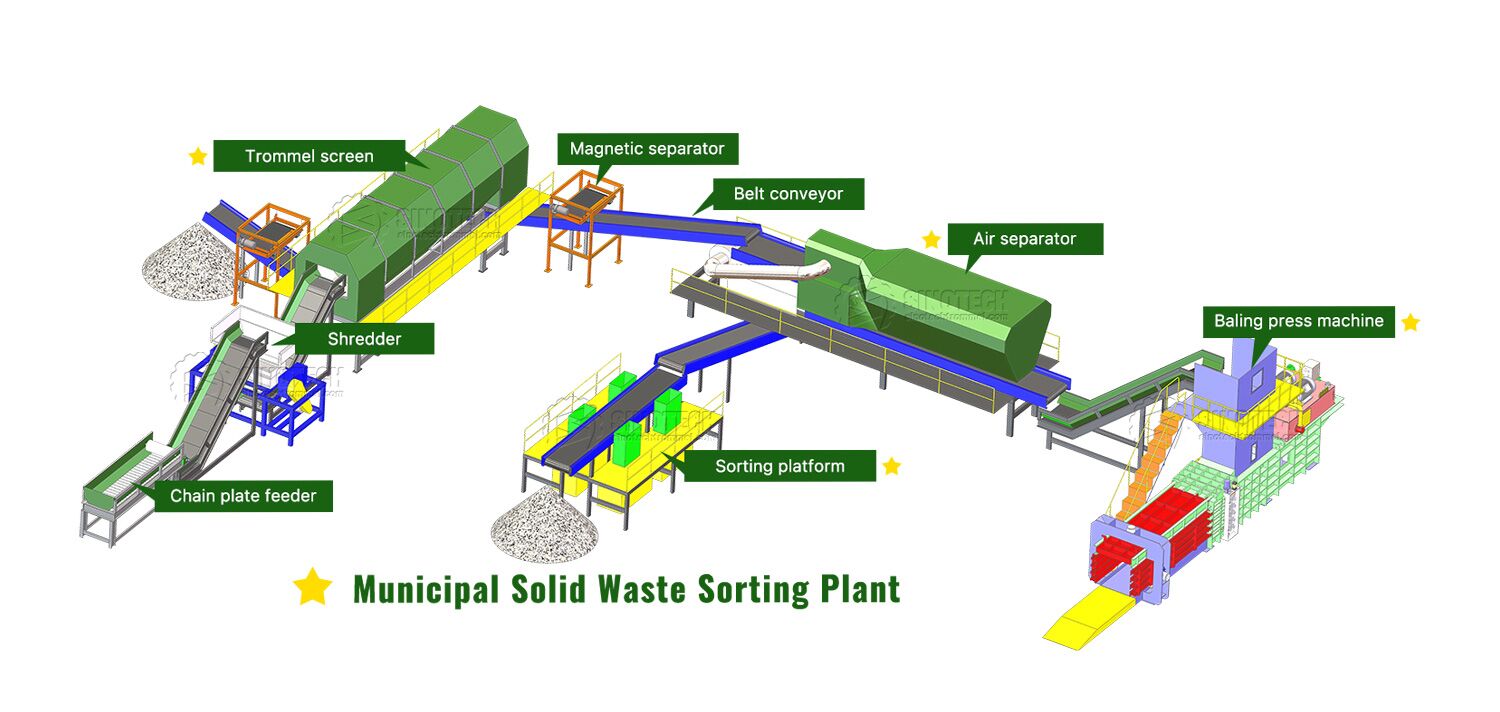

The waste processing trommel screen is often used as the core equipment of the sorting line. The typical process is as follows:
Waste feeding → bag breaking/crushing → trommel screening → magnetic separation (metal recovery) → wind separation (light material separation) → resource utilization.
Advantage:
Multi-stage sorting: different aperture screens (e.g. 10mm~300mm) can be configured to realize multi-stage sorting of coarse, medium and fine.
Adaptation to complex materials: corrosion-resistant design, can handle high humidity, high viscosity waste (such as food waste).
Automation integration: linkage with magnetic separator, wind separator, crusher and other equipment to form a complete sorting line.
| Technical data | ||||||
| Model | Trommel diameter(mm) | Trommel length(mm) | Capacity(m³/h) | Power（kw) | Dimension(LXWXH)(mm) | weight(t) |
| TS1230 | 1200 | 3000 | 20-60 | 4 | 4100x1500x3000 | 1.8t |
| TS1550 | 1500 | 5000 | 40-90 | 11 | 6300x1900x3800 | 4.2t |
| TS1860 | 1800 | 6000 | 50-130 | 15 | 7500x2150x4500 | 5.8t |
| TS2080 | 2000 | 8000 | 60-160 | 30 | 9700x2250x4950 | 8t |
| TS2510 | 2500 | 10000 | 85-260 | 44 | 12000x2900x5500 | 13t |
| Any change of technical date shall not be advised additionally. | ||||||
Environmental Protection & Dust Control: Equipped with a sealed cover to minimize dust spillage and comply with strict environmental regulations.
Optional Spraying System: Suppresses dust and efficiently cleans materials for a safer and cleaner worksite.
Modular Screen Design: Bolt-in screen media allows quick replacement without removing the drum, reducing downtime.
Durable Wear-Resistant Rollers: Long-lasting rollers with a polyurethane four-wheel drive system ensure continuous operation and maximum efficiency.
Easy Maintenance Access: Multiple inspection and service points simplify maintenance and reduce operational interruptions.
Adjustable Cleaning Brushes: Ground-level brushes keep the screen surface clean for consistent performance.
