Price: $1,570-2,770
Capacity: 80-1500m³/h
Belt width: 500-1400mm
Application areas: Sand Screening,Coal,Gravel,Aggregates,Recycling,Demolition,Construction Waste,Heavy Overburden,Iron Ore,Topsoil,Rock
The Handling Materials and Applicaiton of Belt Conveyor

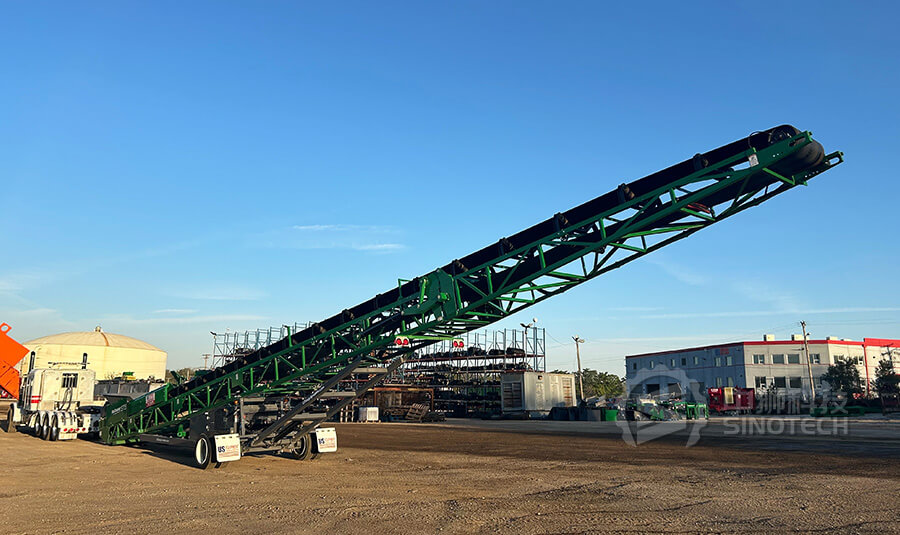

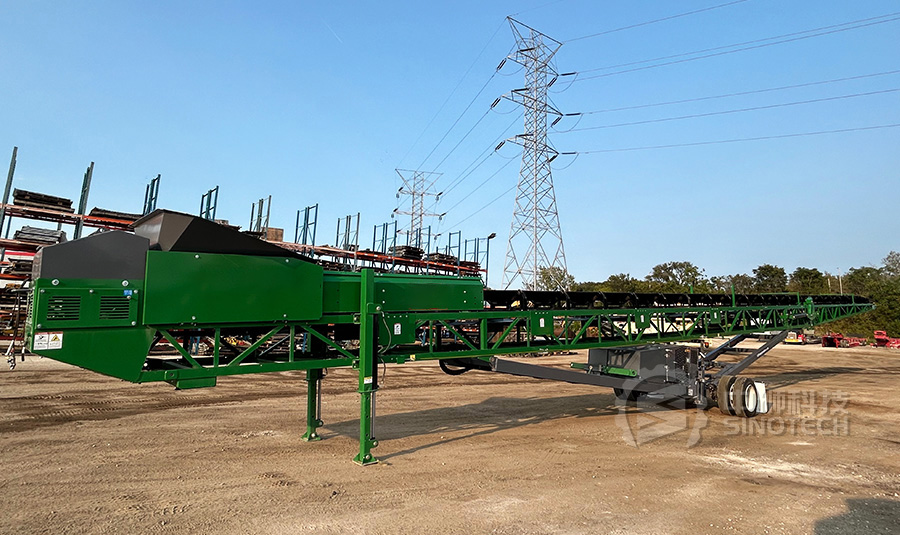

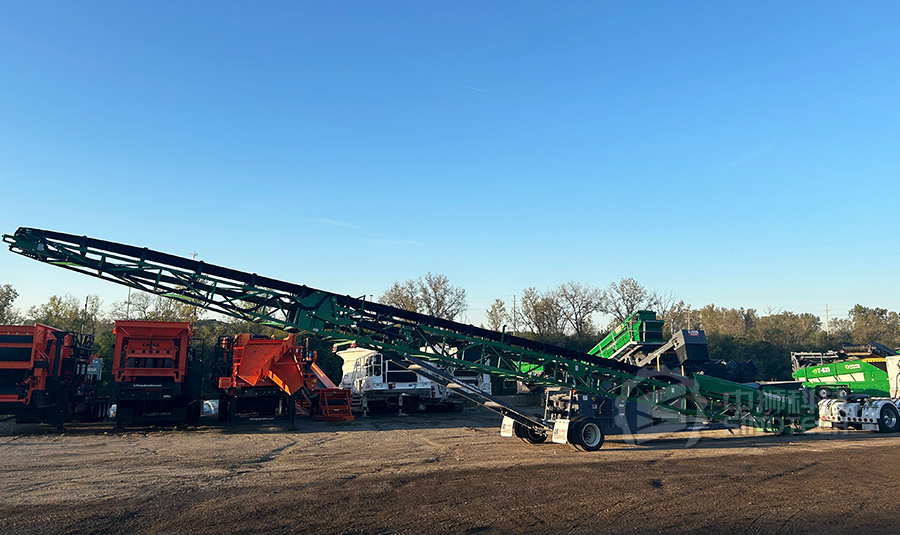

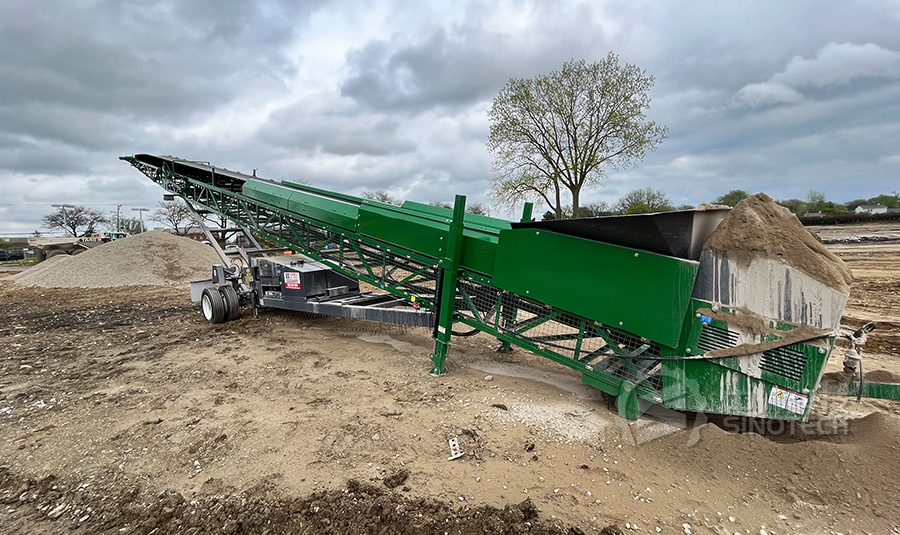

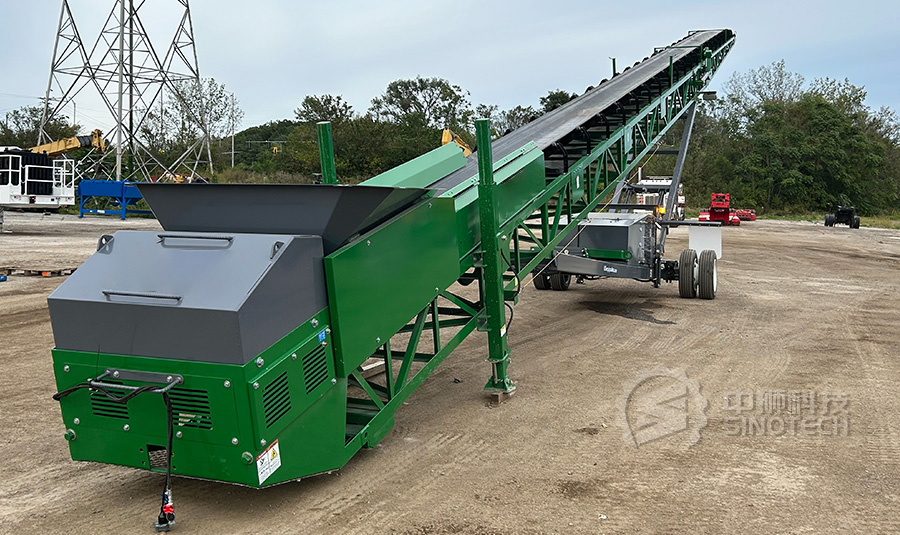

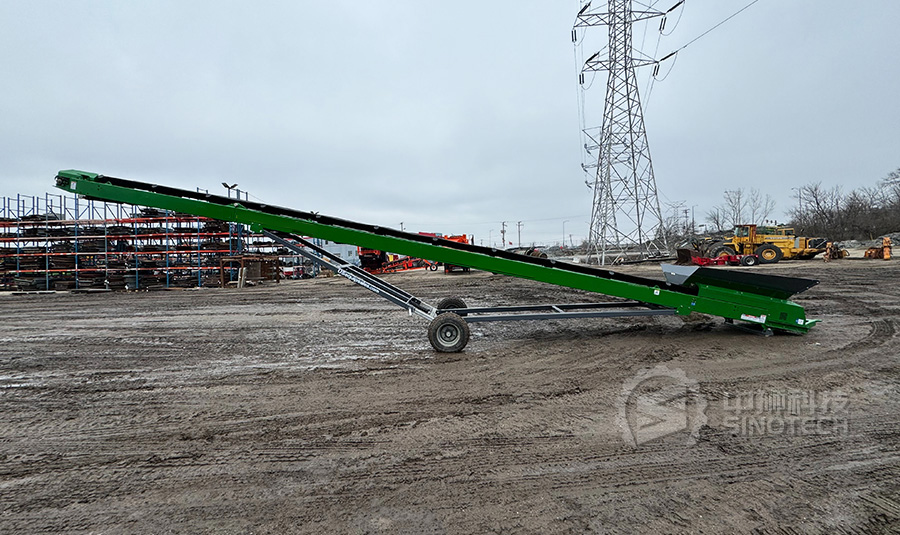

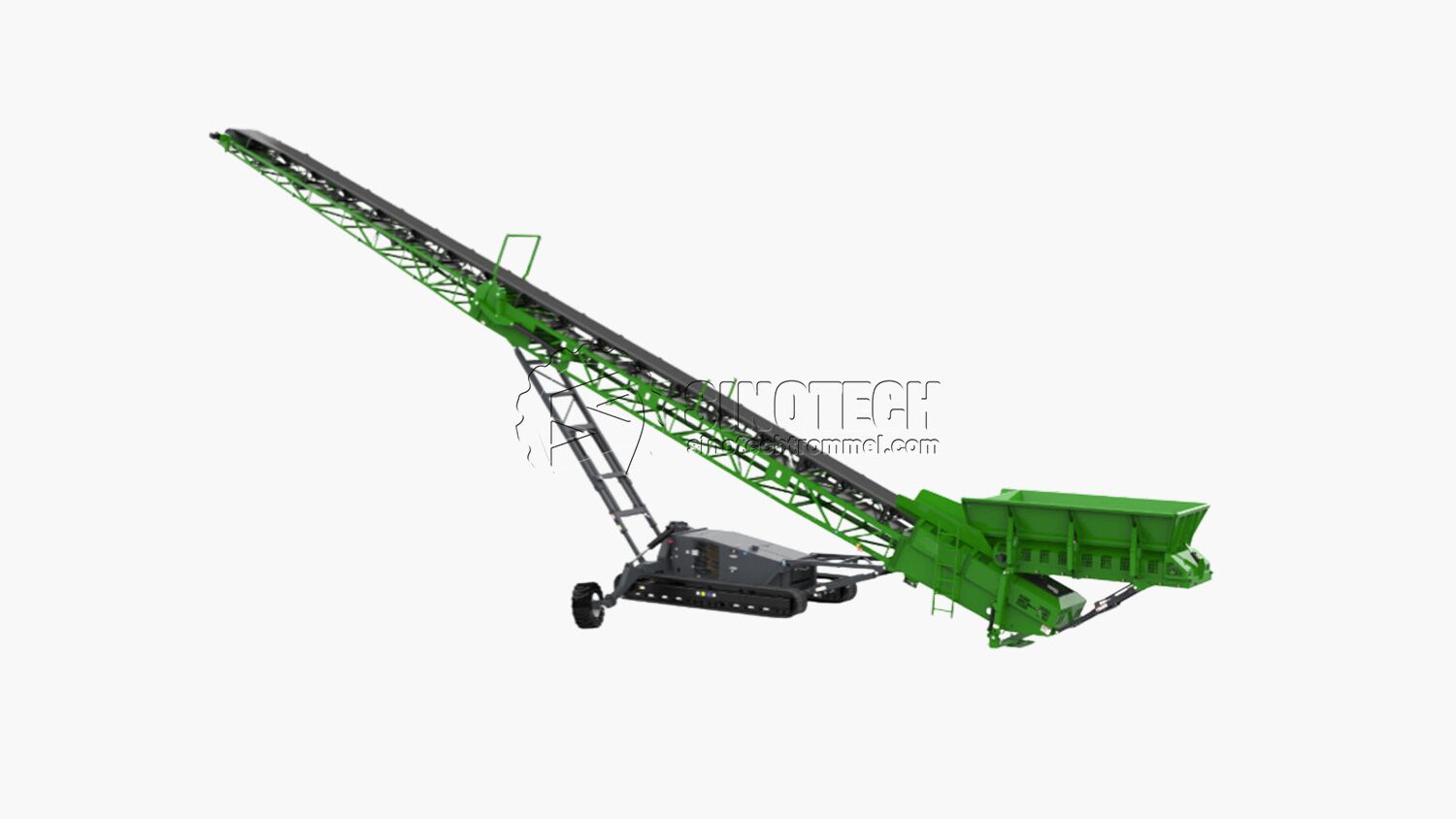

The wheeled radial mobile conveyors break through the design style of traditional fixed conveyors and adopts a large-section curved beam design, which makes the structure more solid and durable. A variety of drive options are available; the simple and economical mobile concept will bring you continuous profits.
| Technical data | ||||||
| Model | Belt width (mm) | Maximum material force (mm) | Capacity Q (t/h) | Conveying length L(m) | Power (kw) | Conveying speed (m/s) |
| B500 | 500 | 0~100 | 80-100 | L≤10 | 4 | 0.8-1.6 |
| 10＜L≤22 | 5.5 | |||||
| 22＜L≤46 | 7.5 | |||||
| B650 | 650 | 0~130 | 150-200 | 6＜L≤19 | 7.5 | 0.8-1.6 |
| 19＜L≤44 | 11 | |||||
| 44＜L≤50 | 15 | |||||
| B800 | 800 | 0~180 | 250-300 | 8＜L≤23 | 11 | 0.8-1.6 |
| 23＜L≤38 | 15 | |||||
| 38＜L≤50 | 18.5 | |||||
| B1000 | 1000 | 0~250 | 400-500 | L≤11 | 11 | 1.25-1.6 |
| 11＜L≤20 | 15 | |||||
| 20＜L≤28 | 18.5 | |||||
| 28＜L≤36 | 22 | |||||
| 36＜L≤50 | 30 | |||||
| B1200 | 1200 | 0~300 | 600-700 | L≤10 | 15 | 1.25-1.6 |
| 10＜L≤16 | 18.5 | |||||
| 16＜L≤22 | 22 | |||||
| 22＜L≤35 | 30 | |||||
| 35＜L≤45 | 37 | |||||
| 45＜L≤50 | 45 | |||||
| B1400 | 1400 | 0~350 | 1000-1500 | L≤9 | 22 | 1.6-2 |
| 9＜L≤16 | 30 | |||||
| 16＜L≤20 | 37 | |||||
| 20＜L≤28 | 45 | |||||
| 28＜L≤36 | 55 | |||||
| 36＜L≤50 | 75 | |||||
The heavy steel structure design, firm structure, applicable to the harsh environment of the mine field and port operation.
Removable counterweight bracket, the user can choose local site material as the counterweight, easy to move.
The wheels used for site movement are repositioned to perform the radial function, can turn 360°.
Eliminates the need for wheel loaders to build stockpiles, reducing labor and maintenance costs.
ydraulic folding allows easily containerized allowing for global transportation.
Optional power sources diesel, direct electric, hybrial power (diesel/electric). Short on-site assembly time, friendly user control interface.
