Price: $3,000-3,500 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 5-20m³/h
Screening surface: 3.14m²
Weight: approx. 750kg
Application areas: Efficiently process Firewood, Dirt, Gravel, Wood Chips, plus all Organic and Mineral Aggregates.
Factory Direct Shipping to Oceania, EU, and the US, Globally

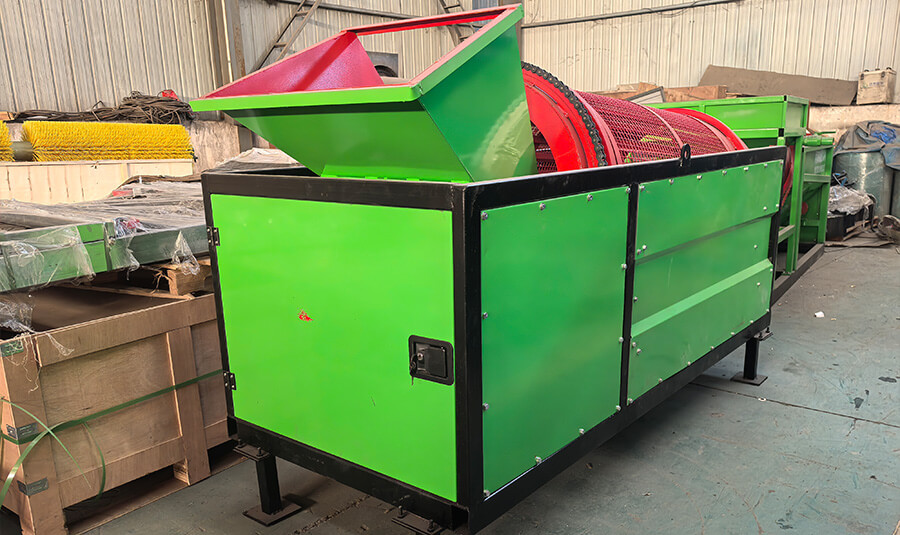

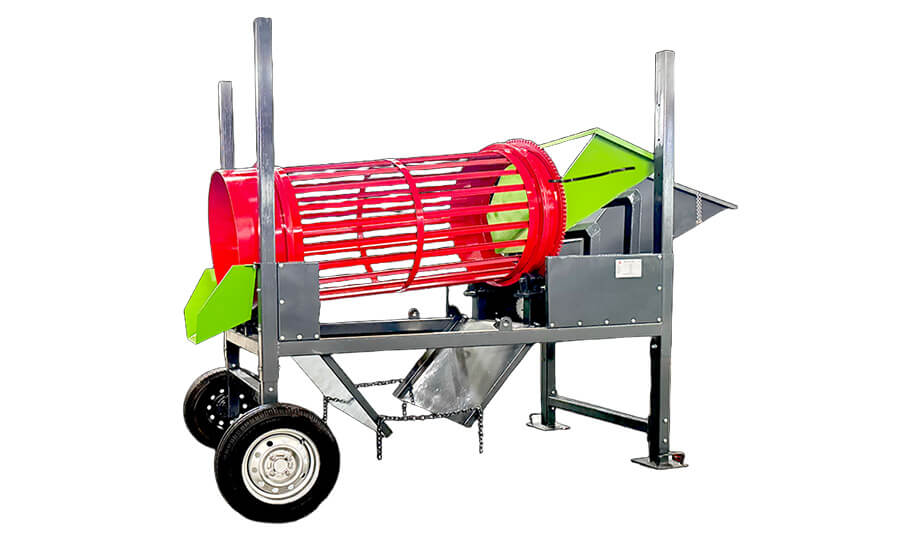

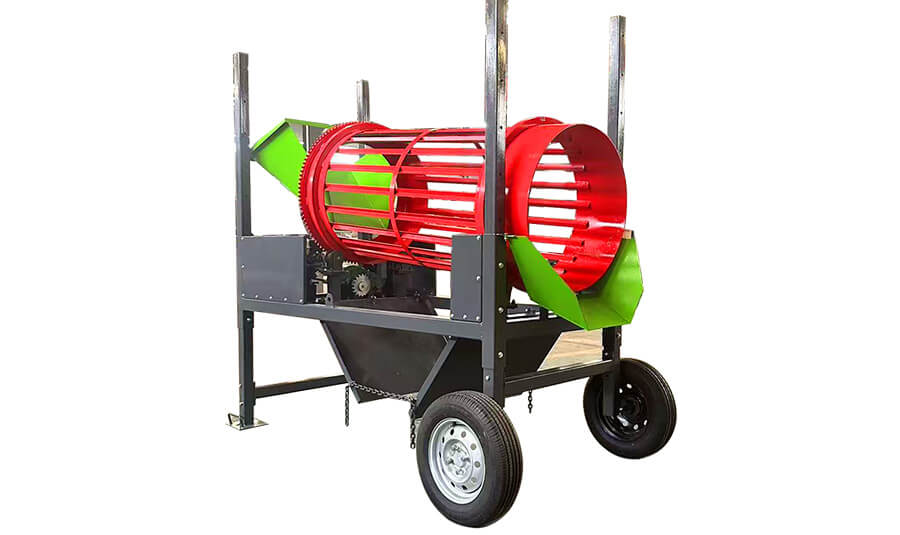

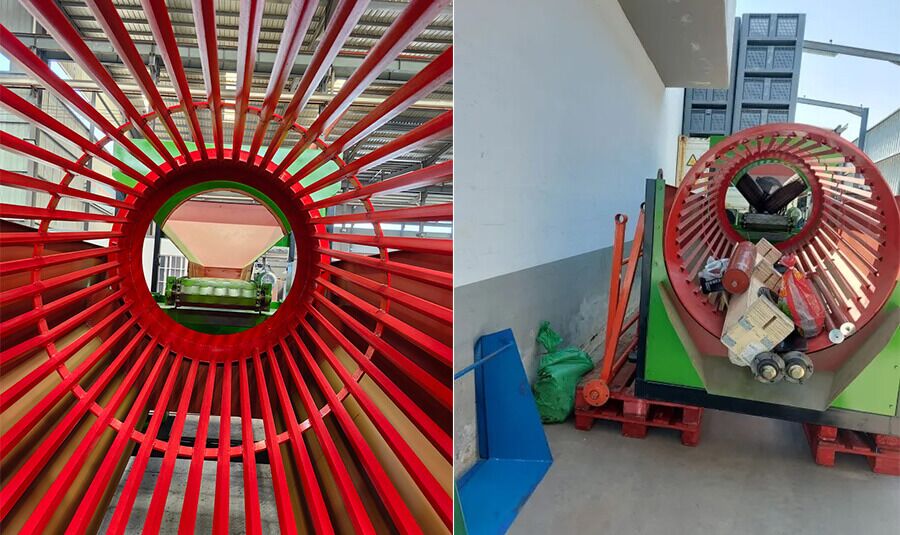

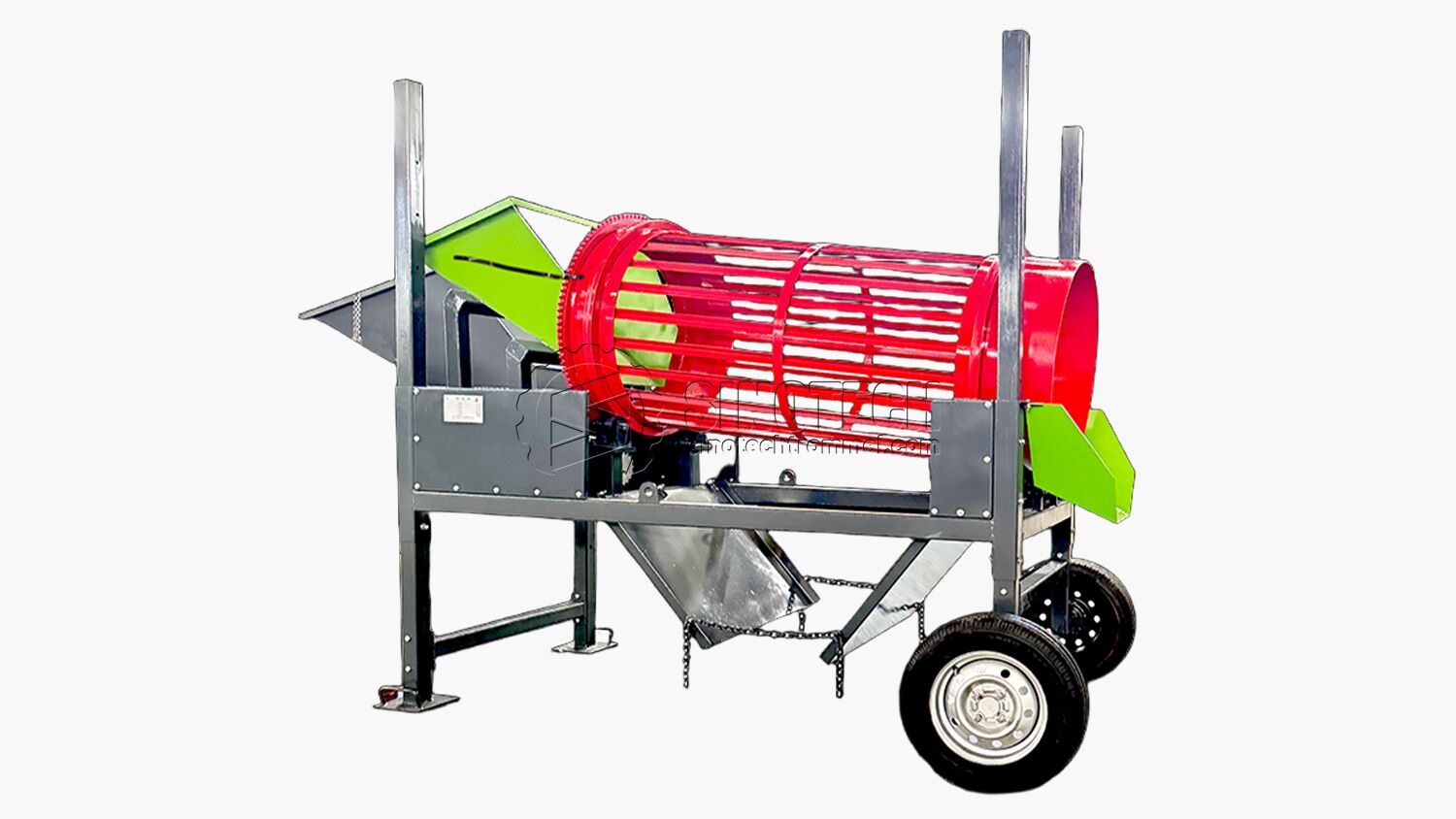

Firewood trommel screen, also known as a firewood tumbler or cleaner, is a device used to separate fines (dirt, gravel, wood chips, etc.) from firewood. It works by feeding firewood into a rotating drum with a mesh screen, where smaller particles fall through while larger firewood pieces continue along the drum and are discharged. This process results in cleaner, more valuable firewood for sale.
Firewood trommel screen is widely used for sorting wood chips, wood chips, straw, branches and other raw materials, to ensure the uniform size of fuel particles, to meet the feeding requirements of biomass power plants, boilers or pellet machines (such as wood pellets, straw pellets). Sorting branches, leaves, barks, etc., to facilitate subsequent crushing, composting or energy utilization.
High-efficiency sorting: adapt to high humidity and sticky materials, not easy to be clogged.
Customizable screen: adjust the screen hole size (e.g. 10mm~100mm) according to the demand.
High degree of automation: can be linked with conveyor, crusher and other equipment to form a production line.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 5-20 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 800 | |
| Trommel length (mm) | 1800 | |
| Screening area approximately (m²) | ≈3.14 | |
| Wire screens | interchangeable | |
| Angle iron spacing (mm) | 44 (customizable) | |
| Feeding hopper | Feed hopper length (mm) | 800 |
| Feed hopper width (mm) | 500 | |
| Volume (m³) | ≈0.13 | |
| Transportation dimensions | Transportation status length (mm) | 2600 |
| Transportation status width (mm) | 1040 | |
| Transportation status height (mm) | 1430 | |
| Weight (kg) | ≈750 | |
Large-Capacity Hopper: 1 m³ (1.31 yd³) hopper with optional extensions for faster loading and greater efficiency.
High-Stockpile Radial Conveyor: Achieves up to 4.5 m (14' 9") stockpile height, reducing handling time and boosting productivity.
Self-Cleaning Brush System: Ground-level adjustable brushes keep the tumbler clean and swing away for quick drum changes.
Heavy-Duty Wheeled Mobility: Dual single axles ensure stable transport and easy relocation between sites.
Versatile Tumbler Drum: 5' x 12' steel drum with multiple drum and screen options to suit various firewood sizes.
Built for Efficiency: Designed to streamline firewood cleaning, sorting, and handling for maximum output.
Latest Price List/Free Customized Solution/Maintenance & Installation Guide
Customize different models according to your needs (Small, medium, and large machine).
We have three production bases, guarantee 100% factory price of all products, and support export to all over the world.
We have professional customer service staff, ready to answer your questions about our products.
We are there for you
Do you have any questions about our screening plants or would you like to arrange a demo appointment? You can reach us via our service number, via the contact form or you can send us an email to.
