Price: $29,200-30,750 Limited Time Offer: 8% OFF!
Lead Time: Approximately 20 business days
Capacity: up to 40-100 m³/h (50-140 yd³/h)
Diesel or Electric Power
Screen Aperture: 2-120 mm (0.08-4.75 in, Custom drum)
Weight: approx. 9000 kg (19,800 lbs)
Comprehensive 1-year global warranty & lifetime online technical support.
Processed materials: Sand, Palm Trees, Compost, Municipal Waste, Wood, Woodchip, Topsoil, Soil, Gravel, Rock

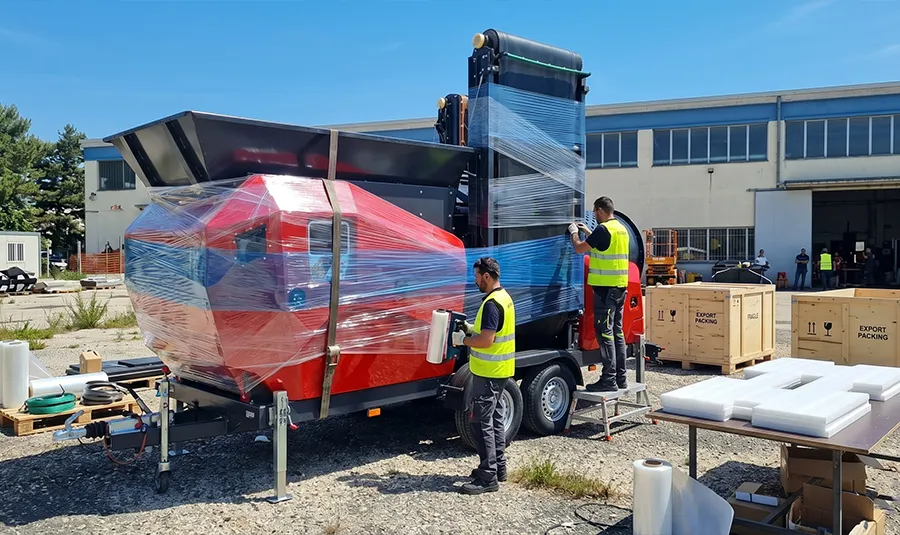

Factory Direct Shipping to Oceania, EU, and the US, Globally
Very Compact with High Performance — Low Loading Height and Easily Towable for On-Site Material Separation.

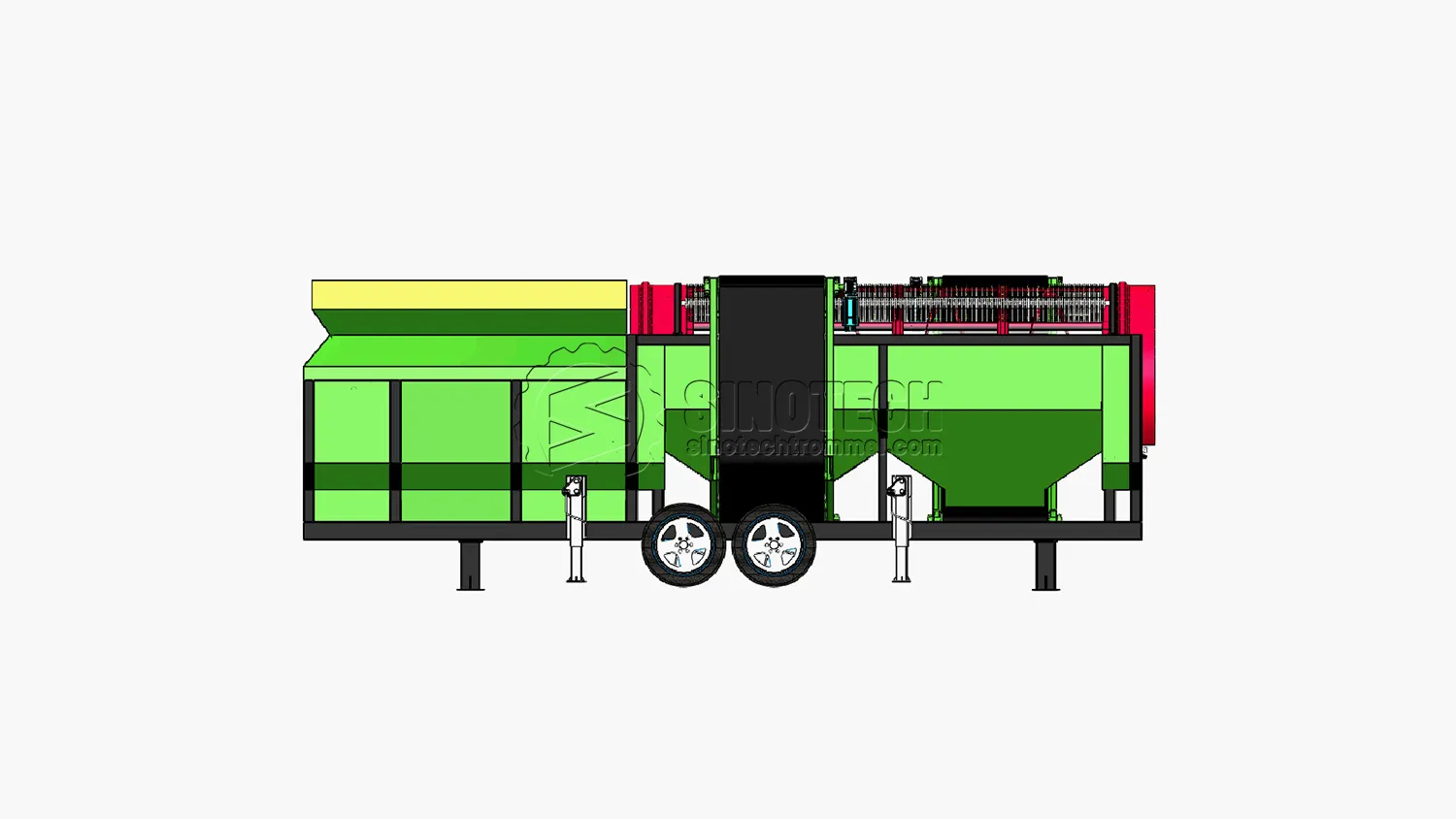

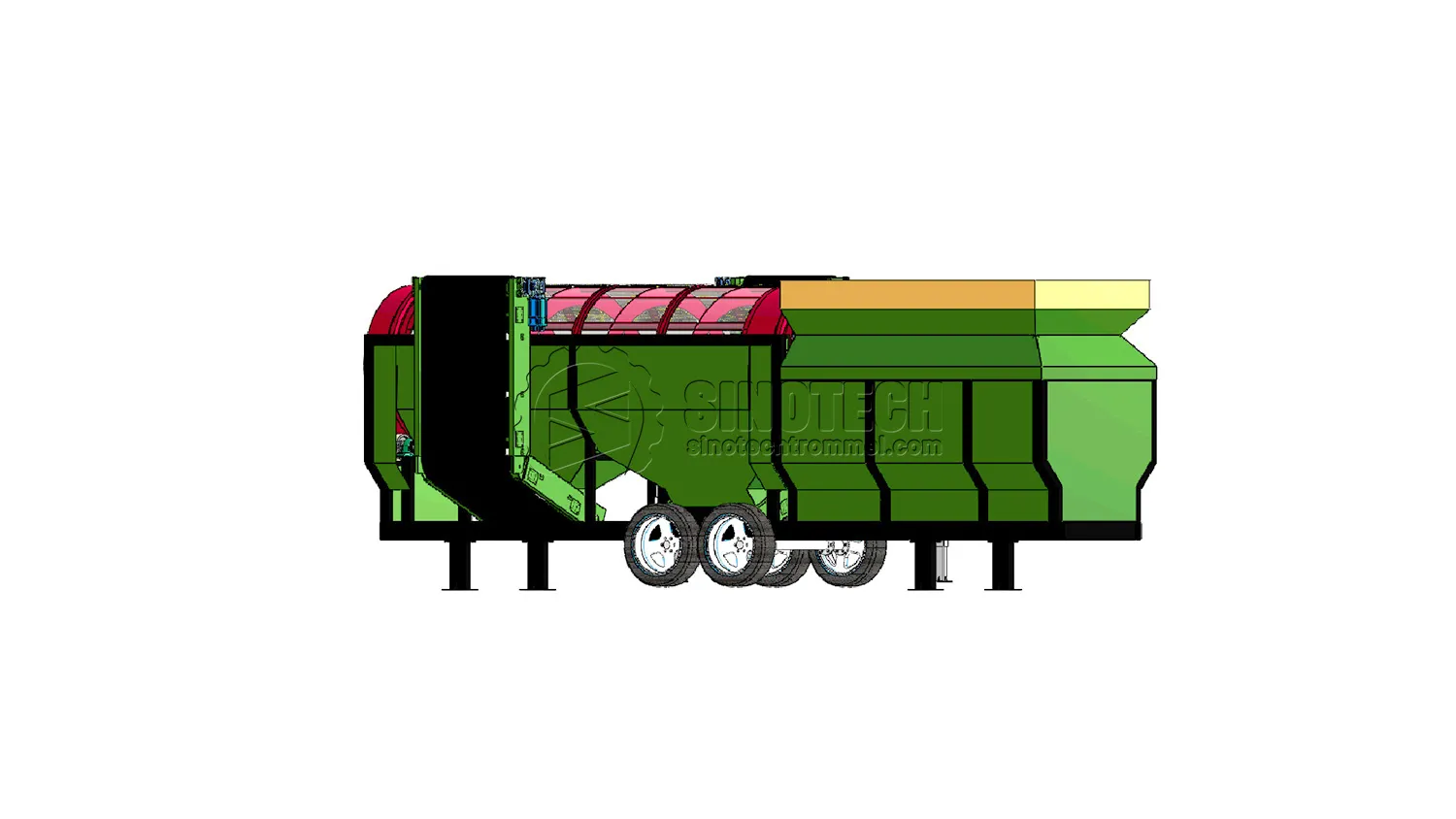

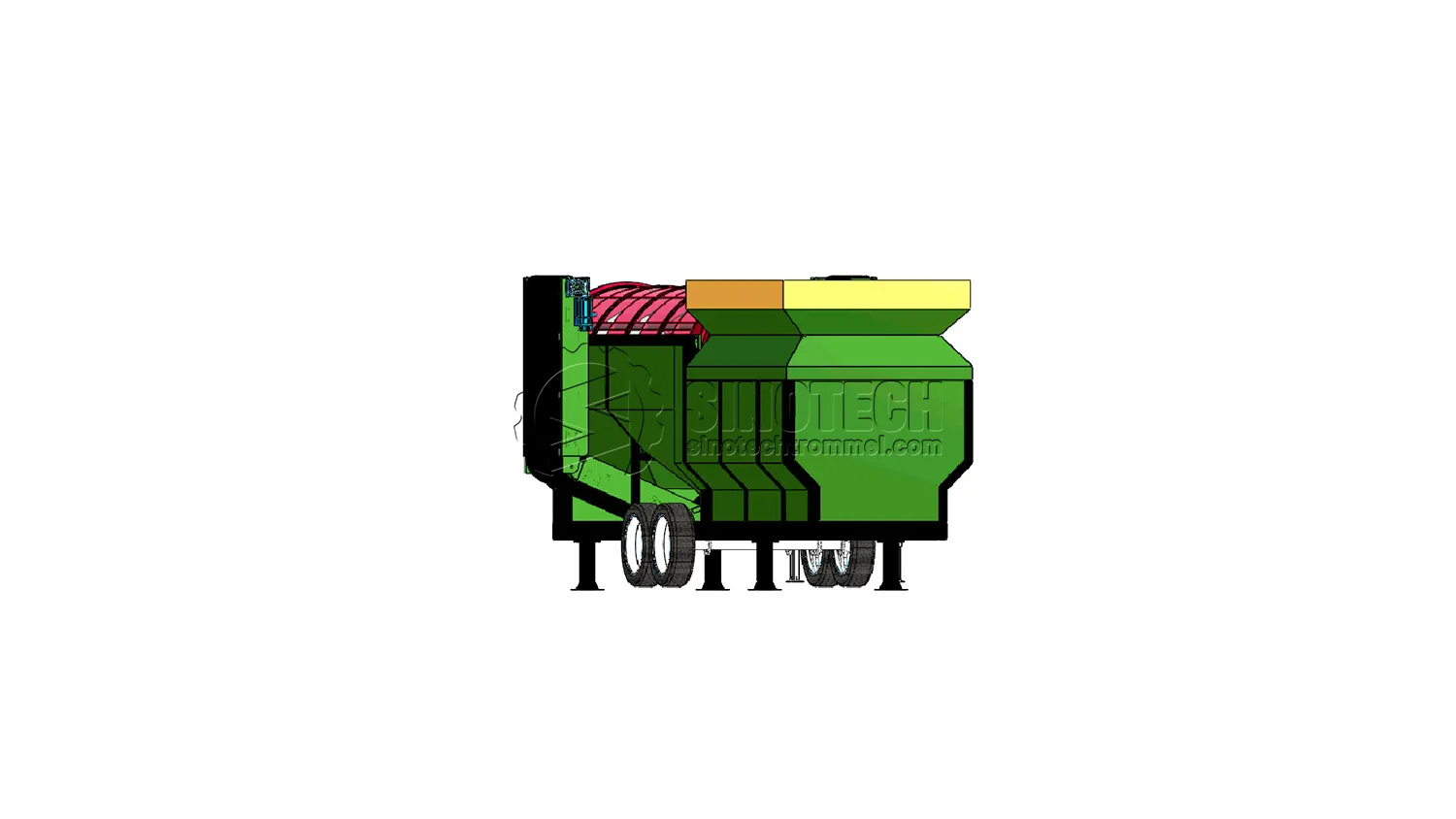

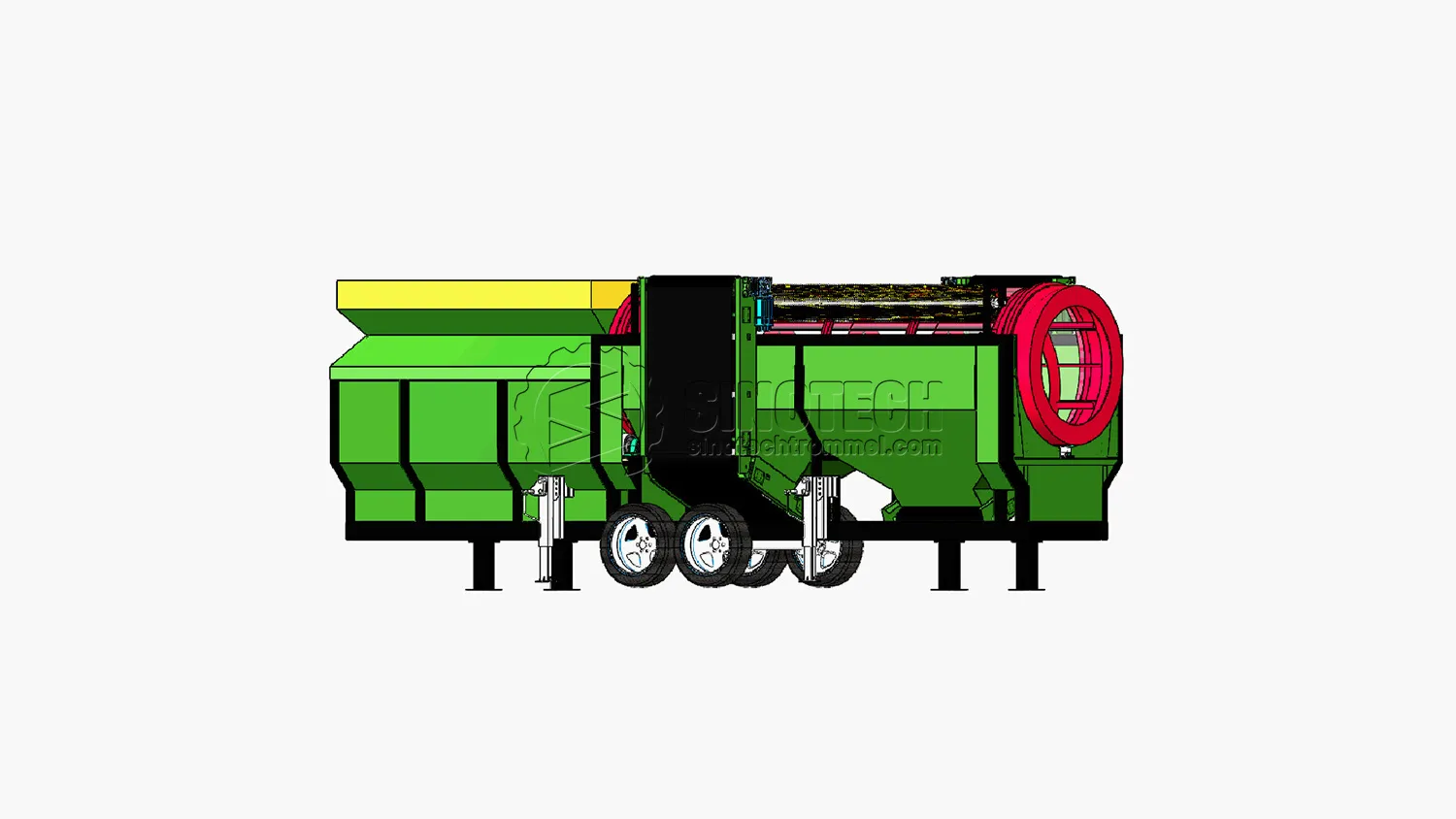

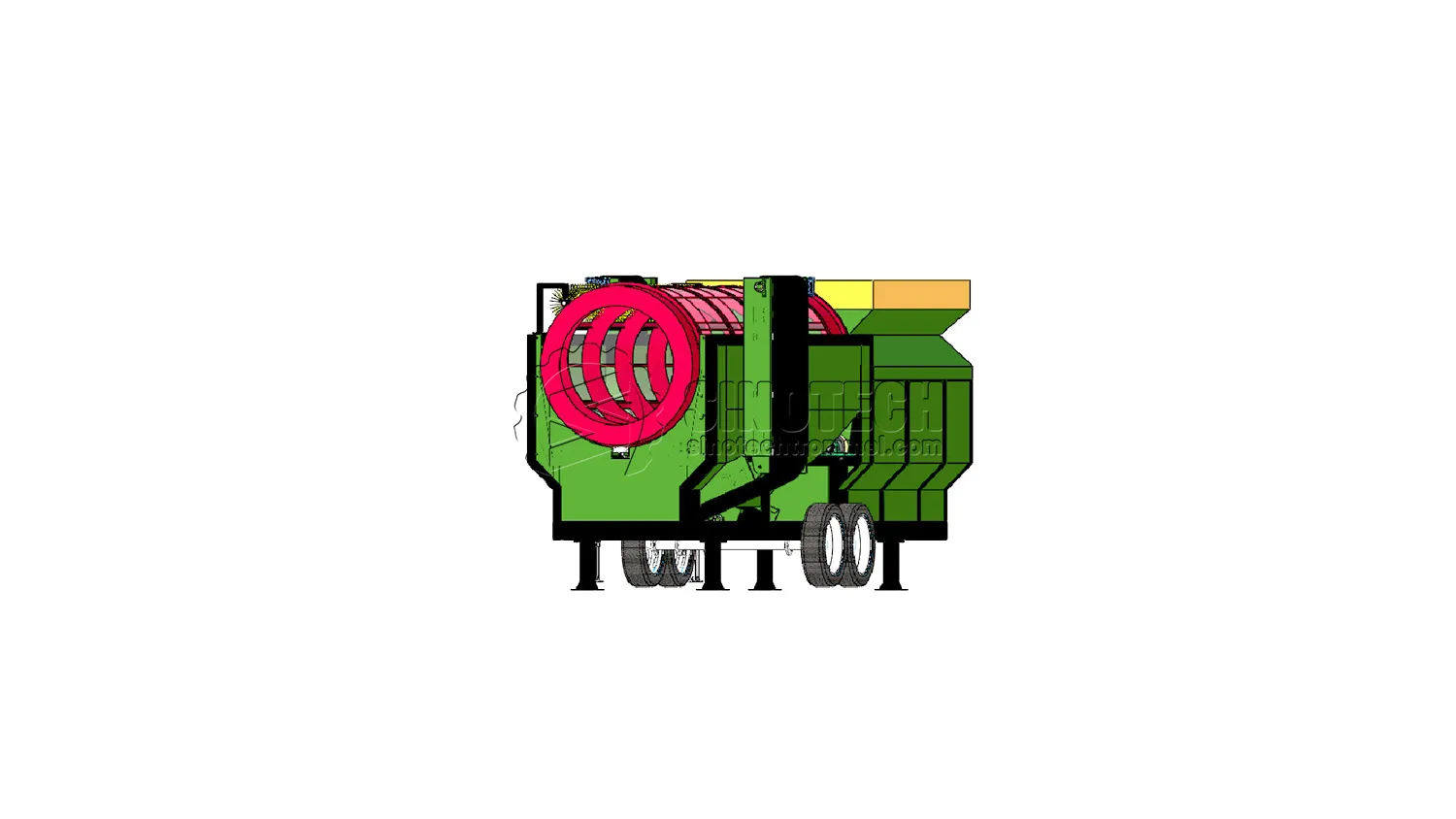

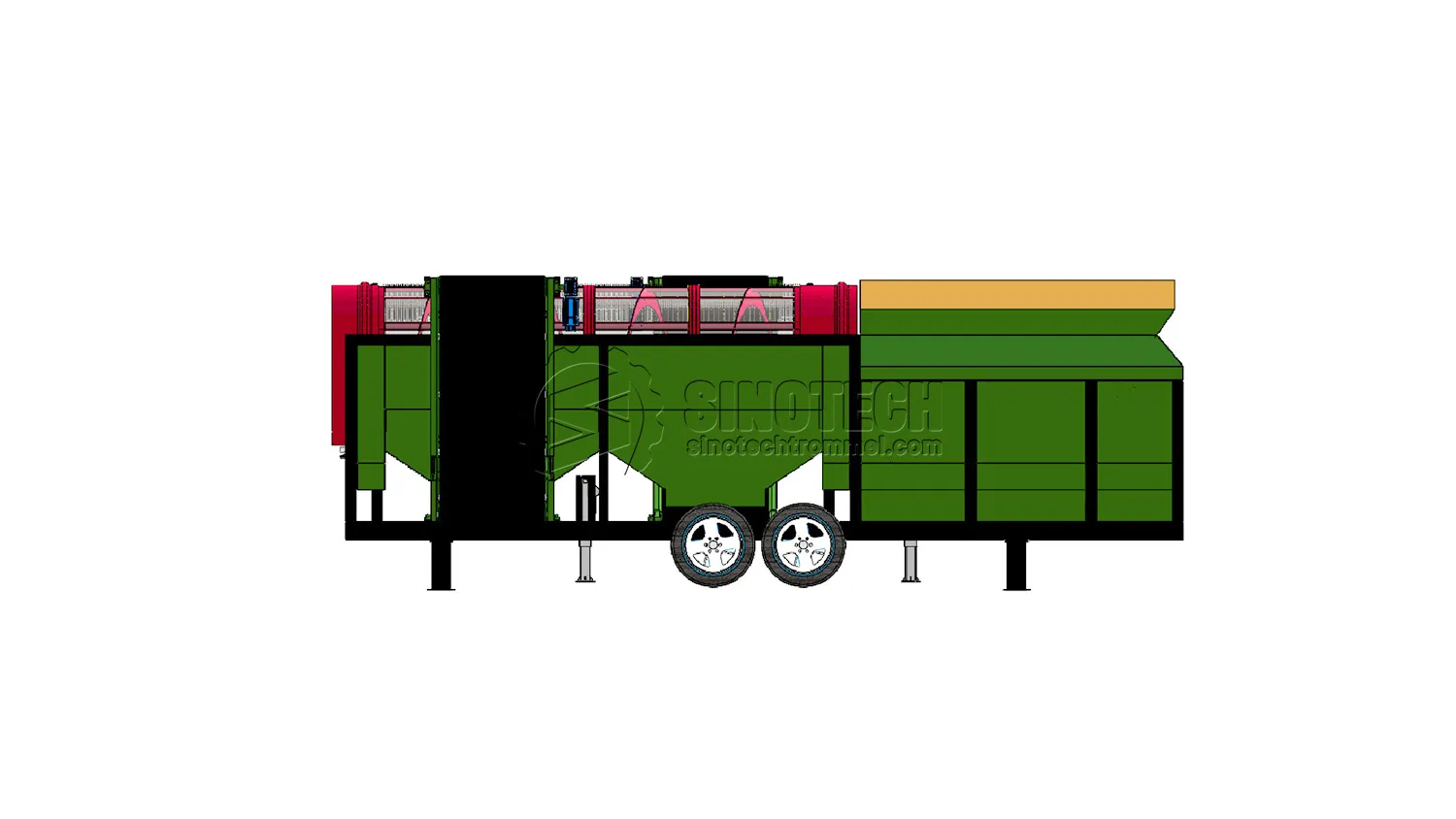

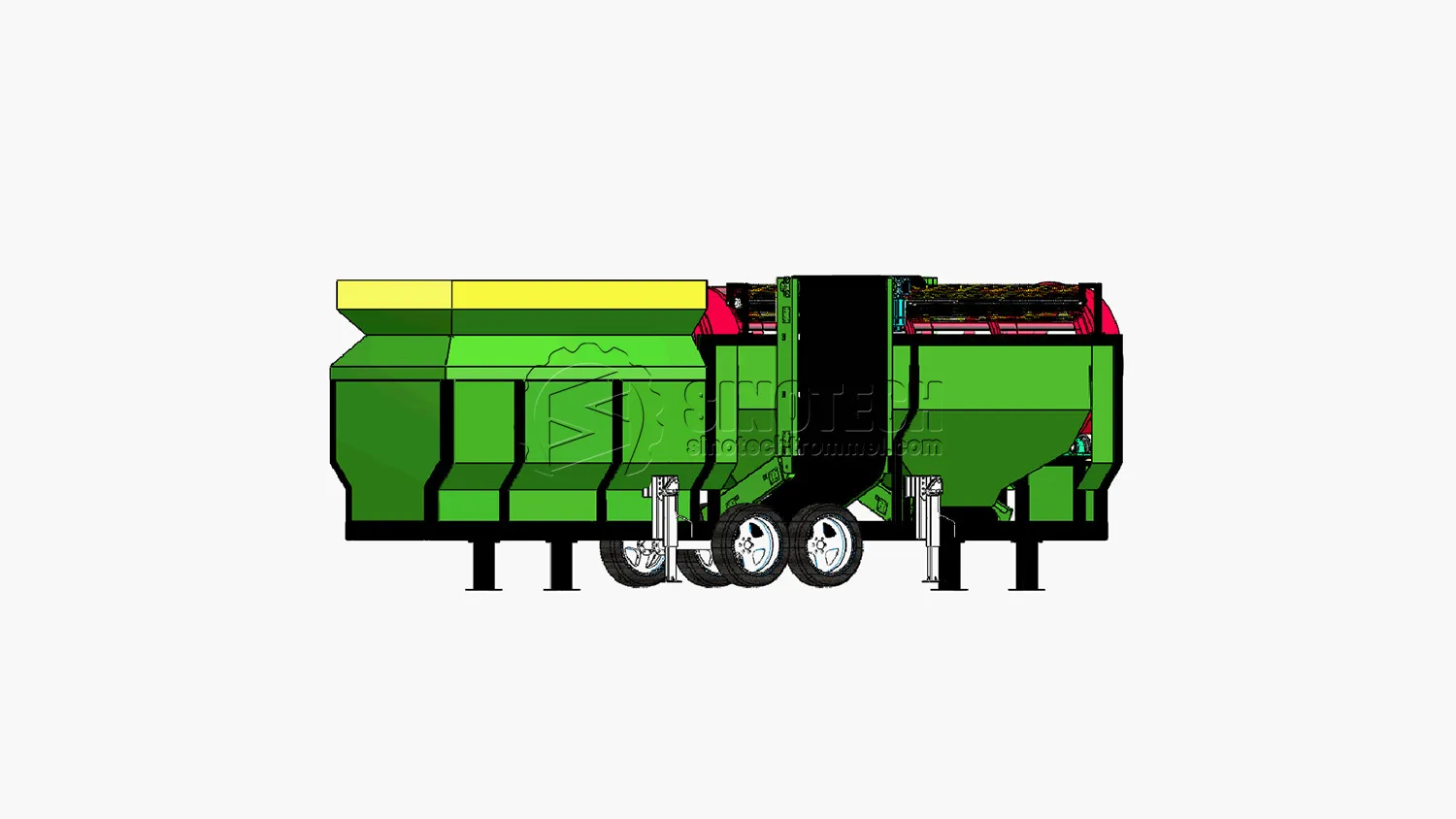

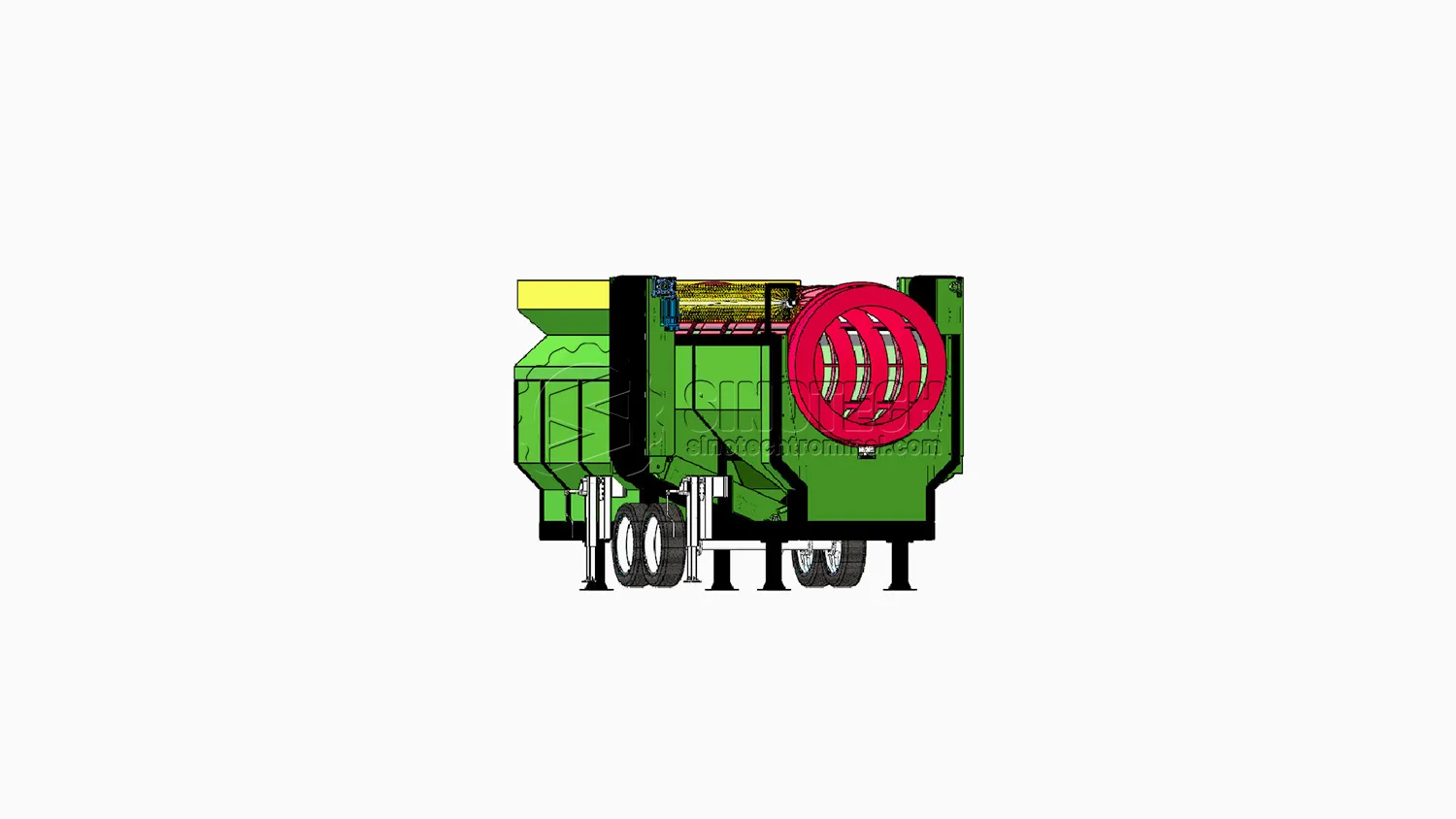

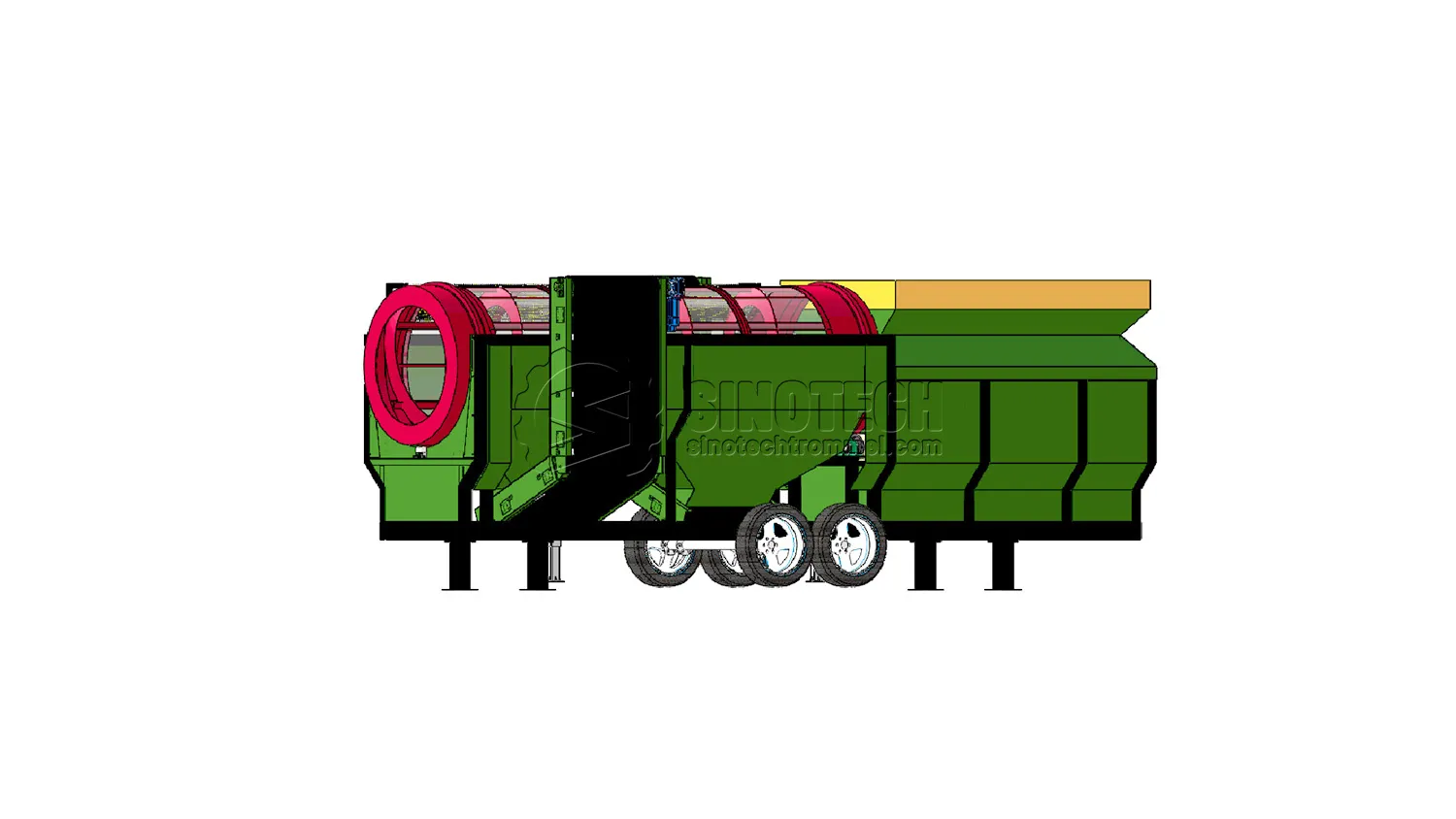

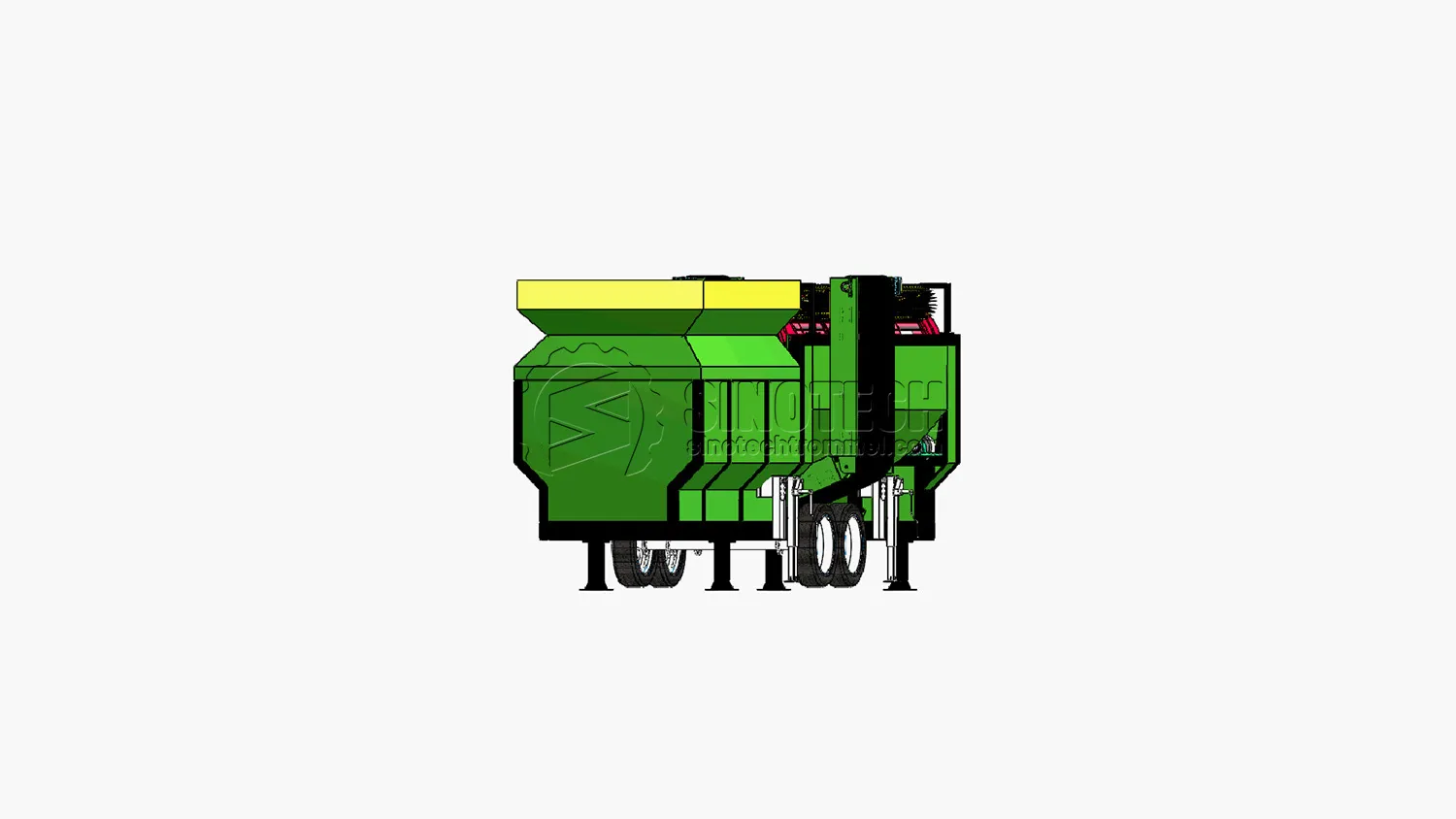

The WTS1550 Mobile Trommel Screen is an incredibly versatile solution built to handle everything from landscaping projects to tight-access construction sites. Featuring a low profile and low loading height, this machine is perfect for processing topsoil, compost, sand, and gravel. Engineered to maximize your efficiency, the WTS1550 can simultaneously sort up to 3 different fractions, providing clean, sorted material ready for immediate resale or reuse.
Designed with true portability in mind, the WTS1550 boasts a perfectly balanced weight, allowing it to be easily towed by a standard vehicle with a 3,500 kg towing capacity. As a premium product from SINOTECH, it retains our signature hardened gear reducer for smooth, low-noise operation and a quick-change screen design for easy maintenance. It is the ultimate highly compact screener for contractors on the move.
The Trommel Screen works by combining drum rotation and gravity. Raw materials enter via the feed inlet, and the motor drives the drum to rotate stably through the reducer.
As it rotates, materials tumble and slide on the screen: particles smaller than the aperture pass through and exit from the bottom, while oversized ones are discharged from the end.
| Technical data | ||
| Production capacity (m³/h) | (depending on material) 40-100 m³/h | |
| Trommel | Single and double trommel customization | |
| Trommel diameter (mm) | 1500 | |
| Trommel length (mm) | 5000 | |
| Screening area approximately (m²) | ≈22.5 | |
| Wire screens | interchangeable | |
| Outer meshes from (mm) | 2 - 80 | |
| Feeding hopper | Feed hopper length (mm) | 3000 |
| Feed hopper width (mm) | 1870 | |
| Volume (m³) | ≈3.56 | |
| Transportation dimensions | Transportation status length (mm) | 9110 |
| Transportation status width (mm) | 2270 | |
| Transportation status height (mm) | 2540 | |
| Weight (kg) | ≈9600 | |
Low-Profile Loading Hopper: Designed with a low loading height, allowing for easy and fast feeding with compact loaders, skid steers, or tractors, perfect for tight-access landscaping operations.
3-Fraction Sorting System: Highly efficient design capable of sorting up to 3 different material fractions simultaneously, maximizing the value of your compost, soil, and aggregate processing on-site.

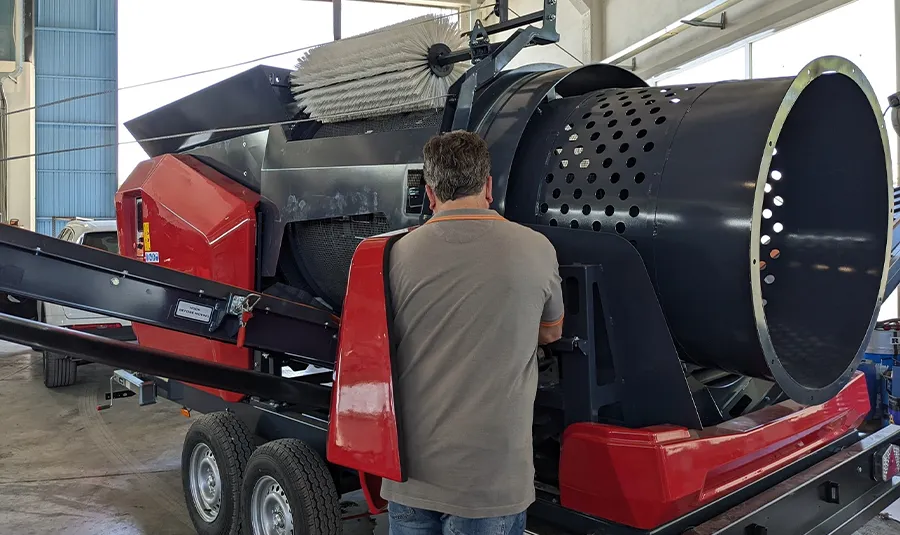

Self-Cleaning Brush System: Ground-level adjustable brushes keep the drum screen clean during operation, preventing clogging even when processing wet compost or sticky topsoil.

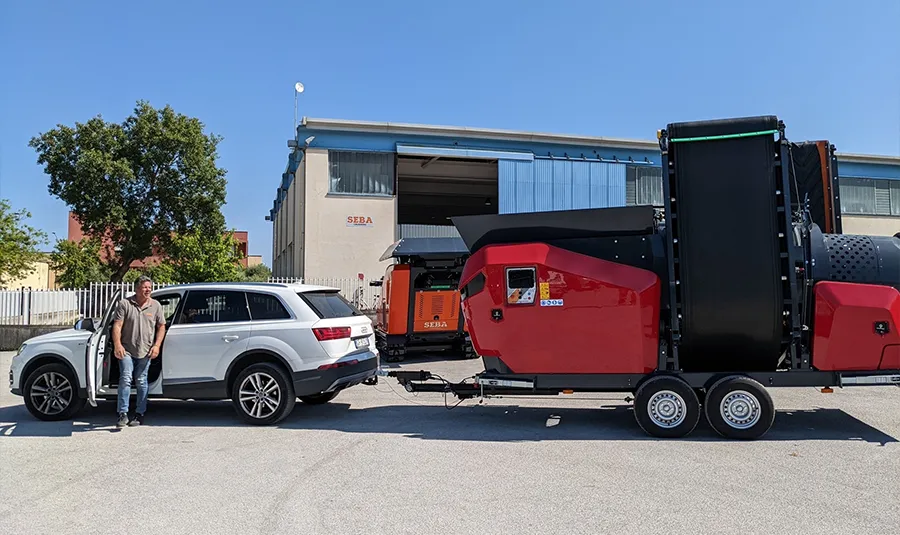

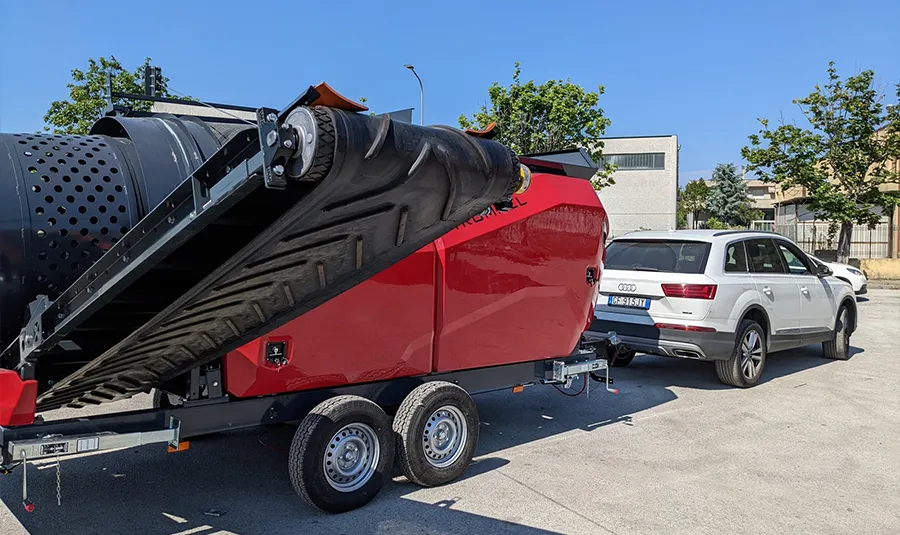

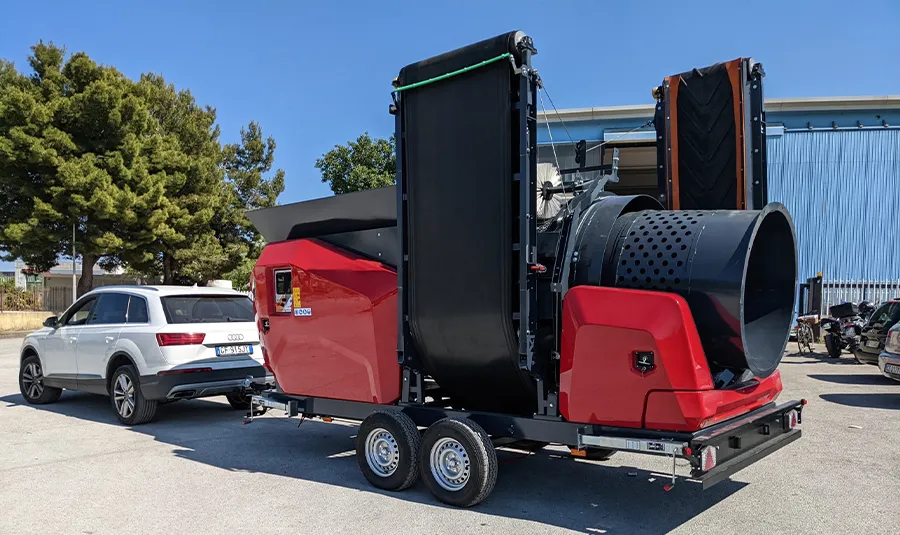

Ultimate Towable Mobility: Perfectly balanced and highly compact, this portable trommel screen can be effortlessly towed between job sites by a standard vehicle with a 3,500 kg towing capacity.

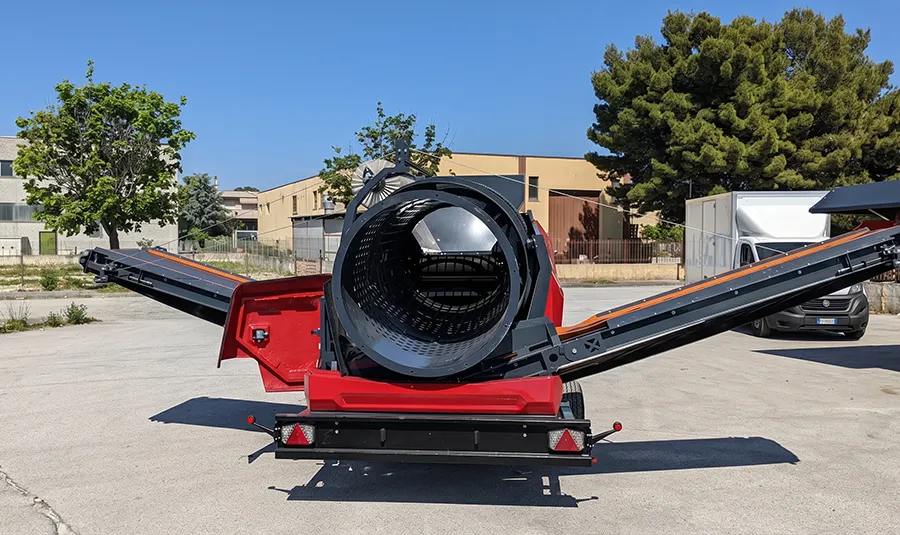

Versatile Screening Drum: Durable steel drum engineered for quick mesh changes, allowing you to easily switch between processing topsoil, wood chips, sand, and light construction debris.
Compact Yet Powerful: Engineered to deliver big machine performance in a small footprint, ensuring high throughput and minimal downtime for contractors, landscapers, and recycling projects.
